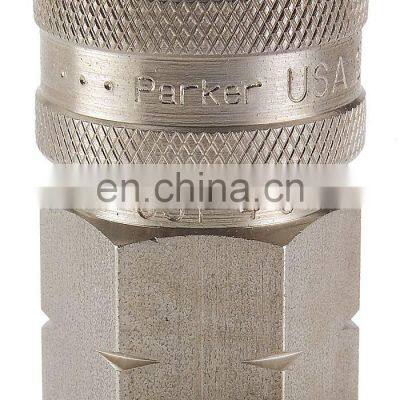

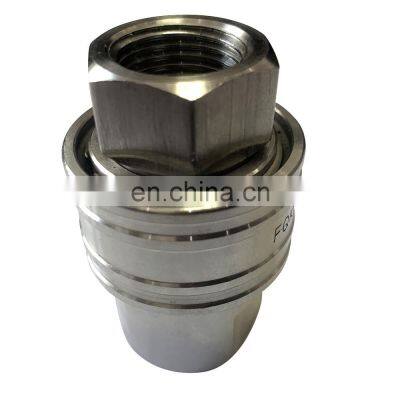

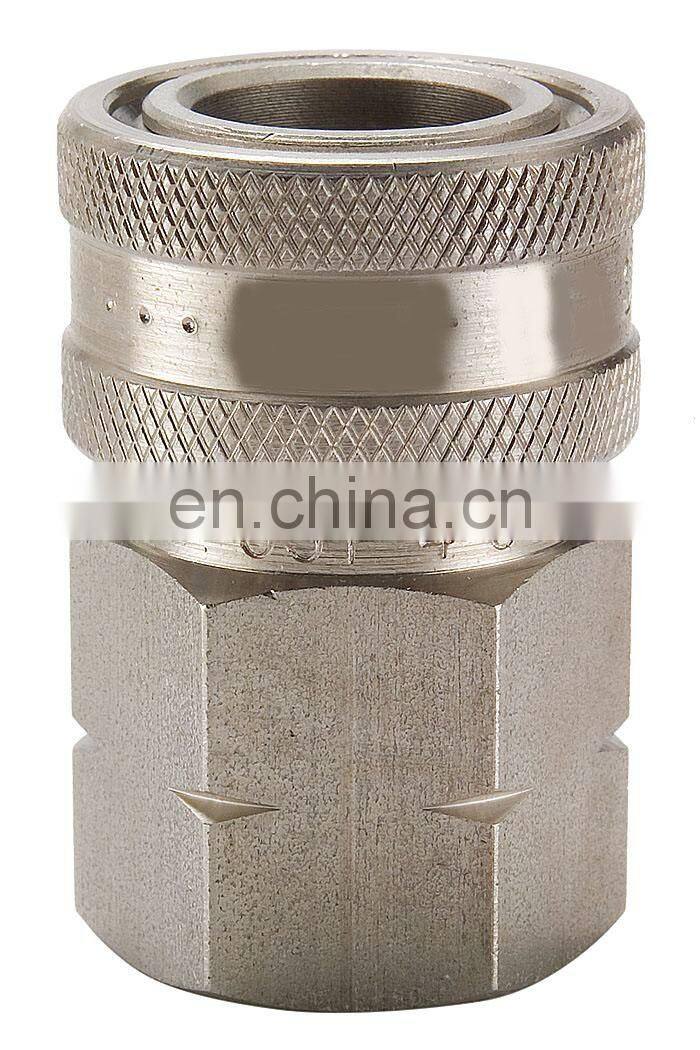

Hot Sale High Flow Non-valve 3/8 Inch Brass ST Hydraulic Quick Coupler for High Pressure Washer Machine
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1/4 Inch Ag ISO 5675 Hydraulic Quick Connect Coupler Set 3/8\" SAE (9/16\"-18 ORB) Thread
-
Leak-Free Hydraulic Couplers for Tractors AG Quick Connect Hydraulic Coupler
-
AG Quick Connect Hydraulic Coupler ISO5675 Series Agricultural Ball Type Hydraulic Quick Coupling
-
Test Port and Diagnostic Equipment Quick Coupler PD Series Test Nipples
-
Diagnostic Hydraulic Couplings Test Port and Diagnostic Equipment Quick Coupler
-
PD Series Test Nipples ISO 15171-1 Diagnostic Quick Couplers and Test Point Nipples
Product Description
Product Description
This series is non-valved couplings which provide maximum flow and low pressure drop. The somooth, open bore offers the lowest pressure drop of any quick coupling design and is ideal for applications such as high-pressure water and steamwashers, carpet cleaners and mold coolant lines and many other non-valved applications.
Features and Materials
Materials:
1. Body: 304 Stainless steel
2.Seal: Pure teflon
3.Wide Variety of Materials Available, we can design and change the materials according to Customer’s usage.
Features:

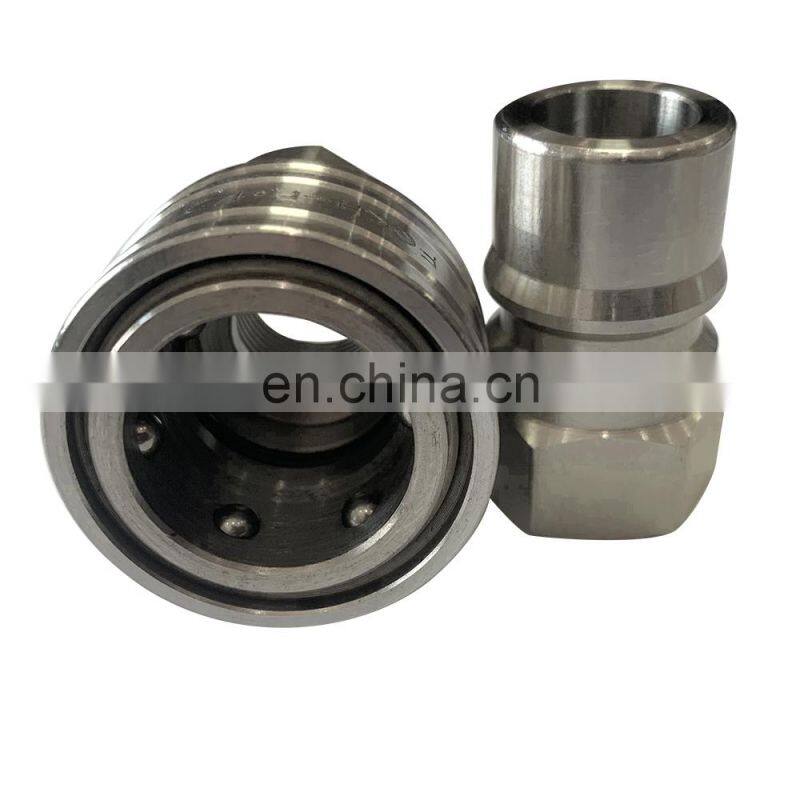

1. Both plug and socket are smooth and through-hole without valve designed, which would cause minimal pressure drop. Moreover, this quick coupling is easy to be cleaned up when the same pipe required to transfer different fluid.
2. Steel nipples are case hardened for resistance to Brinelling
3. A variety of body materials, sizes and mounting shapes, type for mounting of blade hose also available.
4. The series is an Interchangeable coupling because no matter dimension or function, it the can interchange the similar couplings
such as Parker ST, Nitto TSP, Hansen ST series .
5. Blade hose can be installed without hose band
6. Dust caps and sleeve-Lok option available

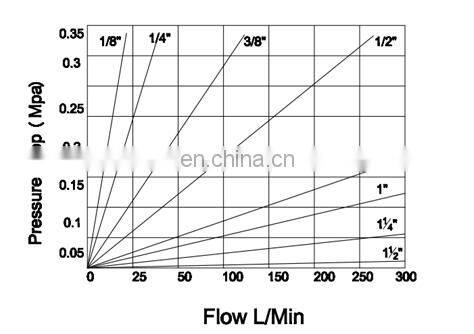

Specifications
Body size(Inch) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/4 | 1-1/2 | |||||||
(Brass) Rate Pressure(Mpa) | 37.5 | 36 | 18.5 | 15 | 12 | 12 | 12 | 9.5 | |||||||
(Steel) Rate Pressure(Mpa) | 38 | 38 | 24 | 18.5 | 18.5 | 14 | 12 | 9.5 | |||||||
(Stainless steel) Rate Pressure(Mpa) | 35 | 30 | 25 | 21 | 21 | 10 | 10 | 8 | |||||||
Rate Flow(L/Min) | 5 | 17 | 50 | 75 | 190 | 270 | 750 | 1600 | |||||||
Temperture Range(NBR) | -25°C to +125 °C | ||||||||||||||
Company Profile
Established in 2004.Our company is a professional manufacturer and exporter that is concerned with the design, development and production of garment. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the nearfuture.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products conforms to the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with PARKER, FASTER, HANSEN,TEMA,CEJN,NITTO,HOLMBURY series and e.t.c..All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the nearfuture.
