Home > Products > Hydraulic Quick Couplings > Stainless Steel ISO7241-B Pipe Fitting Quick Couplings Hose Connector Push-in Type Quick Couplings

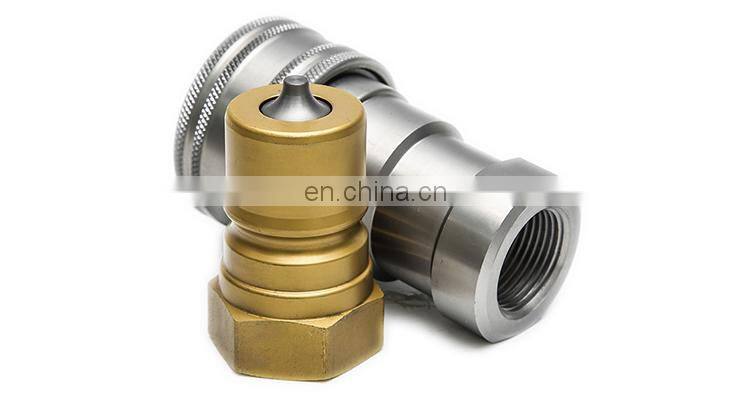

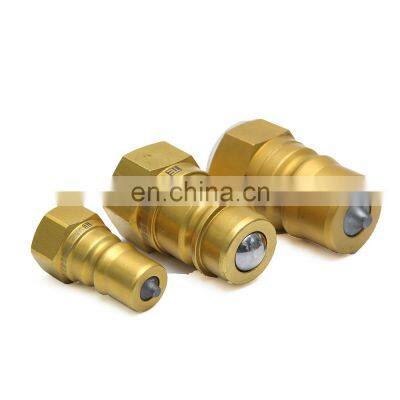

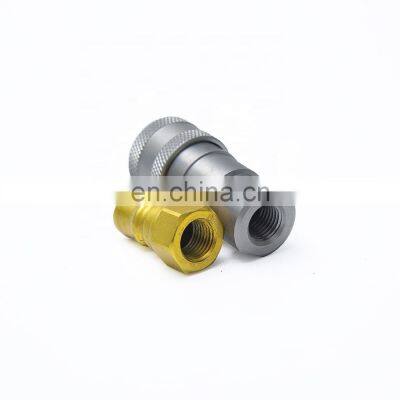

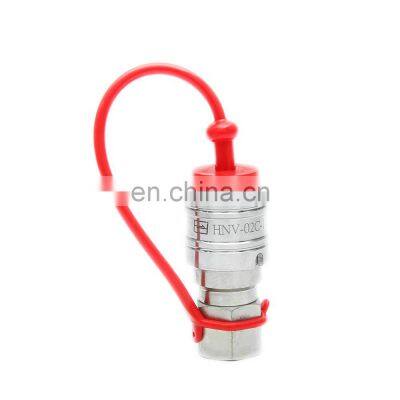

Stainless Steel ISO7241-B Pipe Fitting Quick Couplings Hose Connector Push-in Type Quick Couplings
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Quality Female and Male 3/8 Inch SS 304 ISO 7241-B Hydraulic Hose With Quick Coupling Coupler for Tractor
-
Hot Sale 3/8 Inch 10000 PSI High Pressure Screw Type Hydraulic Quick Coupler for Agricultural Machinery
-
Flat Face Couplings Connectable Under Residual Pressure Flat-face Couplings (ISO 16028) With Pressure Eliminator
-
Flat-face Couplings (ISO 16028) With Pressure Eliminator Non-Spill Couplings Flat Face
-
Skid Steer Hydraulic Quick Connect Coupler Hydraulic Quick Coupler 1/2 Body 90 Degrees Elbow
-
Skid Steer 7246788 Hydraulic Quick Connect Coupler Flat Face Hydraulic Couplers Pair
Product Description
Product Description
Free Fit ISO 7241 B Series of quick disconnect couplers are used on a large spectrum of hydraulic applications with strenuous quality standards such as the aerospace, automotive, electronics industries. They are also recommended for general purpose, machine tools, mobile hydraulics, and other equipment applications. Our Series B couplers are interchangeable with all ISO 7241 B series couplings.

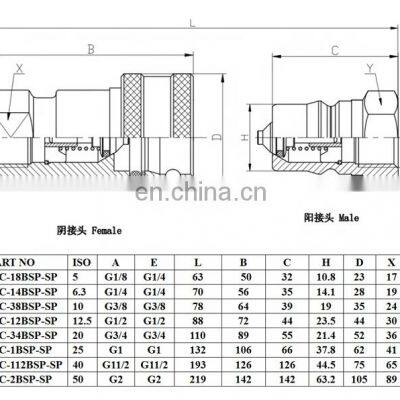

Specifications

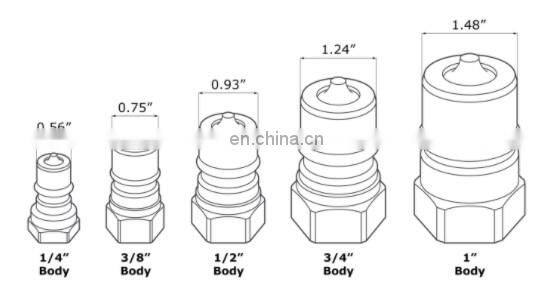

Body size (inch) | 1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1-1/2 | 2 | |||||||
Rated pressure (Mpa) | 50 | 45 | 35 | 35 | 25 | 25 | 14 | 9 | |||||||
Rated flow (L/min) | 5 | 17 | 50 | 75 | 190 | 270 | 750 | 1600 | |||||||
Temperature range | -25℃ to +125℃ | ||||||||||||||
Features:
1. Globally interchangeable with other manufacturer's quick couplings complying to ISO 7241-1 series B
2. Steel nipple body is hardened for durability
Interchangeable with:
Parker 60/Faster HNV/Aeroquip FD45/Hansen HK/Foster HX-S/Cejn X75/ Safeway S10/Nitto SP/Snap Tite 72/Dixon H/Tomco THK/Stucchi IRB
Applications:

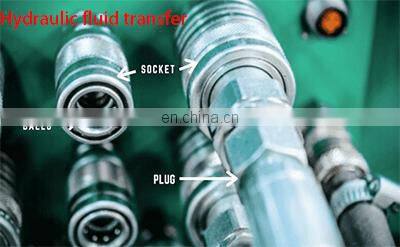

1. Hydraulic fluid transfer

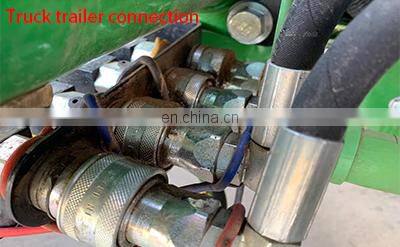

2. Truck trailer connections
3. Mobile applications

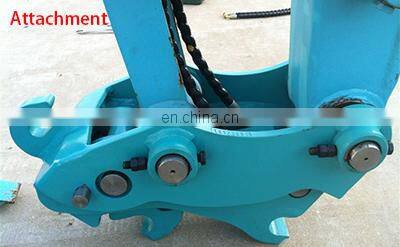

4. Attachments
Application
Why Choose Us
Recommend Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
