Home > Products > Hydraulic Quick Couplings > Flat Face Hydraulic Quick Connect Coupler 90 Degree Flat Face Hydraulic Quick Connect Coupler 7246788
Flat Face Hydraulic Quick Connect Coupler 90 Degree Flat Face Hydraulic Quick Connect Coupler 7246788
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1/2'' JIC 7246788 Flat Face Hydraulic Quick Coupler 1/2 Body 90 Degree Elbow Flush Face Quick Coupler
-
7246788 Hydraulic Quick Disconnect Flat Face 1/2\" JIC Quick Release Coupling SET Jic Hose Fittings
-
Flat Face Coupling Suitable for Construction Equipment 7246777 Replacement Coupler Connect Under Pressure
-
7246777 1/2'' Male Flat Face Hydraulic Quick Coupler for CASE Skid Steer Loader Construction Machinery Parts
-
7246790 Replacement Hydraulic Female Flat Face Quick Coupler ISO 16028 Flat Face Quick Coupler
-
High Quality Factory Direct Supply 1/2 Inch ISO 7241-A ANV Tractor Coupler Hydraulic Coupling for Tractor
Product Description
Product Description

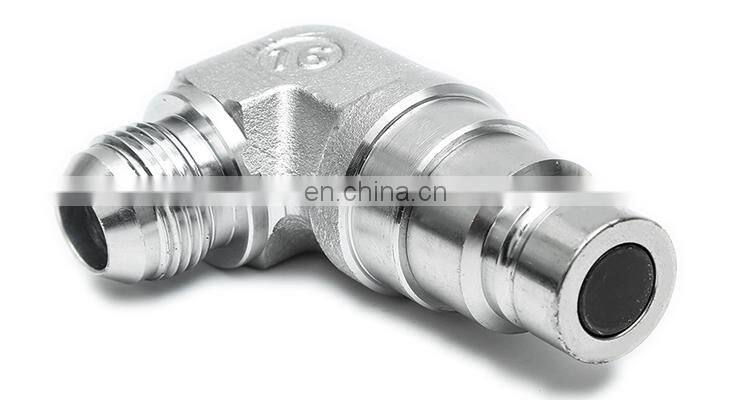

Free Fit ISO 16028 flat face 90 degree hydraulic quick connect coupler set, Convenient connection of curved pipe. Only with 1/2 inch body size, but have 9/16 and 1-1/16 inch JIC thread for choose. This model mainly used for various construction machinery such as skid steer loaders. Working pressure with 20mpa, 25mpa, 30mpa, and 35mpa.
Specifications
Main technical datas | ||||||||
Working pressure | 5076 PSI | |||||||
Rated flow | 12 GPM | |||||||
Seals | Buna-N Seals with Teflon backup ring can operate up to 250° F | |||||||
Female Face Diameter | 1.50 inch (38mm) | |||||||
Male Face Diameter | 0.94 inch (24.5mm) | |||||||
Female Length | 3.39 inch (86mm) | |||||||
Male Length | 3.7 inch (94mm) | |||||||
Hex | 1.42 inch (36mm) | |||||||
Advantages:
1. 90 Degree connection angle prevents damage to hydraulic lines
2. Design allows for easy low profile mounting without the need for additional fittings
3. Ideal for adding Grapple on Skid Steer or on boom arm of an excavator
4. Flush face valve design minimizes fluid loss and air inclusion
5. Locking sleeve to prevent accidental disconnection
6. Zinc-nickel plating provides superior corrosion resistance
7. Hardened steel construction with hardened sleeves
8. Allows for minimal pressure drops
9. Easy single-handed push-connect design
10. Nipple seal resists blow-outs
11. Interchangeable with other ISO 16028 standard couplings
Interchangeable With:
SUMMIT FF12F-06J-90/ Faster FFH08-61/38SAE F/Holmbury H12-F-06JM90/Earthforce 7246782EF

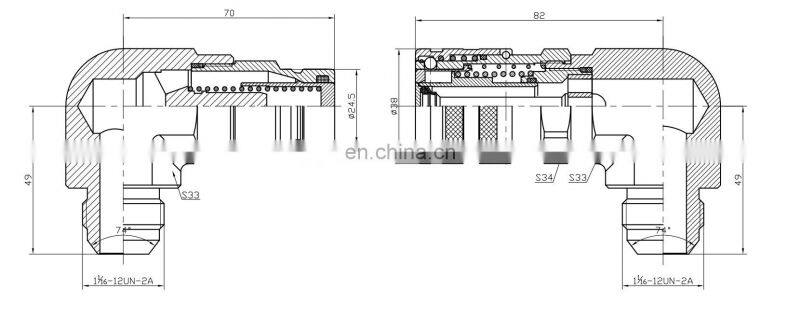

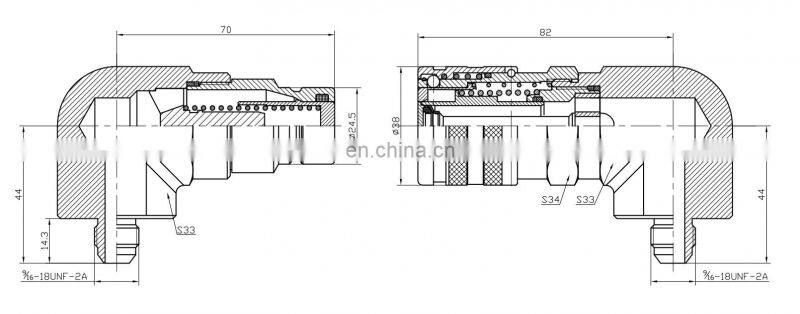

Drawings
Why Choose Us
Company Profile
Factory
Workshop

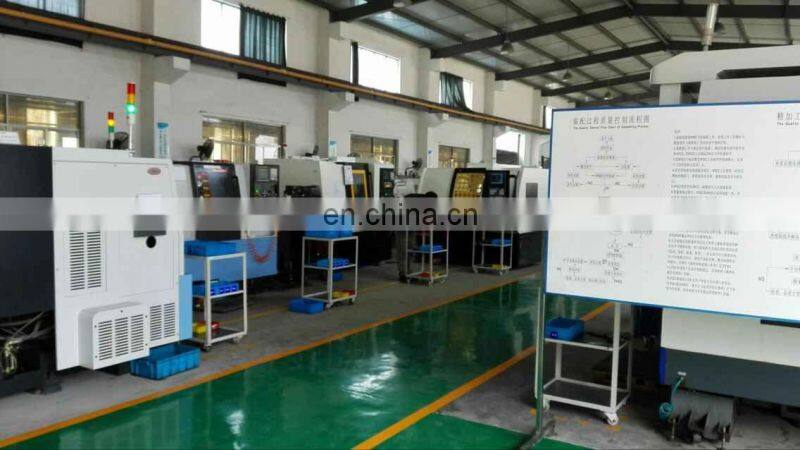

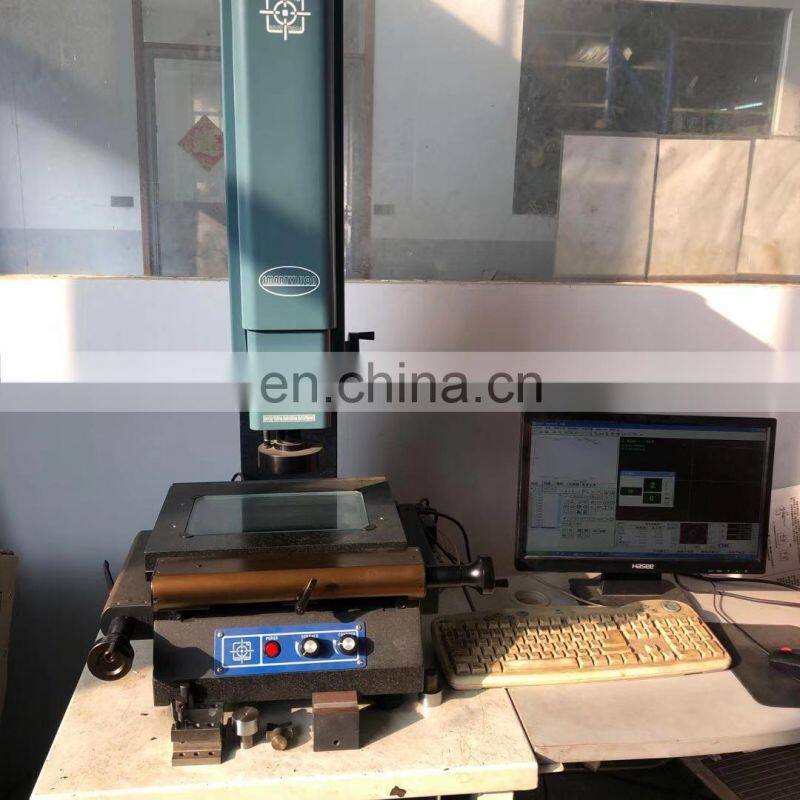

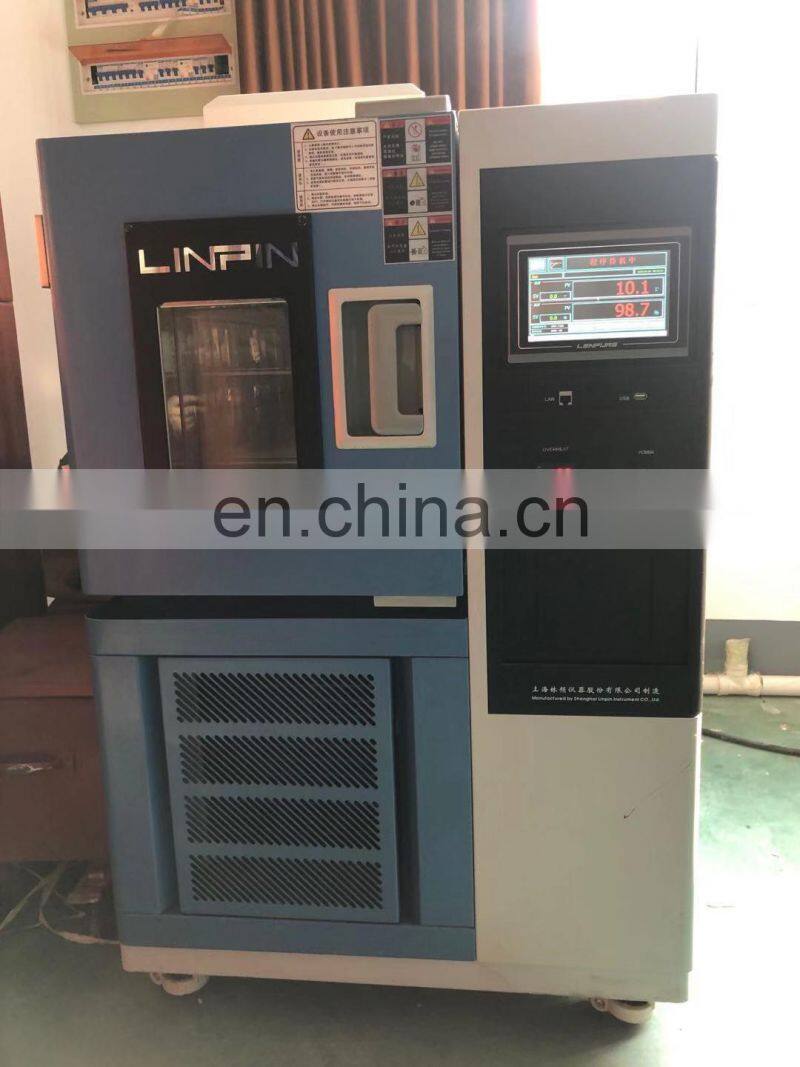

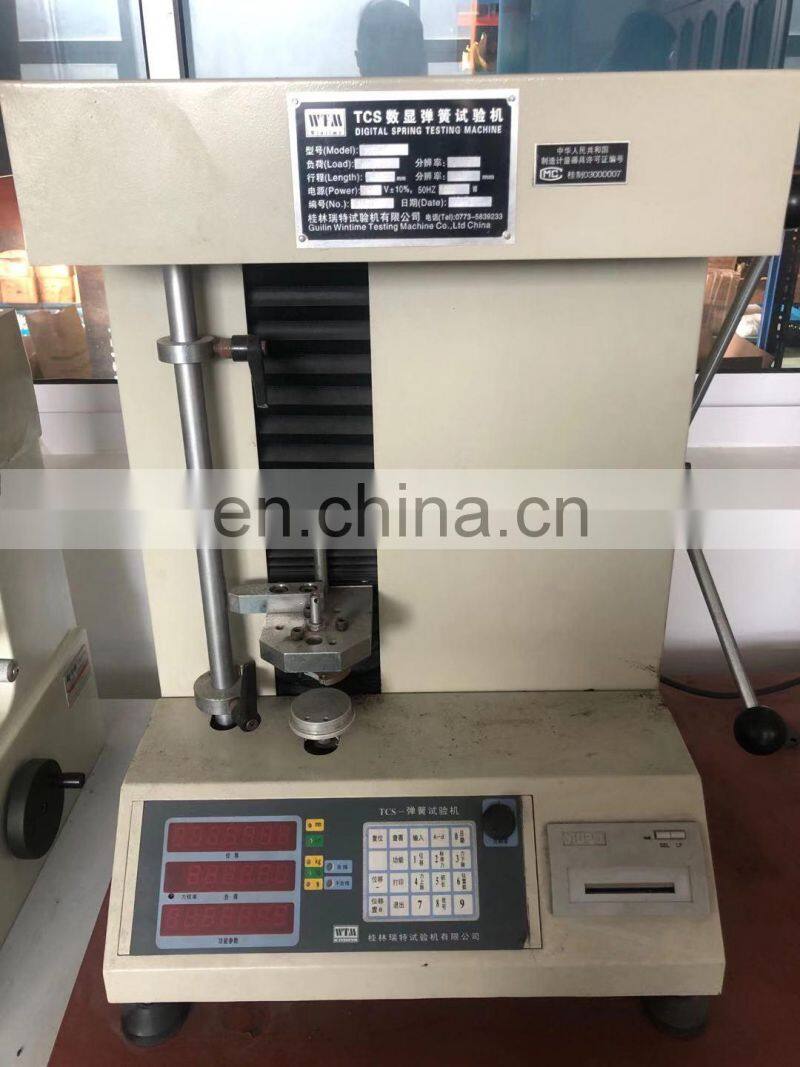

Manufacturing equipment
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
