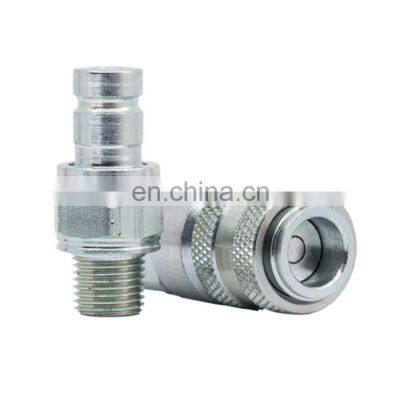

ISO 15171-1 Diagnostic Quick Couplers and Test Point Nipples Diagnostic Hydraulic Couplings
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
High Pressure no Leak 1/2 Inch ISO 16028 Flat Face Type Hydraulic Quick Coupling for Skid Steer Loader
-
Close Type Hydraulic Quick Release Coupling Double Self-sealing Stainless Steel High Pressure Quick Connector
-
ISO7241-B KZF Close Type Quick Disconnect Coupler Self-locking Kzf Open and Close Hydraulic Quick Connector
-
Double Self-sealing Stainless Steel High Pressure Quick Connector KZF Double Close Type Quick Connect Coupler
-
KZF Double Close Type Quick Connect Coupler ISO7241-B KZF Close Type Quick Disconnect Coupler
-
Self-locking Kzf Open and Close Hydraulic Quick Connector Close Type Stainless Steel 304 Hydraulic Quick Release Coupling
Product Description
Product Description
Free Fit DF Series diagnostic couplings provide easy connections for mechanical gauges or specialized diagnostic equipment. Typically, PD nipples are permanently mounted in the system at threaded test ports, in rigid tubing, or in hose assemblies. The PD nipple is used in conjunction with the PD Series test coupler. Couplers align to the mating nipples without threading. The fittings are rated up to 6000 PSI (414 Bar) depending on configuration and size. This allows gauges, transducers, and other test equipment to
be snapped into place without difficulty. The design makes connecting to a DF Series test coupler, safe, effortless, and spill-free!
be snapped into place without difficulty. The design makes connecting to a DF Series test coupler, safe, effortless, and spill-free!
Specifications
Body size (inch) | 1/4 |
Rated pressure (Mpa) | 47 |
Rated flow (L/Min) | 5 |
Temperature range(NBR) | -25℃ to +125℃ |
Features
1. Flush-face poppet valves minimize air inclusion and spillage, provide easy-to-clean surfaces, and help to prevent contamination.
2. Nipples are machined from high tensile steel for strength to withstand 6000 PSI continuous operating pressure.
3. PD nipples are designed to meet or exceed SAE J1502 and ISO 15171-1 design and performance specifications.
4. End connections include pipe, O-ring, metric thread, bulkhead, 37° Flare, ORFS, and bite-type.
Application
Why Choose Us
Related Products
Company Profile
Jindong Hydraulic is National High-Tech Enterprise and the fixed enterprise of hydraulic basic parts of National Electrical and Mechanical Department, our company established in 2004. we are professional manufacturer and exporter that is concerned with the design, development and production of hydraulic parts. Specially for hydraulic and pneumatic quick couplings and hydraulic valves, hydraulic hose and fitting adaptor. We are located in private industrial park of Jianhu County, Jiangsu Province, China, with convenient transportation access.
We have our own design and R&D team for 16 years. We can tailor products to the requirement of our customers worldwide. We have a full range of perfect from raw materials to the finished product quality testing system. Our products fit the standard of ISO7241-1A, ISO7241-1B, ISO5675, ISO16028. Also, our products can interchange with brand PARKER, FASTER, HANSEN, TEMA, CEJN, NITTO, HOLMBURY, STAUBLI. We have passed ISO9001-2016 certification. All of our products have the CE and TUV certificates.
Our company regard ‘Customer satisfaction, our pursuit’ as our tenet. If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future.
