KODI LPG Series Model Protein Powder Centrifugal Atomizer Spray Dryer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KODI CE ISO LPG Series Blood Spray Dryer Blood Powder Spray Drying Machine
-
CT/CT-C Series Hot Air Circulating Food Industrial Tray Dryer
-
KODI ISO Hot Air Circulating Food Industrial Tray Dryer Price
-
GMP Standard CT/CT-C Series Hot Air Circulating Onion Drying Oven
-
Food Industrial Hot Air Circulating Meat Drying Oven
-
KODI GMP Standard CT/CT-C Series Hot Air Circulating Pasta Drying Oven
Product Description
Product Description

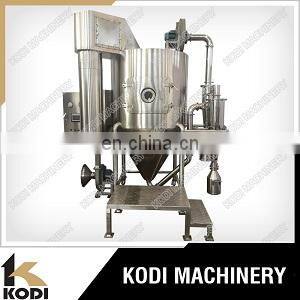

KODI LPG-5 Plus Model Centrifugal Pilot Lab Spray Dryer Machine
KODI LPG food rotary spray dryer machine is widely applied in liquid process shaping and drying industry. It is a special drying equipment that is suitable for producing solid powder or practical products by drying liquid material like emulsion, suspension liquid, mash, liquor and so on. And it is a strong performer in drying polymer and resin; dye and pigment; ceramics, glass; rust remover; vermifuge; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compounds and inorganic compounds.
Working Principle of KODI LPG-5 Plus Model Centrifugal Pilot Lab Spray Dryer Machine
After being filtered and heated, air enter into the air distributor which is at the top of the dryer and then hot air enter into
drying chamber in spiral evenly. At the same time, the feed liquid is rotated, atomized to vaporous droplet and dried into
manufactured products in a very short time by the co-current contact with hot air. The manufactured products are continuously exported from the bottom of the dryer tower and cyclone separator and the waste gas will be discharged by the suction fan after cleaning.

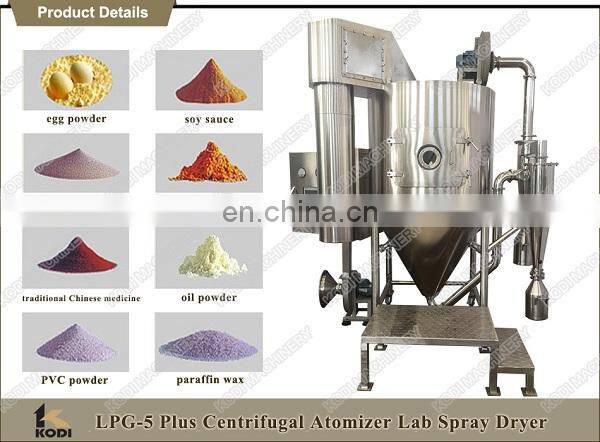

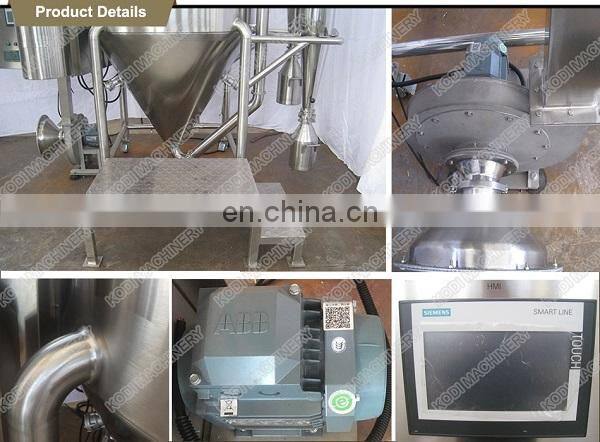

Details of KODI LPG-5 Plus Model Centrifugal Pilot Lab Spray Dryer Machine
KODI LPG food rotary spray dryer machine is widely applied in liquid process shaping and drying industry. It is a special drying equipment that is suitable for producing solid powder or practical products by drying liquid material like emulsion, suspension liquid, mash, liquor and so on. And it is a strong performer in drying polymer and resin; dye and pigment; ceramics, glass; rust remover; vermifuge; carbohydrate, dairy products; detergent and surfactant; fertilizer, organic compounds and inorganic compounds.
Working Principle of KODI LPG-5 Plus Model Centrifugal Pilot Lab Spray Dryer Machine
After being filtered and heated, air enter into the air distributor which is at the top of the dryer and then hot air enter into
drying chamber in spiral evenly. At the same time, the feed liquid is rotated, atomized to vaporous droplet and dried into
manufactured products in a very short time by the co-current contact with hot air. The manufactured products are continuously exported from the bottom of the dryer tower and cyclone separator and the waste gas will be discharged by the suction fan after cleaning.
Details of KODI LPG-5 Plus Model Centrifugal Pilot Lab Spray Dryer Machine
Final Product of KODI LPG-5 Plus Model Centrifugal Pilot Lab Spray Dryer Machine
Specification
Model | Food Spray Dryer Model LPG- | ||||||||||
5 | 25 | 50 | 100 | 150 | 200-5000 | ||||||
Inlet air temperature | <=350℃ | ||||||||||
Outlet air temperature | 80-90℃ | ||||||||||
Evaporate capacity(kg/h) | 5 | 25 | 50 | 100 | 150 | 200-50000 | |||||
Atomizer type | compressed air drive | mechanical drive | |||||||||
Rotary speed | 25000 | 22000 | 21500 | 18000 | 18000 | 15000 | |||||
Diameter of atomizer disc(mm) | 50 | 120 | 120 | 120 | 150 | 180-500 | |||||
Heating source | Electricity | Electricity/LPG/Natural gas/Oil/Steam | Electricity/LPG/Natural gas/Oil/Steam | Electricity/LPG/Natural gas/Oil/Steam | Electricity/LPG/Natural gas/Oil/Steam | Electricity/LPG/Natural gas/Oil/Steam | |||||
Electric-heating power(kw) | 9 | - | - | - | - | - | |||||
Dry powder yield(%) | >=95 | >=95 | >=95 | >=95 | >=95 | >=95 | |||||
Successful Experience Overseas of LPG Centrifugal Atomizer Spray Dryer Machine
LPG china spray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service .
LPG china spray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service .
Packing & Delivery
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedbac
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedbac
* One-stop service, customized exclusive project feasibility report
About KODI
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG China Spray dryer, Food ingredients spray dryer, Industrial spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-sale service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Note
In order to quota you the right LPG China spray dryer / industrial spray dryer with best price, we would like to get the
following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right LPG China spray dryer / industrial spray dryer with best price, we would like to get the
following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
