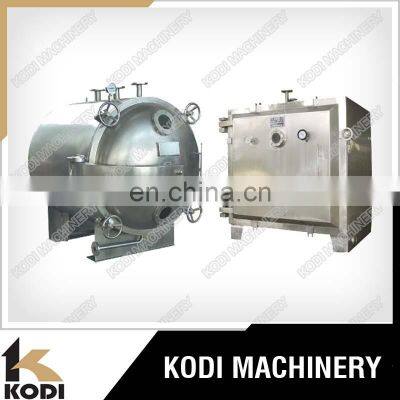

KODI FZG Type Pharmaceutical Vacuum Tray Dryer Vacuum Drying Oven
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KODI YZG/ FZG Model Low Temperature Vacuum Dryer Vacuum Oven Drying
-
KODI FZG Model Food Industrial Square Vacuum Tray Dryer Vacuum Drying Oven
-
KODI YZG/ FZG Model Industrial Cabinet Vegetables Fruit Vacuum Tray Dryer
-
KODI GMP Standard Fruit & Vegetable Industrial Vacuum Tray Dryer Vacuum Drying Oven
-
KODI LPG 10 High Speed Centrifugal Broth Spray Dryer Lab Spray Dryer
-
KODI LPG-5 PLUS Model Cheap Price Lab Spray Dryer Broth Spray Dryer
Product Description
Product Description
Pharmaceutical Vacuum Tray Dryer Description
In the drying chamber, material will be dried under vacuum condition. Under the vacuum condition, the boiling point of material solution will reduce. It will increase impetus for heat and mass exchange. Therefore for certain heat exchange amount, it can save heat exchange area of evaporator
Material is under static condition during operation of the equipment, which is benefit for keeping initial status of material.
Intermittent operation can adjust process conditions at any time.
On the top of Pharmaceutical vacuum dryer, heating system is arranged to tackle the problem of return of condensed water, in addition, air suction is arranged at the side to improve drying efficiency.
This equipment can be used for low temperature drying and organic solvent recovery. Heat source can be steam, hot water and thermal oil. It is specially suitable for drying materials that is easily oxygenated during drying.
Vacuum Dryer Application
Pharmaceutical vacuum dryer is Suitable for drying of thermal sensitive materials easily resolved. Polymerized or deteriorated under higher temperature and it is wide used in pharmaceutical, chemical, foodstuff and electronic industries.
In the drying chamber, material will be dried under vacuum condition. Under the vacuum condition, the boiling point of material solution will reduce. It will increase impetus for heat and mass exchange. Therefore for certain heat exchange amount, it can save heat exchange area of evaporator
Material is under static condition during operation of the equipment, which is benefit for keeping initial status of material.
Intermittent operation can adjust process conditions at any time.
On the top of Pharmaceutical vacuum dryer, heating system is arranged to tackle the problem of return of condensed water, in addition, air suction is arranged at the side to improve drying efficiency.
This equipment can be used for low temperature drying and organic solvent recovery. Heat source can be steam, hot water and thermal oil. It is specially suitable for drying materials that is easily oxygenated during drying.
Vacuum Dryer Application
Pharmaceutical vacuum dryer is Suitable for drying of thermal sensitive materials easily resolved. Polymerized or deteriorated under higher temperature and it is wide used in pharmaceutical, chemical, foodstuff and electronic industries.

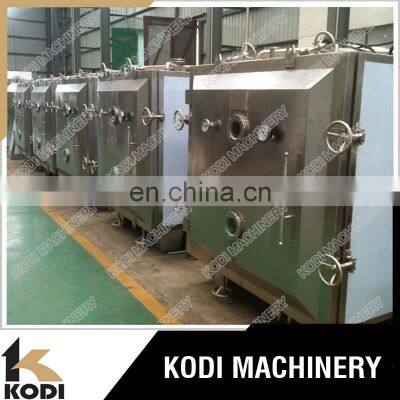

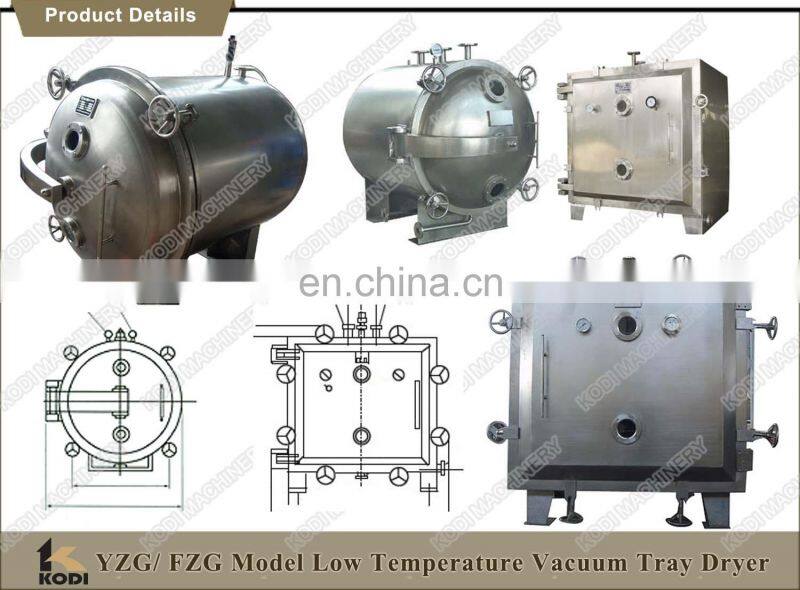

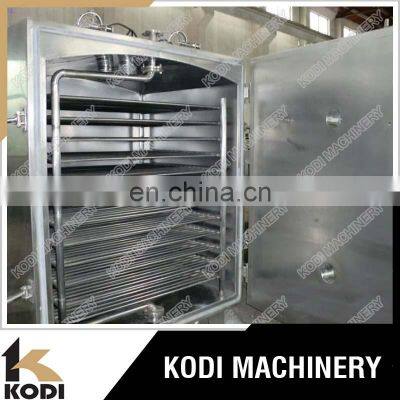

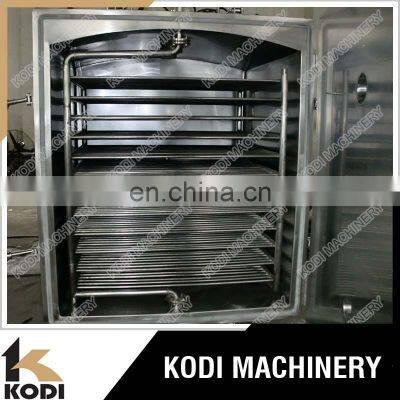

Details of Vacuum Drying Oven
Pharmaceutical Vacuum Drying Oven Features
1. It can get higher drying capacity at lower temperature and the heat energy can be used fully.
2. It is suitable for materials such as heat sensitive and easy oxidizable material.
3. It can dry raw materials that contain solvent and which needs to be recovered.
4. Before drying, it can carry out disinfectant treatment. During the period of drying, any impurity can not enter it.
5. The dryer belongs to static drying, materials will not be damaged.
6. The machine is a kind of batch type operation and can adjust technical process at any time.
7. The inner top is designed arch structure, it can effectively avoid the condensed water drop back.
8. Vacuumize from 4 points to one point, can guarantee uniform drying.
Pharmaceutical Vacuum Drying Oven Working Principle
It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying . if use vacuum to take air and humidity out, the dry speed will be faster.
Note: if use condenser, the solvent in raw material can be recovered. The condenser can be substituted by SK series water-ring vacuum pump or ZSWJ series hydropower spray vacuum pump unit if available.
1. It can get higher drying capacity at lower temperature and the heat energy can be used fully.
2. It is suitable for materials such as heat sensitive and easy oxidizable material.
3. It can dry raw materials that contain solvent and which needs to be recovered.
4. Before drying, it can carry out disinfectant treatment. During the period of drying, any impurity can not enter it.
5. The dryer belongs to static drying, materials will not be damaged.
6. The machine is a kind of batch type operation and can adjust technical process at any time.
7. The inner top is designed arch structure, it can effectively avoid the condensed water drop back.
8. Vacuumize from 4 points to one point, can guarantee uniform drying.
Pharmaceutical Vacuum Drying Oven Working Principle
It is well known that vacuum drying is to put raw material to the state of vacuum for heating and drying . if use vacuum to take air and humidity out, the dry speed will be faster.
Note: if use condenser, the solvent in raw material can be recovered. The condenser can be substituted by SK series water-ring vacuum pump or ZSWJ series hydropower spray vacuum pump unit if available.
Specification
Model Item | YZG-600 | YZG-800 | YZG-1000 | YZG-1400 | |||
Inner size of drying chamber(mm) | 600×976 | 800×1247 | 1000×1527 | 1400×2054 | |||
Outer size of drying chamber(mm) | 1153×810×1020 | 1700×1045×1335 | 1693×1190×1500 | 2386×1657×1920 | |||
Layers of backing support | 4 | 4 | 6 | 8 | |||
interval(mm) | 81 | 82 | 102 | 102 | |||
Size of baking tray(mm) | 310×600×45 | 520×410×45 | 520×410×45 | 460×640×45 | |||
Quantity of baking tray | 4 | 8 | 12 | 32 | |||
Working pressure inside the pipe of baking support(MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ≤0.784 | |||
Temperature inside the chamber(°C) | ≤150 | ≤150 | ≤150 | ≤150 | |||
Degree of vacuum inside the chamber when operation in idle, MPa | ≤30 | ||||||
Under the vacuum condition of 30and110°C ,evaporation rate of water(kg/m2,h) | 7.2 | ||||||
Model and power of vacuum pump when condenser is used(kw) | 2X-15A 2kw | 2X-30A 3kw | 2X-15A 3kw | 2X-70A 5.5kw | |||
Weight of drying chamber(kg) | 250 | 800 | 1000 | ||||
Model Item | FZG-10 | FZG-15 | FZG-20 | ||
Inner size of drying chamber(mm) | 1500×1060×1220 | 1500×1400×1220 | 1500×1800×1220 | ||
Outer size of drying chamber(mm) | 1924×1720×1513 | 1513×1924×2060 | 1924×2500×1513 | ||
Layers of backing support | 5 | 8 | 12 | ||
interval(mm) | 122 | 122 | 122 | ||
Size of baking tray(mm) | 460×640×45 | 460×640×45 | 460×640×45 | ||
Quantity of baking tray | 20 | 32 | 48 | ||
Working pressure inside the pipe of baking support(MPa) | ≤0.784 | ≤0.784 | ≤0.784 | ||
Temperature inside the chamber(°C) | ≤150 | ≤150 | ≤150 | ||
Degree of vacuum inside the chamber when operation in idle, MPa | ≤30 | ||||
Under the vacuum condition of 30and110°C ,evaporation rate of water(kg/m2,h) | 7.2 | ||||
Model and power of vacuum pump when condenser is used(kw) | 2X-70A 5.5kw | 2X-70A 7.5kw | 2X-70A 7.5kw | ||
Weight of drying chamber(kg) | 2100 | ||||

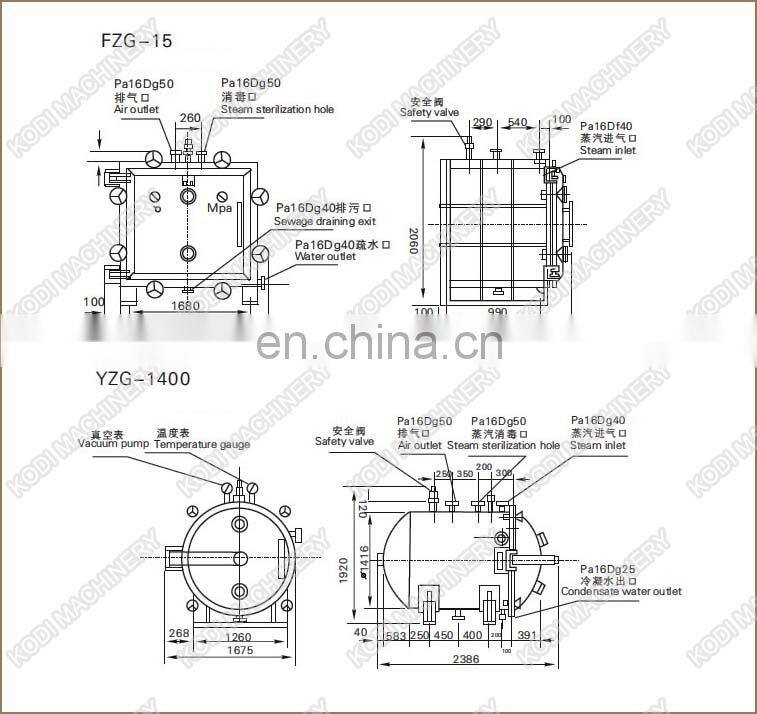

Flow Chart of Pharmaceutical Vacuum Drying Oven

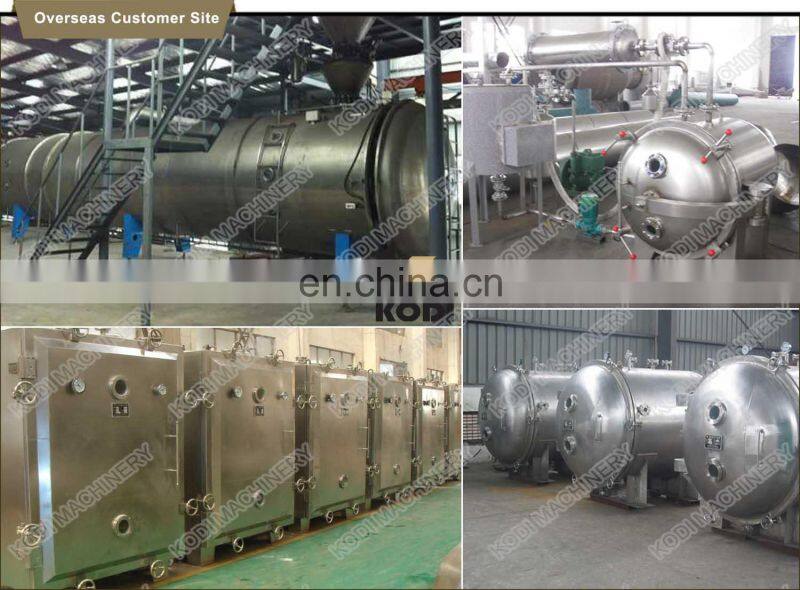

Successful Experience Overseas of KODI Pharmaceutical Vacuum Drying Oven
Pharmaceutical vacuum tray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service .
Pharmaceutical vacuum tray dryer has a very mature technology and process, and KODI company has rich overseas site installation experience and good after sale service .

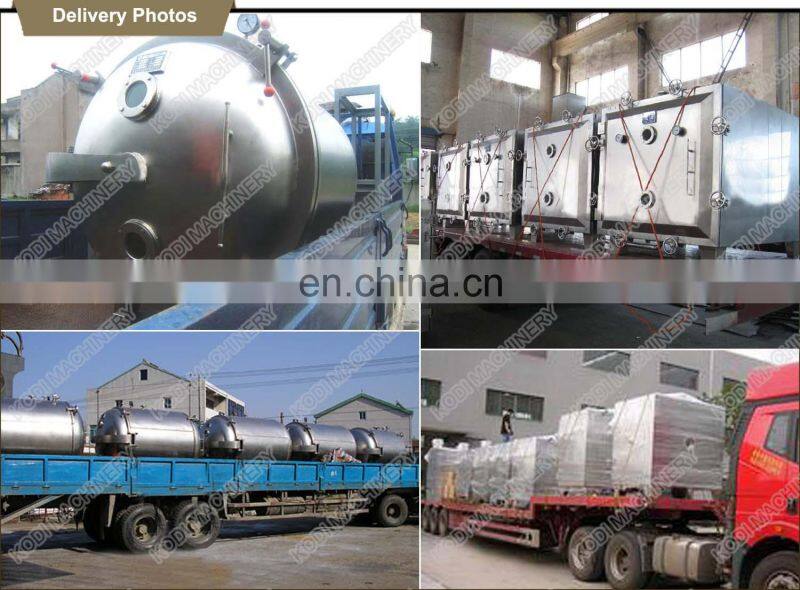

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
About KODI
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City,Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG Spray dryer, Pharmaceutical vacuum dryer/ vacuum drying oven / vacuum tray dryer, Industrial spin flash dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), LPG Spray dryer, Pharmaceutical vacuum dryer/ vacuum drying oven / vacuum tray dryer, Industrial spin flash dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Spray drying equipment,Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc..
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as China, Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-sale service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right YZG/ FZG vacuum dryer/ vacuum drying oven / vacuum tray dryer with best price, we would like to
get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right YZG/ FZG vacuum dryer/ vacuum drying oven / vacuum tray dryer with best price, we would like to
get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
Contact Us
- Changzhou Kodi Machinery Co., Ltd.
Product Categories
| Drying Machine | Evaporator | Filter Machine | Granulation Machine |
| Mixer Grinder and Sifter | Packaging Line | packaging machine | Reactor |
| Rice Process Line | Tank | Ungrouped |
New Products
-
KODI DW Model Continuous Hot Air Algae Belt Dryer Algae Conveyor Dryer/Algae Dryer
-
KODI DW Model Continuous Multi-layer Belt Dryer Machine Industrial Dryer
-
KODI DW Model Continuous Conveyor Carrageenan Belt Dryer Seaweed Drying Machine
-
DW Model Continous Cassava Slice Belt Dryer/Seaweed Conveyor Dryer/Carrageenan Band Dryer
-
DW Series High Quality Multi-layer Mesh Belt Dryer / Band Dryer for Sawdust
-
KODI ISO High Quality Desiccated Coconut Belt Drying Machine/Conveyor Dryer/Band Dryer
-
KODI GMP ISO Continuous Multi-layer Sunflower Seeds Mesh Conveyor Belt Dryer
-
KODI Food Grade Stainless Steel Vegetable & Fruit Drying Equipment / Band Dryer
-
KODI DW Model Single Layer Food Industrial Conveyor Mesh Belt Dryer Belt Drying Machine
-
DW Model Continuous Cottoni Seaweed Belt Dryer/Hot Air Seaweed Dryer/Cottoni Seaweed Dryer
-
KODI ISO GMP Standard SUS304 & SUS316L Seaweed Belt Drying Machine/Cottoni Seaweed Belt Dryer
-
KODI ISO DW Model Continuous Algae Mesh Belt Dryer Conveyor Dryer
-
KODI GMP Standard Continuous Conveyor Dryer Mango Mesh Belt Dryer
-
KODI ISO GMP Standard DW Series Continous Cotton Seeds Belt Dryer Machine
-
GMP Standard DW Series Continous Grape Belt Dryer Machine Fruit Belt Drying Machine
-
DW Series Continous Hot Air Banana Chips Belt Dryer Machine Fruit Vegetable Belt Drying Machine
-
DW Model Multi-layer Desiccated Coconut Mesh Belt Drying Machine
-
KODI ISO Continuous Hot Air Algae Belt Dryer Machine Mesh Belt Drying Machine
-
KODI ISO Hot Air Multi Layer Drying Machine Carrageenan Belt Dryer
-
KODI ISO SUS304 & SUS316L Continuous Seaweed Belt Dryer Carrageenan Belt Dryer
-
KODI ISO GMP Standard Hot Air Seaweed Processing Machine Seaweed Dryer
-
KODI Continous Hot Air Food Grade Rice Paddy Drying Machine Cooked Rice Belt Dryer
-
KODI GMP Standard Continous Seaweed Conveyor Belt Dryer Machine
-
KODI ISO GMP Food Fruit Vegetable Belt Conveyor Drying Machine Herb Coconut Dryer
Popular Searches
- tube bundle dryer
- fluid bed dryer
- dryer equipment
- spray drying equipment
- vacuum dryer
- plate drying machine
- industrial dryer
- rotary drum dryer
- cross joint shaft
- rotary dryer
- drum dryer
- vacuum drying equipment
- rotary drying equipment
- dryer oven
- spray dryer
- rotary dryer machine
- industrial rotary dryer
- rotary drying machine
- hopper dryer
- hopper drying machine
- freeze dryer
- industrial centrifugal dryer
- cowpea seed
- blood gas machine
- drier machine
- lab spray dryer
- drier equipment
- air tunnel
- air drying
- mineral dryer
Recommended Products
- Yosion Technology YH-9423A Drying Oven;Industrial Oven;Trolley Oven
- Peptide White Powder Spray Dryer Stainless Steel Plant Protein Spray Drying Equipment
- Yosion Technology YH-D2000T Drying Oven;Industrial Oven;Trolley Oven
- Yosion Technology YH-9623A Drying Oven;Industrial Oven;Sample Preparation Equipment
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- .[Energy Efficiency Certified] [24KW Motor/90KG Fuel] Vacuum Dryer for Wood Chips/Straw Drying [Jinan Hengyuruntai Supplier]
- Freeze Dryer
- Vacuum Freeze Dryer
Find Similar Products By Category
- Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Changzhou Kodi Machinery Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
