KODI ISO GMP Food Fruit Vegetable Belt Conveyor Drying Machine Herb Coconut Dryer
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
KODI Continous Hot Air Pepper Spice Red Chilli Drying Machine Food Fruit Tea Mesh Belt Dryer
-
KODI ISO GMP Continuous Conveyor Apron Dryer
-
KODI Hot Sale Continous Commercial Seaweed Drying Machine Carrageenan Belt Dryer
-
KODI DW Model Multi-layer Carrageenan Dryer Machine Seaweed Belt Dryer
-
KODI ISO Continous Carrageenan Hot Air Dryer Conveyor Mesh Belt Dryer Machine
-
DW Series Continous Hydrogenation Catalyst Reforming Catalyst Isomerization Catalyst Belt Dryer
Product Description
Product Description
Description of Cassava Belt Dryer
The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly.

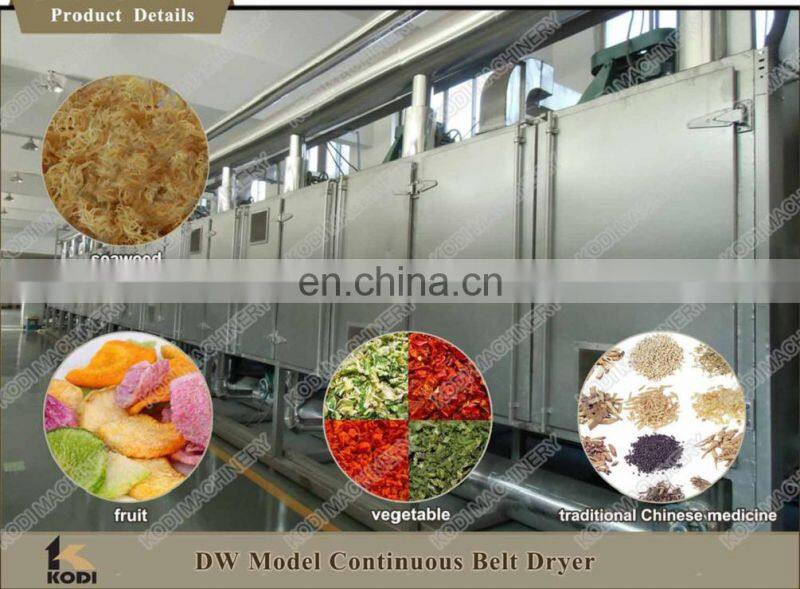

Application of Cassava Belt Dryer
The Cassava Belt Dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and Fruit or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Features of Conveyor Belt Dryer
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
The raw material after washed should be distributed on the conveyer belt through suitable mechanism such as star distributor, swing conveyor, crusher or granulator, the conveyer passes through the channel including of one or several heating unit. Each heating unit is equipped with air heater and circle system. Each channel has one or several damp discharge systems. When the conveyer passes through it, hot air will pass through the raw material from up to down or from down to up. In this way the raw material can be dried uniformly.
Application of Cassava Belt Dryer
The Cassava Belt Dryer is an industrial continuous drying equipment. It is widely used for chemical industry, foodstuff industry( fruit and Fruit or nut ), pharmaceutical industry, construction materials industry, electronic industry and so on. Especially it is suitable for drying raw materials that are good in breathability and have the shape of pieces or strip of granule. It is also possible to dry the pasted raw materials such as filter cake after shaped through granulator or extruder.
Features of Conveyor Belt Dryer
1, Air quantity, heating temperature, materials staying time and feeding speed can be adjusted to achieve the best drying effect.
2, The equipment configuration is flexible, mesh belt washing system and materials cooling system can be used.
3, Most air is recycled to realize saving energy
4, The machine is equipped with unique air dividing apparatus, it makes the hot air distribute uniform better and guarantee the quality of products is constant.
5, Heating source can be steam, conduction oil,, electricity, coal (oil), or hot air furnace.
Specification
Type | DW-1.2-8 | DW-1.2-10 | DW-1.6-8 | DW-1.6-10 | DW-2-8 | DW-2-10 | DW-2-20 | ||||||||
Quantity of unit | 4 | 5 | 4 | 5 | 4 | 5 | 10 | ||||||||
Belt width(m) | 1.2 | 1.6 | 2 | ||||||||||||
Length of drying section(m) | 8 | 10 | 8 | 10 | 8 | 10 | 20 | ||||||||
Thickness of raw material(mm) | ≤60 | ||||||||||||||
Operation temperature(°C) | 50-140 | ||||||||||||||
Steam pressure(MPa) | 0.2-0.8 | ||||||||||||||
Steam consume(kg/h) | 120-300 | 150-375 | 150-375 | 170-470 | 180-500 | 225-600 | 450-1200 | ||||||||
Drying time(h) | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.2-1.2 | 0.25-1.5 | 0.5-3 | ||||||||
Drying strength(kg/h) | 60-160 | 80-220 | 75-220 | 95-250 | 100-260 | 120-300 | 240-600 | ||||||||
Power equipped(kw) | 11.4 | 13.6 | 11.4 | 13.6 | 14.7 | 15.8 | 36.8 | ||||||||
Overall dimensions | L(m) | 9.56 | 11.56 | 9.56 | 11.56 | 9.56 | 11.56 | 21.56 | |||||||
W(m) | 1.49 | 1.49 | 1.9 | 1.9 | 2.32 | 2.32 | 2.32 | ||||||||
H(m) | 2.3 | 2.3 | 2.4 | 2.4 | 2.5 | 2.5 | 2.5 | ||||||||
weight(kg) | 4500 | 5600 | 5300 | 6400 | 6200 | 7500 | 140 | ||||||||
Remark:
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact KODI sales team to konw more details about Conveyor Belt Dryer / Industrial Food Dehydrator.
1. Parameters above in the table are regular model for reference;
2. We could make special model / size according to the customer's actual situation or requirement, please contact KODI sales team to konw more details about Conveyor Belt Dryer / Industrial Food Dehydrator.

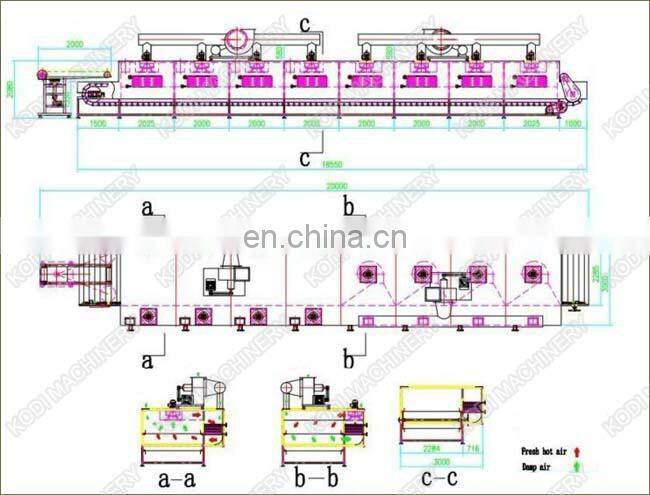

Simple Drawing of Industrial Conveyor Belt Dryer (project for drying sliced pineapple )

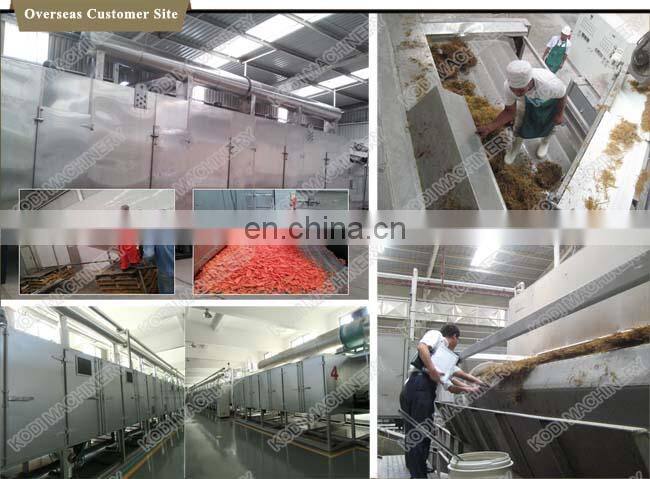

Successful Experience Overseas by KODI Industrial Food Dehydrator

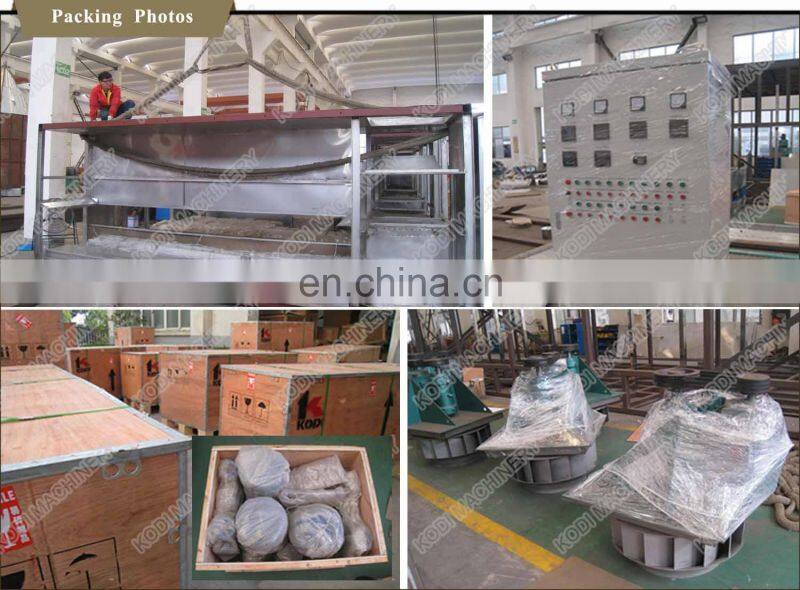

Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
Why Choose KODI
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
* International high quality certification product chain
* Manufacturer, more reasonable price
* Solid technical support and after-sales service
* Uphold the principle of “Customer Supreme”( Balance payment after equipments run normally)
* Exports to more than 20 countries and regions, good customers feedback
* One-stop service, customized exclusive project feasibility report
About KODI
Changzhou KODI Machinery Co., Ltd. located in the birthplace of China drying equipment----Zhenglu Industrial Park, Changzhou City, Jiangsu Province which is 150km away from Shanghai city, with a comfortable environment and convenient transportation access.
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Industrial Food Dehydrator / Conveyor Belt Dryer / Cassava belt dryer, industrial conveyor dryer, Multi-layer mesh Belt Dryer, Fruit conveyor dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
KODI company is a professional manufacture of drying machine, which include Seaweed processing machine, Seaweed drying machine (Cottonii to carrageenan, Agar agar ), Spray dryer, Industrial Food Dehydrator / Conveyor Belt Dryer / Cassava belt dryer, industrial conveyor dryer, Multi-layer mesh Belt Dryer, Fruit conveyor dryer, Food ingredients spray dryer, Flavor spray dryer (Cocoa, Maltdextrin,Gum Acacia), Lab Spray dryer, Gelatin processing machinery, Gelatin drying machine (Hide and bone),Gelatin production line. we also deal in high-quality fermentation tank, Bright tank , Extraction tank, concentration tank , evaporator and etc.
We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment. Our products conform to international standards, such as CE, SGS.
KODI company also has a lot of top talent which have more than 15years of work experience, include research, design, manufacture and after sale service. Our products sell to all of the world (such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Chile, Peru, Argentina, Russia, Ukraine, South Africa, Cameroon, Sudan, Syria) and also have the good cooperation with the foreign client and vendor.
We are sure that our high quality products and excellent services will be appreciated by the growing list of satisfied customers. Contacting us is the first step to build a long and successful business relationship with us. Welcome!
Our Service
Pre-service
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
Act as a good adviser and assistant of clients to enable them get rich and generous returns on their investments.
1. Introduce the product to the customer in detail, answer the question raised by customer carefully;
2.Make plans for choice according to the needs and special requirements of users in different sectors;
Sale service
1. Ensure product with high quality and pre-commissioning before delivery;
2. Delivery on time;
3.Provide full set of documents as customer’s requirements.
After-sale service
Provide considerate services to minimize clients’ worries.
1.Assist clients to prepare for the first construction scheme;
2.Install and debug the equipment;
3.Train the first-line operators;
4. Examine the equipment;
5.Take initiative to eliminate the troubles rapidly;
6.Provide technical support;
7.Establish long-term and friendly relationship.
Service commitment
1. Provide clients one-year warranty to make sure the machine work well;
2.We always keep certain inventory level of spare parts, which means the replacements can be sent to you timely;
3.Send every client a preferential quotation.
FAQ
Special Notice:
In order to quota you the right cassava Belt Dryer / Conveyor Belt Dryer / Industrial Food Dehydrator with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
In order to quota you the right cassava Belt Dryer / Conveyor Belt Dryer / Industrial Food Dehydrator with best price, we would like to get the following information include in your inquiry:
* -What is the raw material? Material related characteristic? Does it corrosive, strong basicity, or highly acid? Please confirm.
* -What is the capacity per hour you need (kg/h)?
* -What is the initial moisture and final moisture of finished products you require to get?
* -What about the maximum heat temperature of raw material?
* -What kind of fuel you use to heat the dryer? Natural gas, electricity, fuel oil or steam?
* -Which equipment material do you like prefer? SUS304, SUS316L or Carbon steel?
* -Provide us your country’s electricity information, such as phases, voltage, HZ?
* -How about dust collect requirements?
* -Other special requirements?
Frequently Asked Questions
Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is near Shanghai.It only takes you about 1 hour to get Changzhou.Or we can visit you in Shanghai.
Q: What’s the quality of your products?
A:Parts of our products come with best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia, South Africa, etc. You can rest assured with the quality absolutely.
Q: What to do if the machine has a problem?
A:24 hours timely response of mail and phone calls. If the parts broken belong to non-artificial factors within 12 months, we offer free replacement. If beyond 12 months, customers should bear the freight back and forth and accessories cost.
Q: How long is the warranty of your equipment?
A: Our warranty period is one year generally.
Q: What is your payment term?
A: Our usual payment term is: 30% TT in advance, 70% TT before shipment. Other ways can also be received after we both sides discussion and agreement.
Q: Does your price include freight?
A: Our usual price is based on FOB Shanghai, if you request CIF, please give us your delivery port, and we will give you CIF
price.
Contact Us
- Changzhou Kodi Machinery Co., Ltd.
Product Categories
| Drying Machine | Evaporator | Filter Machine | Granulation Machine |
| Mixer Grinder and Sifter | Packaging Line | packaging machine | Reactor |
| Rice Process Line | Tank | Ungrouped |
New Products
-
KODI DW Series Continous Sesame Hot Air Belt Dryer Machine Melon Seeds Belt Drying Machine
-
KODI ISO GMP Continuous Hot Air Carrot Mesh Belt Dryer / Conveyor Dryer / Band Dryer
-
CE Approved Centrifugal Rotary Atomizer Type Spray Dryer Price
-
KODI CE Approved ISO Atomization Food Grade Centrifugal Powder Spray Dryer
-
KODI CE LPG 25 High Speed Centrifugal Spray Drying Machine Atomizer Centrifugal Spray Dryer Price
-
KODI CE Approved Industrial High Speed Atomizer Flavour Spray Dryer
-
KODI CE Approved ISO GMP Industrial Spray Drying Machine/ Egg Powder Spray Dryer
-
LPG Model Centrifugal Atomizer Type Herb Extracting Solution Spray Dryer
-
KODI CE ISO GMP High-speed Atomizer Egg/ Egg Liquid/ Egg Powder Spray Dryer
-
KODI High-speed Atomizer Fruit Juice Spray Dryer Food Spray Drying Machine
-
KODI CE ISO GMP Centrifugal Atomizer Type Herbal Extraction Spray Dryer
-
CE Approved Maltodextrin Spray Dryer Seasoning Spray Drying Machine/Equipment
-
KODI CE LPG Model High Speed Centrifugal Atomizer Spray Dryer Machine Price
-
KODI CE Approved ISO GMP Food Additives Spray Dryer
-
KODI CE ISO GMP LPG Model Centrifugal Atomizer Type Industrial Food Spray Drier
-
KODI High-speed Atomizer Amino Acid Spray Dryer SUS304 & SUS316L Spray Drying Machine
-
KODI CE ISO GMP Centrifugal Atomizer Vegetable Juice Liquid Spray Dryer
-
CE Approved LPG Model Gelatin Spray Dryer SUS304 & SUS316L Spray Drying Machine/equipment
-
KODI CE LPG Model High Speed Centrifugal Ceramic Powder Spray Dryer Price
-
KODI High Efficiency SUS304 & SUS316L Emulsion Spray Dryer Equipment
-
CE Approved Large Capacity Egg Powder Egg Liquid Spray Dryer Machine
-
KODI LPG Series Blood Spray Dryer Blood Powder Spray Drying Machine/Equipment
-
CE Approved Best Quality Soy Sauce Powder Spray Dryer Equipment Price
-
KODI CE ISO GMP Potassium Sorbate Spray Dryer Powder Spray Drying Equipment
Popular Searches
- tube bundle dryer
- fluid bed dryer
- dryer equipment
- spray drying equipment
- vacuum dryer
- plate drying machine
- industrial dryer
- rotary drum dryer
- cross joint shaft
- rotary dryer
- drum dryer
- vacuum drying equipment
- rotary drying equipment
- dryer oven
- spray dryer
- rotary dryer machine
- industrial rotary dryer
- rotary drying machine
- hopper dryer
- hopper drying machine
- freeze dryer
- industrial centrifugal dryer
- cowpea seed
- blood gas machine
- drier machine
- lab spray dryer
- drier equipment
- air tunnel
- air drying
- mineral dryer
Recommended Products
- Yosion Technology YH-9423A Drying Oven;Industrial Oven;Trolley Oven
- Peptide White Powder Spray Dryer Stainless Steel Plant Protein Spray Drying Equipment
- Yosion Technology YH-D2000T Drying Oven;Industrial Oven;Trolley Oven
- Yosion Technology YH-9623A Drying Oven;Industrial Oven;Sample Preparation Equipment
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- [Explosion-Proof Design] [80-120°C VFD Control] Biomass Vacuum Dryer for Bamboo Powder/Sugarcane Residue [Shandong Manufacturer]
- .[Energy Efficiency Certified] [24KW Motor/90KG Fuel] Vacuum Dryer for Wood Chips/Straw Drying [Jinan Hengyuruntai Supplier]
- Freeze Dryer
- Vacuum Freeze Dryer
Find Similar Products By Category
- Manufacturing & Processing Machinery > Chemical Equipment & Machinery > Chemical Drying Equipment
- Please Enter your Email Address
- Please enter the content for your inquiry.
We will find the most reliable suppliers for you according to your description.
Send Now
Changzhou Kodi Machinery Co., Ltd.
AIBot OnlineThis conversation is AI-generated. Contact manufacturer before transaction to confirm info.
-
sales
Hi there! Welcome to my shop. Let me know if you have any questions.
Your message has exceeded the limit.
- Contact supplier for lowest price
- Customized Request
- Request Sample
- Request Free Catalogs
Your message has exceeded the limit.
-
Purchase Quantity
-
*Sourcing Details
Your inquiry content must be between 10 to 5000 characters.
-
*Email
Please enter Your valid email address.
-
Mobile
