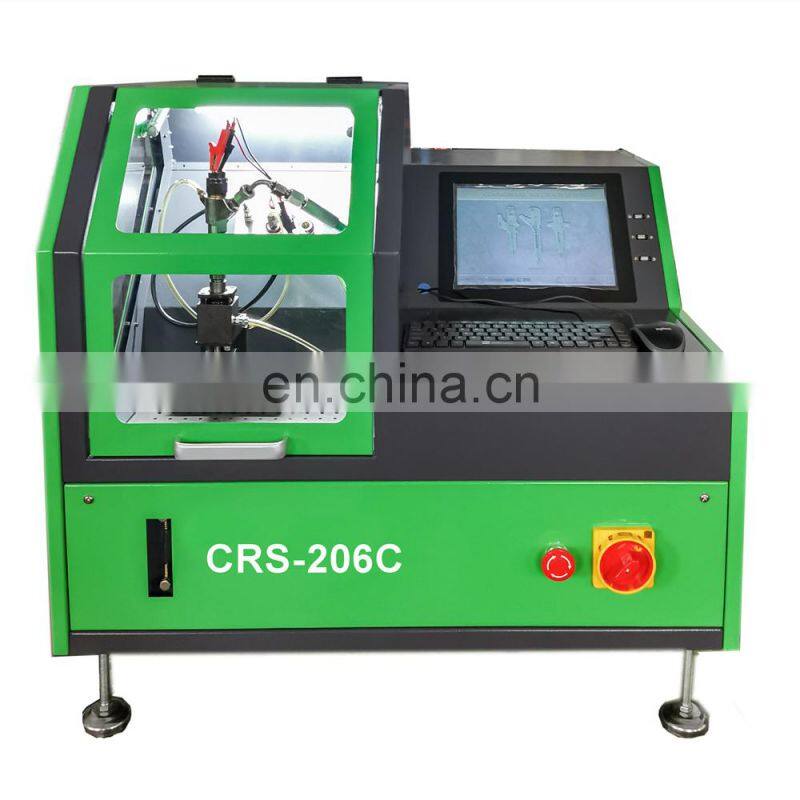

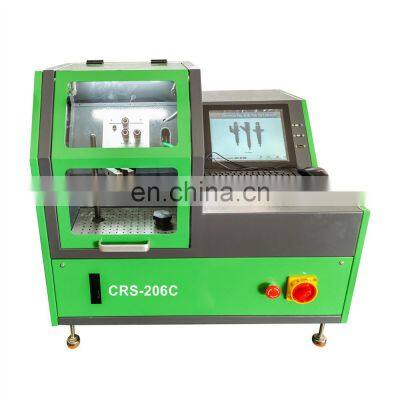

CRS-206C Common Rail Test Bench Eps206 Piezo Injector Tester

CRS-206C common rail test bench is special device to test the performance of high-pressure common rail injector, it can test common rail injector of B, D****, D*****, SIE****. The device fully simulates the principle of the injection system of the high pressure common rail engine, and the main drive adopts the servo control technology. Pump speed, injection pulse width and rail pressure are all controlled by industrial computer by real time, oil quantity is displayed by flow meter sensor, compare debug data automatically. 10.4,LCD touch screen display,it contains more than 1000 kinds of injectors data by computer,search, print(optional). Adjusted by drive signal, high precision, steady performance.

     This is the testing device that use of  AC 220V power supply, is specifically for the customers who don’t have 380V three-phase AC.

test brand: BO, DEN**, DEL***, SIE****.

test the seal of high-pressure common rail injector.

test the max. oil quantity of high-pressure common rail injector.

test the backflow oil quantity of high-pressure common rail  injector.

test the cranking oil quantity of high-pressure common rail injector.

test the pre-injection of high-pressure common rail injector.

test the average oil quantity of high-pressure common rail injector.

Data can be searched, saved and printed (optional)

1.  Main drive adopts the servo control technology

2.  Controlled by industrial computer in real time.

3.  Oil quantity is measured by flow meter sensor and displayed on 10.4, LCD .

4.   Rail pressure can be tested in real time, it adopts closed-loop control system, and it contains the high-pressure protection function.

5.  Data can be searched, saved and printed (optional).

6.  Pulse width of the injector drive signal can be adjusted.

7.  Protection function of short-circuit.

8.  Plexiglass protective cover, easy and safe operation.

9.  Using 220V AC single-phase power supply.
