Product Description

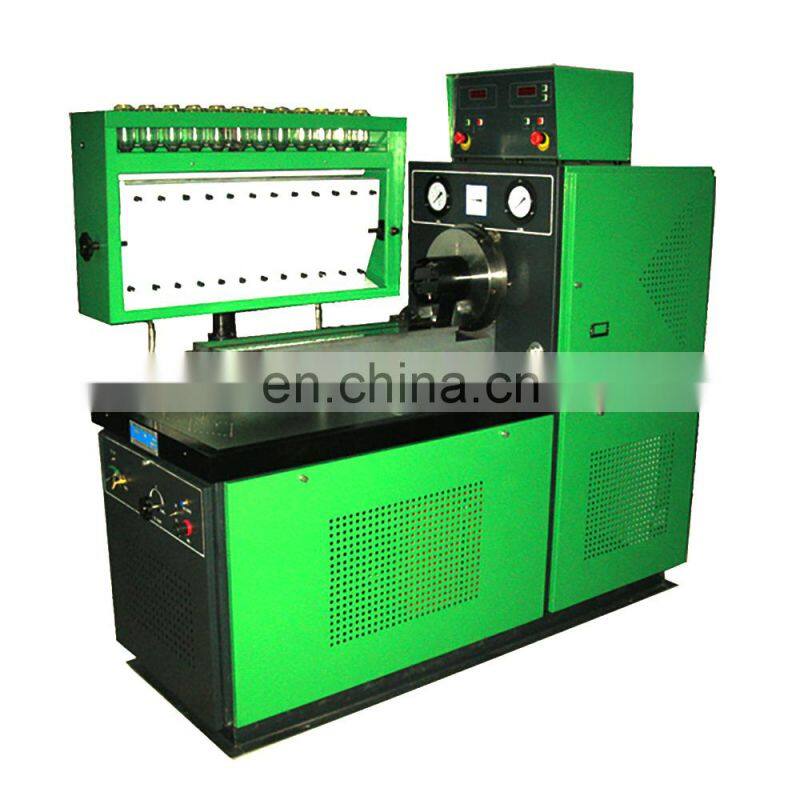

High quality COM-F diesel fuel injection pump test bench
to test Inline Pump repair tools made in China
COM-F diesel fuel injection pump Tester
test bench for diesel fuel injection pumps
1. Changing frequency changing rotation speed;
2. Low fall of rotation speed and high output torque;
3. High measurement precision;
4. The functions of over voltage, overload and short circuit protection;
5. Ultra low noise;
6. Operating position: arbitrary side of the two work sides of the test stand;
7. Rotation speed, count are displayed in digits mode, and air pressure is displayed on the mechanical gauge;
8. Built-in air resource.
1. Measurement of each cylinders delivery at various rotation speeds;
2. Checking of each cylinders injection time with static state;
3. Checking of the mechanical speed governors;
4. Checking of the electromagnetic valve of distributor pumps;
5. Checking of the pneumatic speed governors positive pressure performance;
6. Checking of the pneumatic speed governors vacuum performance;
7. Checking of sealing of fuel injection pump body.
|
Adjustable rotation speed range |
0~4000RPM |
|
Double series of graduates |
45CC, 150CC |
|
Volume of oil tank |
60L |
|
Test oil filtering unit |
5μ |
|
DC. Supply |
12/24V |
|
Feed pressure |
0~0.4MPa (low), 0~4MPa (high) |
|
Air pressure (MPa) |
-0.03~0.3 |
|
3-phase power supply |
380V/50Hz or on request |
|
Flywheel inertias moment |
0.8kg·m2 |
|
Center height |
125mm |
|
Output power |
5.5kw, 7.5kw, 11kw and 15kw or on request |
|
Overall dimensions (mm) |
1800×960×1750 |
|
Net weight (kg) |
1300 |
We can accept T/T
Delivery Time:10-15days after received your payment.
Package:Plywood case
If you need anything,Please don't hesitate to contact with me.
