High quality heui injector test bench HEUI-200 for common rail HEUI injector China EPS205
- 1000 per Month
- T/T Credit Card
You May Like
-
COM-EMC high quality diesel fuel injection pump calibration machine for hot sale
-
Taian high quality common rail injector pump tester CRS728C, CRS-728C HEUI,EUI/EUP test performance optional add
-
High quality CRS728C,CRS-728C common rail test bench ,can remote control for data upgrade for hot sale
-
Taian HEUI test bench high quality diesel common rail tester CRS728C, CRS-728C ,HEUI,EUI/EUP optional add for sale
-
Taian high quality test bench CRS728C, CRS-728C piezo injector calibration machine ,VP37/VP44,RED4, HEUI optional add
-
High quality VP37/VE37 pump tester VP37 for hot sale
Product Description
High quality heui injector test bench HEUI-200
for common rail HEUI injector China EPS205

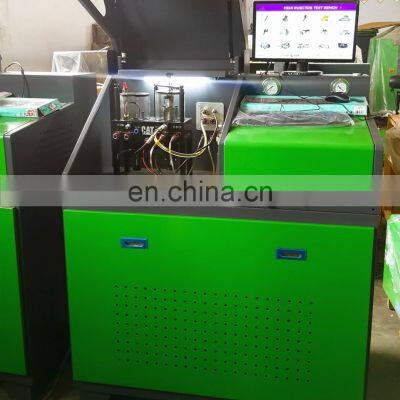

HEUI-200 Common Rail Injector Tester
HEUI-200 It can test HEUI produced by most manufacturer.
It completely simulates the injection principle of HEUI.
Oil measurement,fuel temperature,lub.oil temperature,injection time,injection pulse frenquency are all with digital display.
Lub.oil pressure is displayed by shakeproof pressure gauge.
Clear display, stable work, high control accuracy.
Drive signal can be adjusted, you will have a safe repairing maintenance.
| Test C7,C9 and other HEUI; |
| Test the high-speed oil quantity of HEUI; |
| Test the medium-speed oil quantity of HEUI; |
| Test the cranking oil quantity of HEUI; |
| Test the sealing of HEUI |
| Injector testing frequency: | 50~2000 rpm; |
| Pulse width: | 0.1~200 ms; |
| Injection time: | 1~100s ; |
| Lub.oil pressure: | 0~25Mpa; |
| Fuel pressure: | 0~0.3 Mpa ; |
| Input power: | 380V/50hz/3phase or 220V/60hz/3phase |
| Fuel temperature: | 40°C; |
| Lub.oil temperature: | 40°C; |
| Overall dimension(MM): | 1120×800×1560; |
| Weight: | 400KG. |

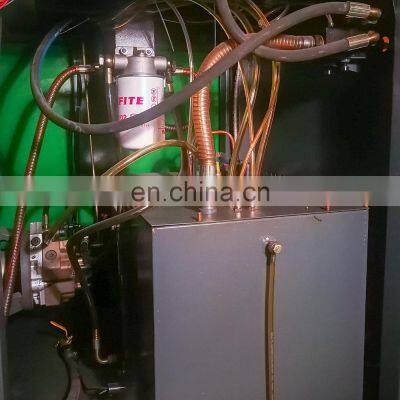

Imported high precision sensor Original new CP3 oil pump
High precision diesel filter switchboard Metal fuel tank, strong
stainless steel tubing refrigeration compressor
HEUI dedicated test card holder Auxiliary figure
| Controlled by industrial computer at real time, Windows operating system; |
| Oil quantity is measured by sensor and displayed on LCD; |
| Injection drive signal pluse width and frequency is adjustable; |
| The drive signal’s percentage is adjustable; |
| Short circuit protection function; |
| The injection time or injection times of injector can be set by yourself; |
| Date can be searched and saved. |
We can accept T/T
Delivery Time:10-15days after received your payment.
Packaging Details:Plywood case.
