Product Description

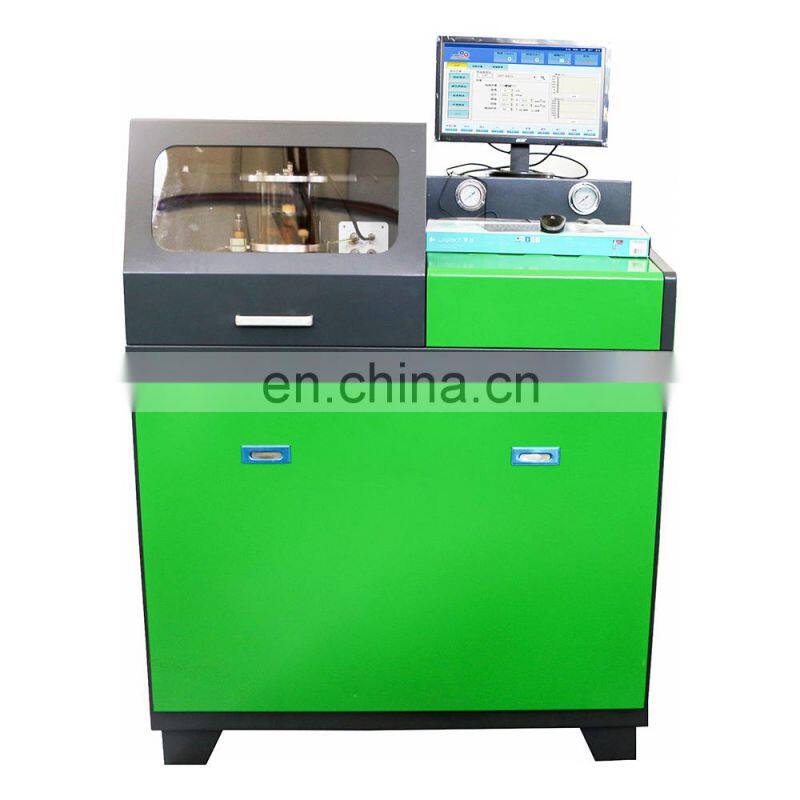

HEUI-200 common rail diesel injector
test bench C7 C9 C-9 injector tester
1. HEUI-200 can test HEUI produced by most manufacturer.
2.It completely simulates the injection principle of HEUI.-- (Oil measurement, fuel temperature, lub. oil temperature, injection time, injection pulse frenquency are all with digital display.)
3.Lub. oil pressure is displayed by shakeproof pressure gauge. Clear display, stable work, high control accuracy.
4.Drive signal can be adjusted, you will have a safe repairing maintenance.
1.Test C7,C9 and other HEUI;
2.Test the high-speed oil quantity of HEUI;
3.Test the medium-speed oil quantity of HEUI;
4.Test the cranking oil quantity of HEUI;
5.Test the sealing of HEUI;
2. Oil quantity is measured by sensor and displayed on LCD;
3. Injection drive signal pluse width and frequency is adjustable;
4.The drive signal’s percentage is adjustable;
5.Short circuit protection function;
6.The injection time or injection times of injector can be set by yourself;
7. Date can be searched and saved.
|
Adjustable rotation speed range |
50~2000RPM |
|
Pulse width |
0.1~200 ms |
|
Injection time |
1~100s |
|
Lub. oil pressure |
0~25Mpa |
|
Fuel pressure |
0~0.3 Mpa |
|
Input power |
AC 380V/50HZ/3Phase or 220V/60HZ/3Phase |
|
Fuel temperature |
40°C |
|
Lub. oil temperature |
40°C |
|
Overall dimension(MM) |
1120×800×1560 |
|
Weight |
387KG |
Imported high precision sensor Original new CP3 oil pump
High precision diesel filter switchboard Metal fuel tank, strong
stainless steel tubing refrigeration compressor
HEUI dedicated test card holder Auxiliary figure
Please scan QR code, watch the video
