Home > Products > Test Benches > HOT Selling Common Rail Test Bench CRS-200C Beautiful Model as CR318 and CR518
HOT Selling Common Rail Test Bench CRS-200C Beautiful Model as CR318 and CR518
- T/T Credit Card
You May Like
-
China UD Control Valve for 320D Injector Assy 32F61-00062/326-4700/326-4740 Actuators Made in China
-
Common Rail Injector and HEUI Test Bench CRS-328C /CR318 /CR518 With Hot Sale
-
Fuel Injector Stroke Test Tool 0445110, 0445120 Injector Injector Stroke Measurement Tool
-
HU-200 Injector Test Bench Can Test Heui Injector Eui-eup Unit Pump Test Bench
-
CRS-718C With Warranty CRDI/ EUI/EUP /HEUI Injector Test Bench Common Rail Tester EPS815 Optional Add QR-coding and BIP Function
-
EUI EUP High Quality Diesel Fuel Injector Test Bench CAMBOX New Type Cam Box With BIP EUI-200
Product Description

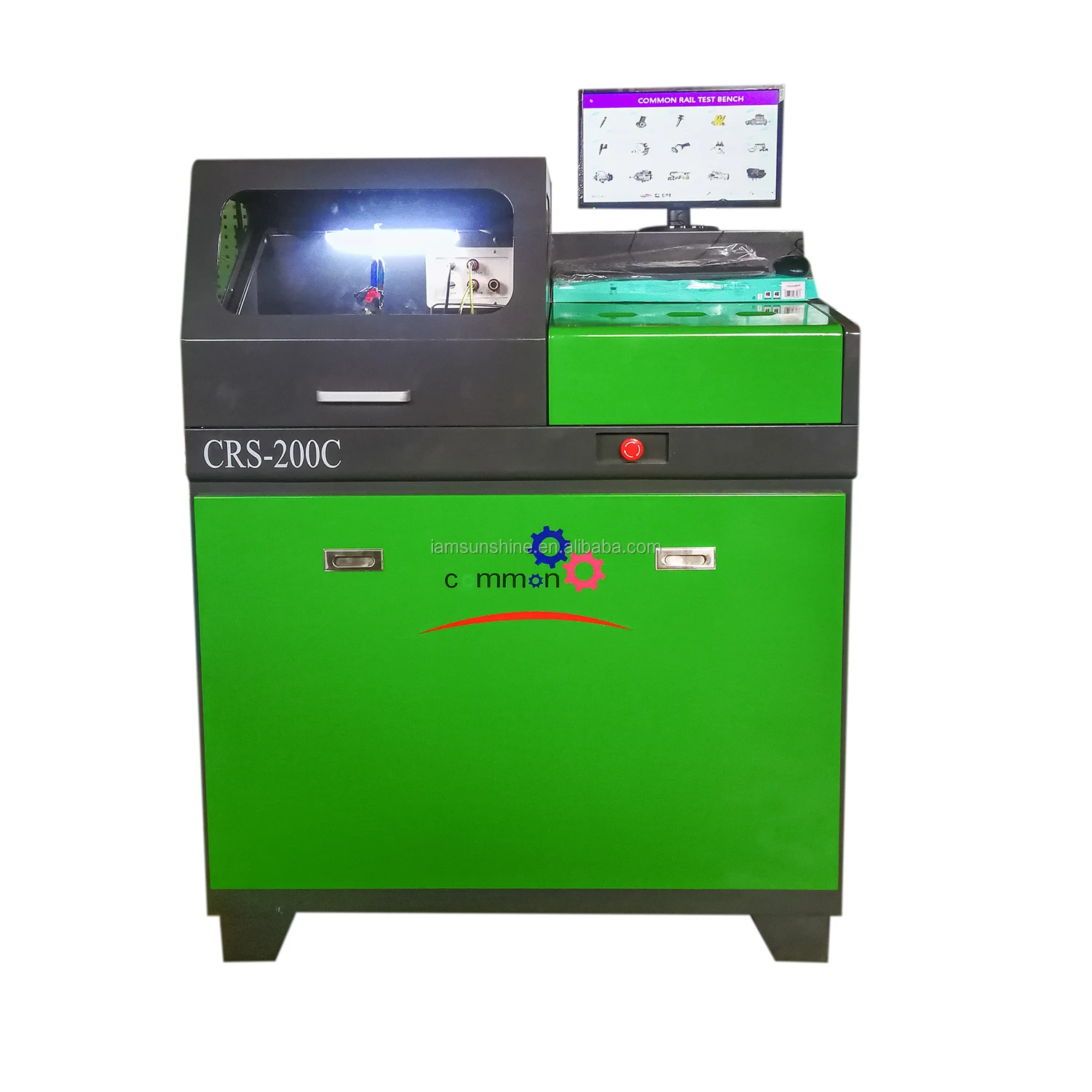

China diesel fuel injector test bench CRS-200C
like common rail injector tester CRS318
CRS-200C Common Rail Injector Tester
>>>CHARACTERISTIC
1.Main drive adopts the speed change by frequency change.
2.Controlled by industrial computer in real time.
3.Oil quantity is measured by flowmeter sensor and displayed on 19 LCD.
4.Rail pressure can be tested in real time and controlled automatically, it adopts closed-loop control system
5.Data can be searched, saved and printed (optional).
6.Pulse width of the injector drive signal can be adjusted.
7.Forced cooling system,it contains more than 600 kinds of injectors data by computer
8.Protection function of short-circuit.
9.Plexiglass protective cover, easy and safe operation.
10.it contains the high-pressure protection function.
>>>FUNCTION
1. Test 4 brands of common rail injector.
2. Test 4 pieces of injector at a time.
3. Test the seal performance of common rail injector.
4. Test the pre-injection oil quantity of common rail injector.
5. Test the max. oil quantity of common rail injector.
6. Test the min. oil quantity of common rail injector.
7. Test the average oil quantity of common rail injector.
8. Test the backflow oil quantity of common rail injector.
9. Clean and repair the problem(caused by pollution) of injector.
>>>TECHNICAL PARAMETER
| Rail pressure: | 0~1800 bar |
| Pulse width: | 0.1~200 ms; |
| Test oil filtered precision: | 5μ |
| Lub.oil pressure: | 0~25Mpa; |
| Rotation speed: | 0~2000RPM |
| Input power: | 380V/50hz/3phase or 220V/60hz/3phase |
| Fuel temperature: | 40±2℃ |
| Oil tank capacity: | 20L |
| Overall dimension(MM): | 1120×800×1560; |
| Weight: | 300KG. |
PAYPAL WESTERN UNION MONEYGRAM TT VISA MASTERCARD etc.
ABOUT COMPANY
Taian Sunshine Industry CO.is specialized in the sell of diesel fuel injection systems parts for diesel engines.our main parts are Diesel Common Rail Nozzle, Diesel Common Rail Control Valves of different brands, Diesel Common Rail Sensor, SCV Valve, Common Rail Diesel Repair Kits, High Pressure Common Rail Injectors....Today we have established a professional working team under the spirit of “best quality and service in China”.
Taiansunshine expects to make prosperity together with you.
