High-quality Common Rail Test Bench CRS-308C

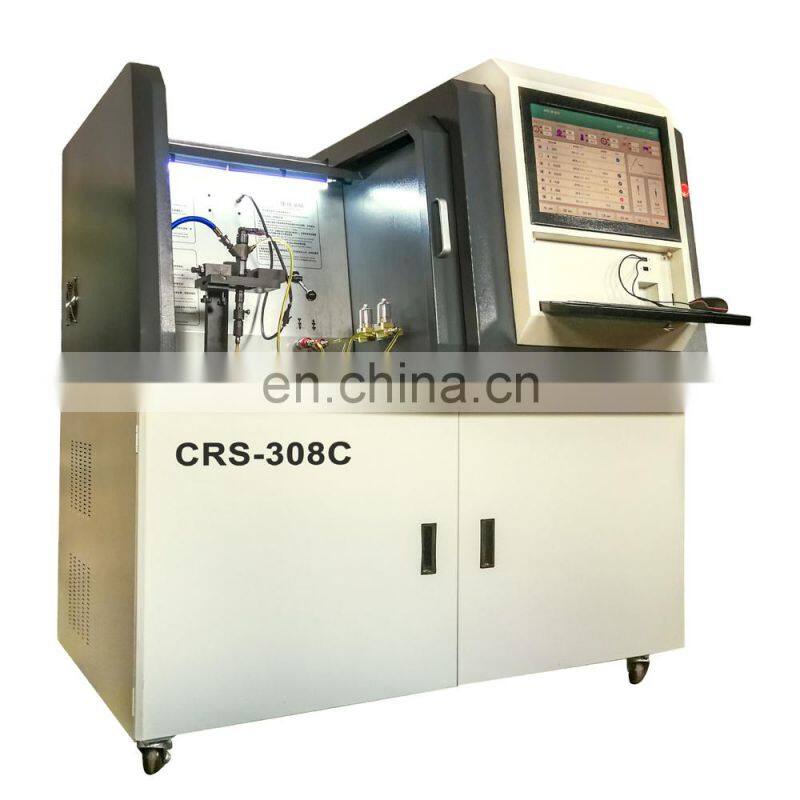

CRS-308C diesel fuel injector tester and common rail test bench

       CRS-308C common rail injector test bench is used to test common rail injector  by flow meter sensor, as well as Piezo injector. The data is also obtained by computer,19 inch LCD screen display makes the data moreclear.

It adopts drive singal modulation and forced-cooling system, advanced

technology, steady performance, precise measurement and convenient operation

>>>CHARACTERISTIC

1.Main drive adopts the speed change by frequency change.

2.Controlled by industrial computer in real time, Windows operating system.

   Fulfill the remote assistance by internet and make the maintenance easy to operate.

3.Common rail injector oil quantity is measured by imported high precise sensor and displayed on 19 LCD .

4.Drive signal can be adjusted

5.Percentag e of drive signal can be adjusted.

6.Rail pressure can be tested in real time and controlled automatically, it contains the high-pressure protection function.

7.Data can be searched, printed and made into database.

8.Pulse and frequency of the injector drive signal can be adjusted.

9.injection time can be setted.

10.Protection function of short-circuit.

11.Oil temperature is controlled by forced-cooling system.

12.Plexiglass protective door, easy operation, safe protection.

13.Measure the flux of common rail pump by flow meter sensor.

 >>>FUNCTION

  1. Test 4 brands of common rail injector.

2. Test 4 pieces of injector at a time.

3. Test the seal performance of common rail injector.

4. Test the pre-injection oil quantity of common rail injector.

5. Test the max. oil quantity of common rail injector.

6. Test the min. oil quantity of common rail injector.

7. Test the average oil quantity of common rail injector.

8. Test the backflow oil quantity of common rail  injector.

9. Clean and repair the problem(caused by pollution) of injector.

>>>TECHNICAL  PARAMETER
