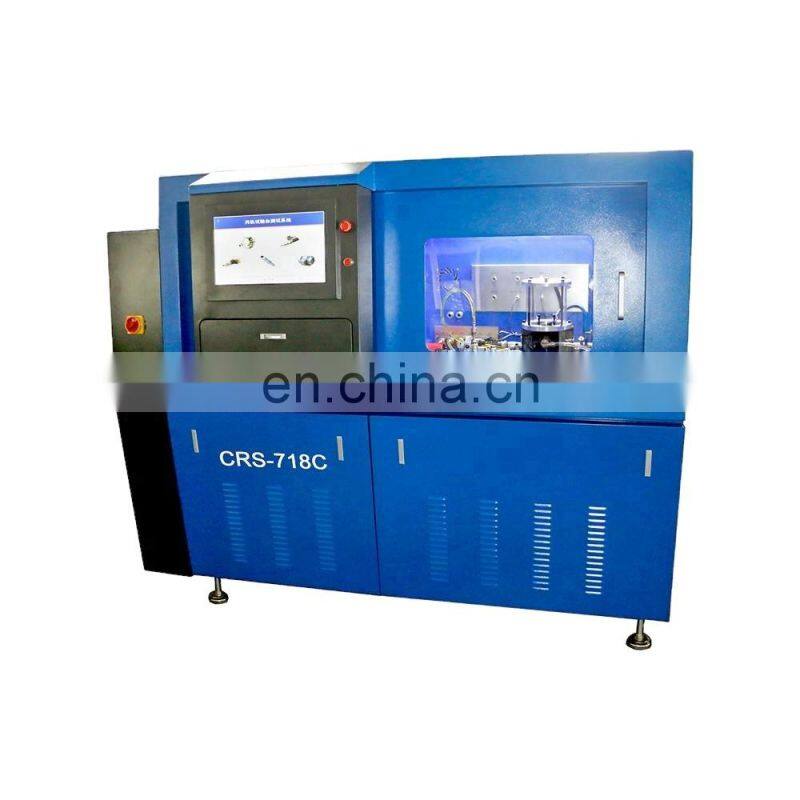

fully functional common rail test bench CRS-718C test to common rail piezo injector and pump

Common Rail Injector

Common Rail Pump

1. test all common rail injector

1. test all common rail pump

2. test 1 piece of injectors at a time.

2. test the sealing of common rail pump.

3. test the max. oil quantity of high-pressure common rail injector.

3. test the internal pressure of common rail pump.

4. test the cranking oil quantity of high-pressure common rail injector.

4. test the proportional electromagnetic  valve of common rail pump.

5. test the backflow oil quantity of high-pressure common rail  injector.

5. test the input pressure of common rail pump.

6. test the average oil quantity of high-pressure common rail injector.

6. test the flux of common rail pump.

7. set the high-pressure common rail injector's injection state and oil quantity measurement.

7. measure the rail pressure in real time.

8. Data can be searched, printed and made into database.

8. Data can be searched, printed and made into database.

Injection testing frequency

50~3000 rpm

Pulse width

0.1~200 ms

Continuous injection times

0~1000

Fuel temperature

40±2°C

Supply oil quantity of common rail injector

0~200cc/min 0.5%

Rail high pressure

0~2200 bar

Test oil filtered precision

5μ

Input power

380V/50hz/3phase or 220V/60hz/3phase

Rotation speed

100~3000RPM

Oil tank capacity

60L

Flywheel inertia’s moment

0.8KG.M2

Center height

125MM

Output power

11KW

Overall dimension(MM)

2200×900×1700

Weight
