Product Description

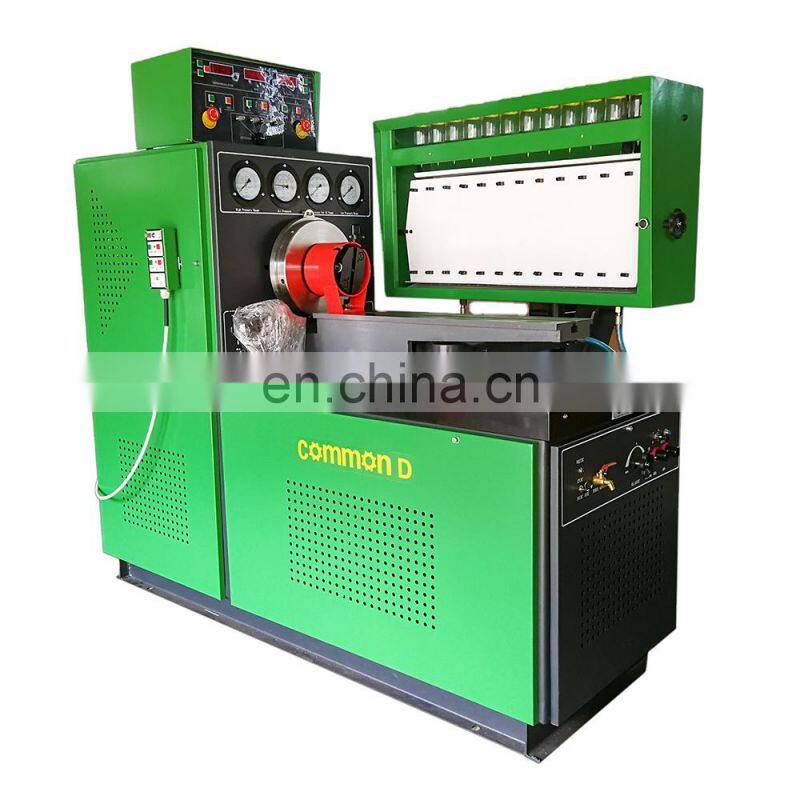

COM-D Common Rail Pump Tester
test bench for diesel fuel injection pump
>>>CHARACTERISTIC
1.Changing frequency changing rotation speed, low fall of rotation speed and high output torque;
>>>FUNCTION
1.Measurement of each cylinders delivery at various rotation speeds;
2.Checking of each cylinders injection time with static state;
3.Checking of the mechanical speed governors;
4.Checking of the electromagnetic valve of distributor pumps;
5.Checking of the pneumatic speed governors positive pressure performance;
6.Checking of the pneumatic speed governors vacuum performance;
7.Checking of sealing of fuel injection pump body.
>>>TECHNICAL PARAMETER
|
Adjustable rotation speed range |
0~4000RPM |
|
Double series of graduates |
45CC, 150CC |
|
Volume of oil tank |
60L |
|
Test oil filtering unit |
5μ |
|
DC. Supply |
12/24V |
|
Feed pressure |
0~0.4MPa (low), 0~4MPa (high) |
|
Air pressure (MPa) |
-0.03~0.3 |
|
3-phase power supply |
380V/50Hz or on request |
|
Flywheel inertias moment |
0.8kg·m2 |
|
Center height |
125mm |
|
Output power |
5.5kw, 7.5kw, 11kw and 15kw or on request |
|
Overall dimensions (mm) |
1800×960×1750 |
|
Net weight (kg) |
1300kg |
We can accept T/T
Delivery Time:10-15 days after received your payment.
Package:Plywood case
Taian Sunshine Industry CO.is specialized in the sell of diesel fuel injection systems parts for diesel engines.our main parts are Diesel Common Rail Nozzle, Diesel Common Rail Control Valves of different brands, Diesel Common Rail Sensor, SCV Valve, Common Rail Diesel Repair Kits, High Pressure Common Rail Injectors....Today we have established a professional working team under the spirit of “best quality and service in China”.
Taiansunshine expects to make prosperity together with you.
