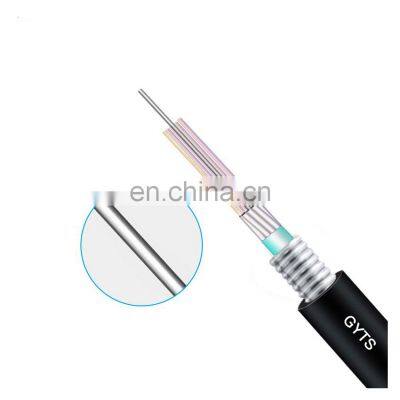

wholesale good quality china supplier new type low price optical fiber cable
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
hot sale fiber optic equipment 8 ports 16 port mini ftth epon onu gpon olt
-
CATV high power 16 output with 22 or23 dBm 1550nm indoor CATV Optical amplifier EDFA
-
Hot sale indoor toslink shutter transmitter tv ftth pon wdm catv Optical Receiver
-
YaTai high power edfa 16 port 19dbm WDM fiber optic signal amplifier
-
wholesale customized portable normal optical mini fiber optic set catv tool kit
-
wholesale white ftth network epon fiber optic modem iptv catv gpon onu
Product Description
|
|
2-96 fibers |
98-288fibers |
||
|
Max. Tension (N) |
Short-term |
1500 |
3000 |
|
|
Max. Tension (N) |
Long-term |
600 |
1000 |
|
|
Max. Crushing Resistance (N/100mm2) |
1000 |
|||
|
Temperature range(°C) |
-40°C-- +70°C |
|||
|
Min. Bending Radius(mm) |
Install |
20D |
||
|
Min. Bending Radius(mm) |
Static |
10D |
||
|
|
G.652 |
G.655 |
50/125μm |
62.5/125μm |
|
|
Attenuation (+20℃) |
@850nm |
|
|
≤3.0 dB/km |
≤3.0 dB/km |
|
@1300nm |
|
|
≤1.0 dB/km |
≤1.0 dB/km |
|
|
@1310nm |
≤0.36 dB/km |
≤0.40 dB/km |
|
|
|
|
@1550nm |
≤0.22 dB/km |
≤0.23dB/km |
|
|
|
|
Bandwidth (Class A) |
@850nm |
|
|
≥500 MHz·km |
≥200 MHz·km |
|
@1300nm |
|
|
≥1000 MHz·km |
≥600 MHz·km |
|
|
Numerical Aperture |
|
|
0.200±0.015NA |
0.275±0.015NA |
|
|
Cable Cut-off Wavelengthλcc |
≤1260nm |
≤1480nm |
|
|
|
