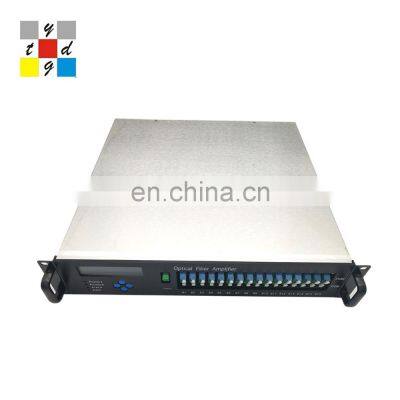

Home > Products > Ready to ship > Warranty period of 3 years!!2019 The Only Global 19db Cable Tv Edfa 1310 Ftth High Power Edfa
Warranty period of 3 years!!2019 The Only Global 19db Cable Tv Edfa 1310 Ftth High Power Edfa
- 1000 per Month
- T/T Credit Card
You May Like
-
Free Project Design Catv Modulator Hotel System Av Rf Modulator
-
XPON 1GE+CATV+WIFI GPON ONU
-
Warranty 3 years FREE GIFTS 1550 16 port 23 dbm EDFA with WDM Optical Amplifier 16 port edfa
-
Easy Operation Modulator Catv Analog Channel Modulator
-
Free Project Design Rf Modulator Catv Headend Rf Modulator 16 Channels
-
Easy Installation White Single Port Plastic Gpon Onu One Port Onu
Product Description
Warranty period of 3 years!!
These products are widely used in CATV transmission system and the high power distributing system FTTH requirement. It can be used for CATV analog/digital signal distribution, or match with PON system to construction the triple network integration. (Triple wavelength WDM is optional)
Parameter | Symbol | MIN | TYP | MAX | UNITS | ||||||
Operating Wavelength | λc | 1540 | 1550 | 1565 | nm | ||||||
Saturated Output Power Note1 | Po | 13 | ------ | 33 | dBm | ||||||
Input Power | Pi | -3 | ------ | +10 | dBm | ||||||
Gain | G | ------ | ------ | 30 | dB | ||||||
Noise Figure Note2 | NF | ------ | ------ | 6 | dB | ||||||
Output Power Stability | ΔPo | ----- | ±0.05 | ±0.2 | dB | ||||||
Input Isolator | ISOi | 30 | ------- | ------ | dB | ||||||
Output Isolator | ISOo | 30 | ------- | ------ | dB | ||||||
Input Pump Leakage | PLi | ------- | ------- | -35 | dBm | ||||||
Output Pump Leakage | PLo | ------- | ------- | -45 | dBm | ||||||
Return Loss | RL | ------- | ------- | -45 | dB | ||||||
Polarization Dependent Gain | PDG | ------ | ------- | 0.3 | dB | ||||||
Polarization Mode Dispersion | PMD | ------ | ------- | 0.5 | ps | ||||||
Operating Temperature | Tw | -5 | ----- | 60 | ℃ | ||||||
Storage Temperature | Ts | -40 | ----- | 80 | ℃ | ||||||
Humidity Note | ------ | 10 | ------ | 90 | % | ||||||
Power Supply(1) | Vps | 170 |
| 264 | VAC | ||||||
Power consumption | P | ----- | ----- | 50 | W | ||||||
EDFA Pump Power list | ||
Port | Pump power(W) | Cheap type Pump Power(W) |
4 Port | 10w | 5w |
8 Port | 20w | 10w |
16 Port | 33w | 20w |
32 Port | 70w | 33w |
64 Port | 100w | 70w |
*Don't let the number of pumps go around your purchase, please compare the total power of the pump* | ||
