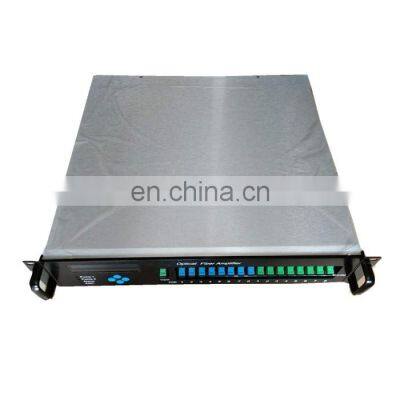

Yatai Warranty period of 3 years!!YHP-1550-8P optical fiber amplifier 8 ports edfa for Optical Distribution
- T/T Credit Card
You May Like
-
Warranty period of 3 years!!2019 The Only Global 19db Cable Tv Edfa 1310 Ftth High Power Edfa
-
Free Project Design Catv Modulator Hotel System Av Rf Modulator
-
XPON 1GE+CATV+WIFI GPON ONU
-
Warranty 3 years FREE GIFTS 1550 16 port 23 dbm EDFA with WDM Optical Amplifier 16 port edfa
-
Easy Operation Modulator Catv Analog Channel Modulator
-
Free Project Design Rf Modulator Catv Headend Rf Modulator 16 Channels
Product Description
Warranty period of 3 years!!
|
Parameter |
Symbol |
Min |
Typ |
Max |
Unit |
|
Wave Length* |
λc |
1530 |
1550 |
1565 |
nm |
|
Saturated Output Power(1) |
Po |
10 |
------ |
33 |
dBm |
|
Input Power |
Δλ |
-3 |
------ |
+10 |
dBm |
|
Noise Factor(2) |
NF |
------ |
4.6@0dBm Input |
5 |
dB |
|
Output Power Stability |
ΔPo |
----- |
±0.05 |
±0.3 |
dB |
|
Optical Return Loss |
RL |
45 |
------- |
------ |
dB |
|
Input Isolation |
ISOi |
30 |
------- |
------ |
dB |
|
Output Isolation |
ISOo |
30 |
------- |
------ |
dB |
|
Polarization Dependent Gain |
PDG |
------ |
------- |
0.5 |
dB |
|
Input/Output Optical Connector |
SC/APC |
------ |
------ |
------ |
------ |
|
C/N |
------ |
50 |
------ |
------ |
dB |
|
C/CTB |
------ |
63 |
------ |
------ |
dB |
|
C/CSO |
------ |
63 |
------ |
------ |
dB |
Applications
Analog CATV long distance transmission
For video optical Transmission system
Optical Distribution System
FTTH system
Features
Low noise figure: Typical<4.5dB (0dBm input)
Extremely low CSO distortion:<-70dBc
Dual Power can plug high quality power:220V Mixed interpolation with 48V
High stability and reliability: MTBF>100000 hours
Network management Agent use hot swap
Perfect Network management interface: Ethernet,RS-485 and RS-232
Support Telnet and standard SNMP Network management
High precision AGC/APC circuit: Precision is ±0.05dB
Intelligent Temperature Control System: Power consumption and hot radiation reduce
30% than common products
Flexible mechanical and circuit structure(including pure module, Electric module, desktop and 1U structure)
OEM is available
Compatible with BellcoreGR-1312-CORE
|
EDFA Pump Power list |
||
|
Port |
Pump power(W) |
Cheap type Pump Power(W) |
|
4 Port |
10w |
5w |
|
8 Port |
20w |
10w |
|
16 Port |
33w |
20w |
|
32 Port |
70w |
33w |
|
64 Port |
100w |
70w |
|
*Don't let the number of pumps go around your purchase, please compare the total power of the pump* |
||
