15kw-75kw Double shaft high speed dissolver two shaft disperser
- 1000 per Month
- T/T Credit Card
You May Like
-
three shafts high speed and slow speed dispersion blender mixer multi-shafts disperser mixer
-
Triple shaft high speed and slow speed dispersion blend mixer
-
China supplier good price paint mixing 11kw high speed disperser machine factory
-
China supplier good price chemical mixer disperser high speed paint mixing machine
-
30hp water based and solvent based high speed paint blender mixer with CE,ISO
-
FS7.5kw fully explosion proof solvent based high speed paint dissolver mixer
Product Description

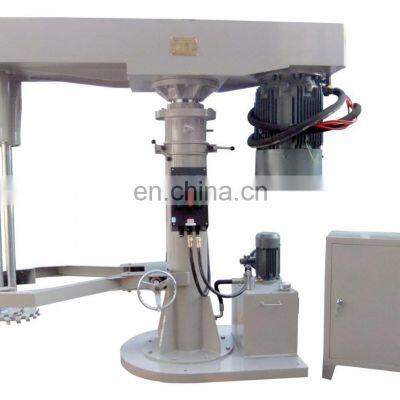

15kw-75kw Dual shaft high speed dissolver chemical disperser blender mixer
1.Detailed Product Discription:
This series of paint single shaft high speed mixer are widely used in painting,dyeing,pigment,medical and papermaking and other industries
The equipment is characterized by: minimum included air during mixing and dispersion, perfect solid-liquid mixing and dispersion effect,and fast dissolution and fine particles during high and medium-speed dispersion process.
2.Main Technical Parameters:
| model | disc size(mm) | main motor power (kw) | Rotational speed(rpm) | pump power (kw) | lifting strock(mm) |
| FS22kw | 300 | 22 | 0-1500rpm | 1.1 | 1200 |
| FS30kw | 350 | 30 | 0-1500rpm | 1.1 | 1200 |
| FS37kw | 350 | 37 | 0-1500rpm | 1.5 | 1200 |
| FS45kw | 400 | 45 | 0-1500rpm | 1.5 | 1200 |
| FS55kw | 450 | 55 | 0-1500rpm | 1.5 | 1200 |
| FS75kw | 450 | 75 | 0-1500rpm | 1.5 | 1200 |
3.Remarks:
1)The above listed mixing capacity is cauculated as per water medium.
2)The disperser we made can be with the max.power of 132kw.
3)Electric control cabinet and all electrical elements are explosion proof.
4)The power supply can be customized.
01 Warranty
We ensure one year warranty,life-long service and provides technical support free of charge within warranty.We provide repair service for free(Excluding force majeure damage and artificial damage).
02 Pre-Sale Servic
Our enginner team could provide you with design of complete machine production line.We have our own laboratory in factory and could help clients to do test run of your material,generate lab report and guide your actual production.
03 On-Sale Service
Our factory will manufacture the good quality machines and equipment and test all machines well before dispatch.
04 After-Sale Service
Our engineers will be standby for 24 hours to provide you with prompt solution.We could send technicians to factory to help you install the machines,train your workers to operate and help with the debugging.
05 Spare Parts Service
All wear and easy-broken parts of all machines are available at any time you need.Our enginner will provide you with spare parts scheme before sending the machines to help you know when it is required to change the parts so that to avoid any delay of production.
