China Hot Sale 3 Roller Mill Machine for Paints and Inks
- T/T Credit Card
You May Like
Product Description

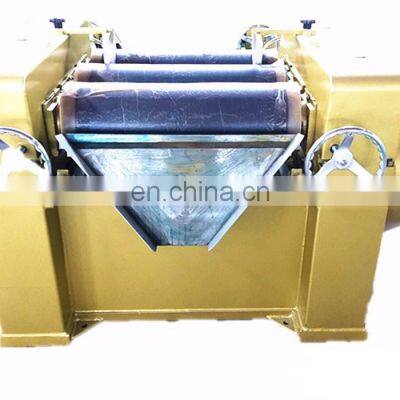

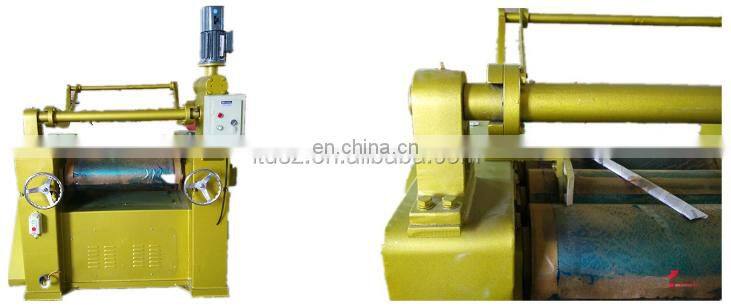

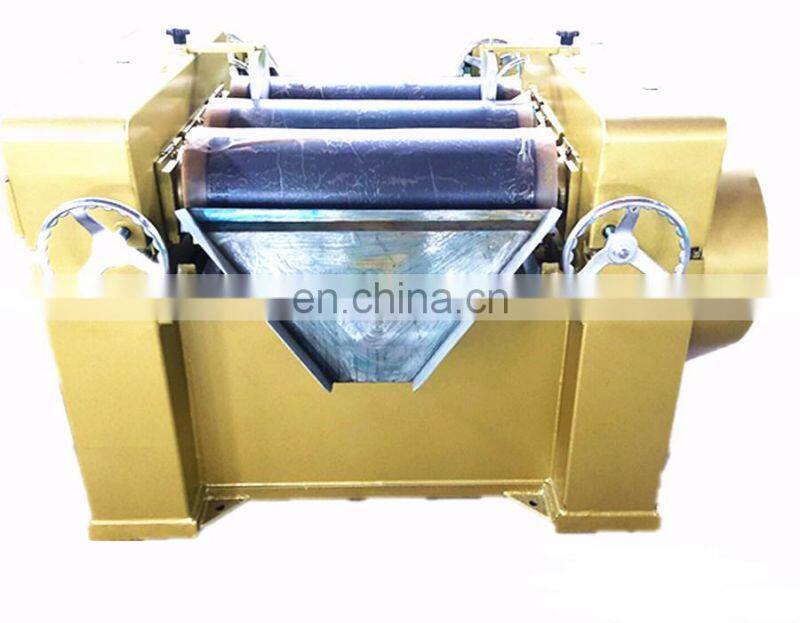

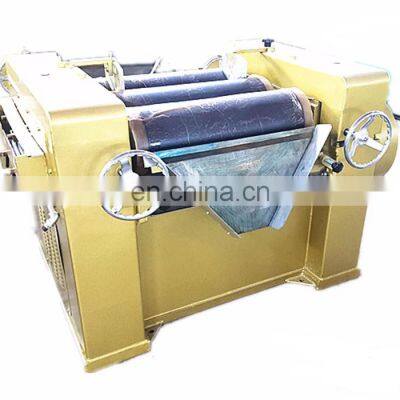

China hot sale 3 roller mill machine for paints and inks
1.Detailed Product Description:

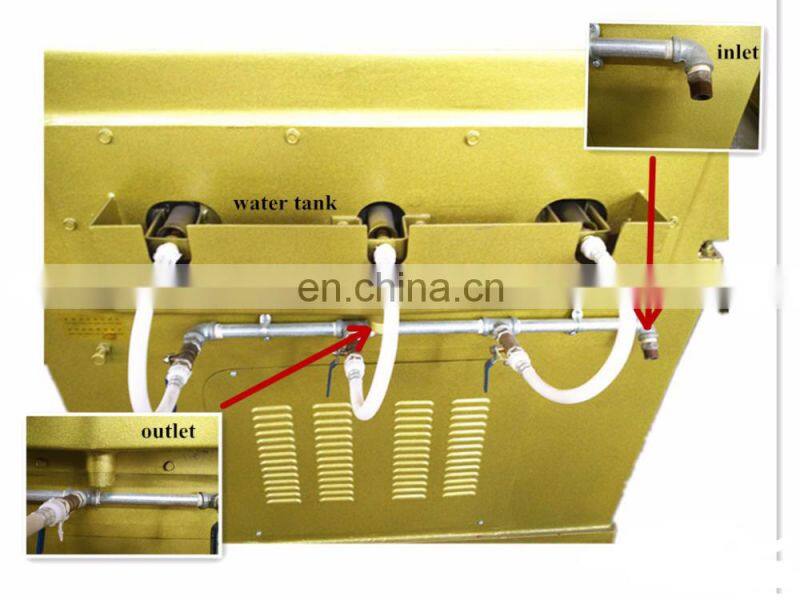

This series of three roll mill are specially applied in polishing the materials with dispersitivity, high viscosity, and fineness.The roller is poured by the chilling cast alloy iron. Crystal close,the intensity is high. The surface has the high degree of hardness and the wear-resisting. It is equipped with the cooling system.We also produce the electric heating,steam heating type 3-rollers mill and each kind of specification 3-rollers mill such as granite roller, ceramic roller, never rusty roller.

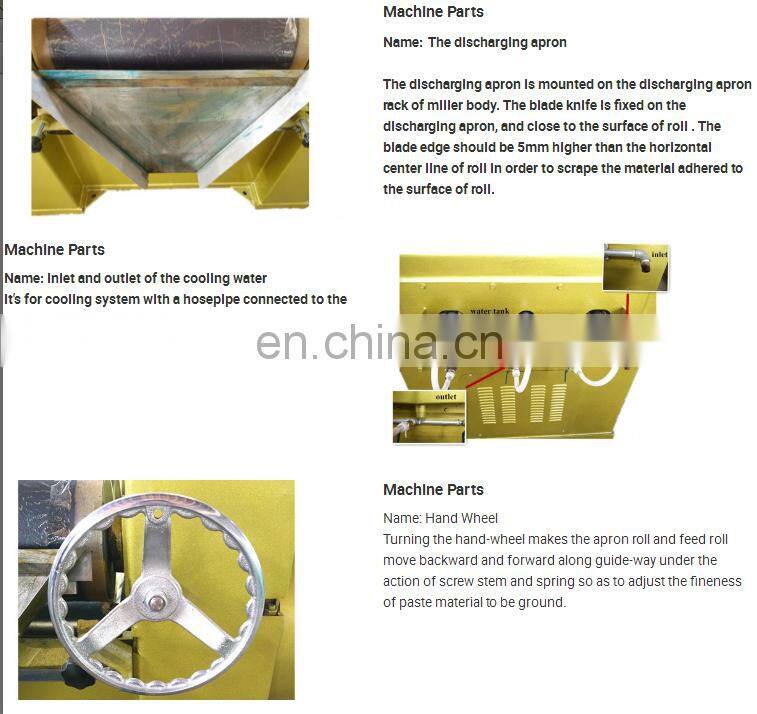

The machine effects in polishing through extruding and wearing in three rollers.
2.Main Technical Parameter:
| Model | S65 | S150 | S200 | S260 | S315 | SM405 | ||
| Diameter | mm | Φ65 | Φ150 | Φ200 | Φ260 | Φ315 | Φ405 | |
| Length | mm | 125 | 300 | 500 | 695 | 760 | 810 | |
| Speed | slow | r/min | 32 | 25.3 | 20 | 19.1 | 19 | 15 |
| Mid | r/min | 89 | 63.2 | 55 | 54.5 | 54 | 45 | |
| Fast | r/min | 250 | 152 | 155 | 155 | 155 | 135 | |
| Motor | Type | YS7144 | Y100L1-4 | Y112M-4 | Y160M-6 | Y160L-6 | Y180L-6 | |
| Power | kw | 0.75 | 2.2 | 4 | 7.5 | 11 | 15 | |
| Speed | r/min | 1400 | 1420 | 1420 | 970 | 970 | 970 | |
| Rotio of speed | 1:2.8:7.8 | 1:2.5:6 | 1:2.8:8.1 | 1:2.8:8.1 | 1:2.8:8.1 | 1:3:9 | ||
| Dimension(L×W×H) | mm | 420×400×440 | 820×800×920 | 1180×1120×980 | 1645×1350×1100 | 1720×1550×1180 | 2150×1980×1250 | |
| Weight | kg | 80 | 500 | 750 | 2100 | 2800 | 5200 | |
