FS-series high speed paint double shaft disperser mixer for paint
- 1000 per Month
- T/T Credit Card
You May Like
-
China good supplier low speed mixing paddle mixer manufactured as per customer's request
-
FS high speed paint dual shaft dissolver mixer
-
Anti-explosive paint dissolver mixer single shaft high speed dissolver
-
FS55kw(75HP) high speed double shaft paint mixer with two-layer dispersing disc blades
-
China hot sale high speed disperser fully explosion proof chemical disperser mixer machine factory
-
200L double planetary mixer with jacket cooling tank
Product Description

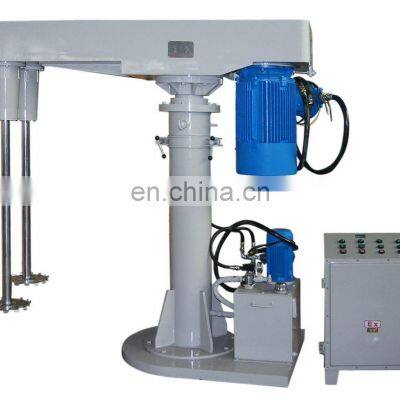

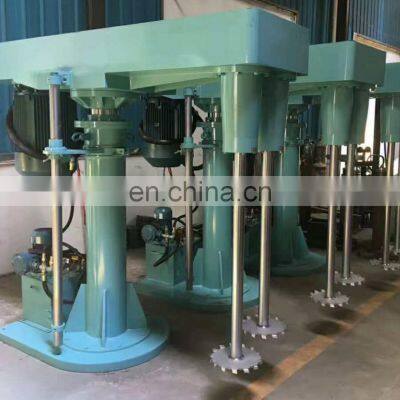

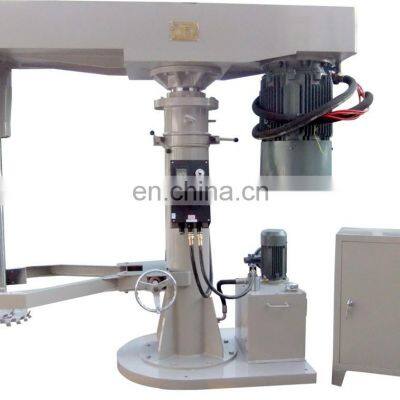

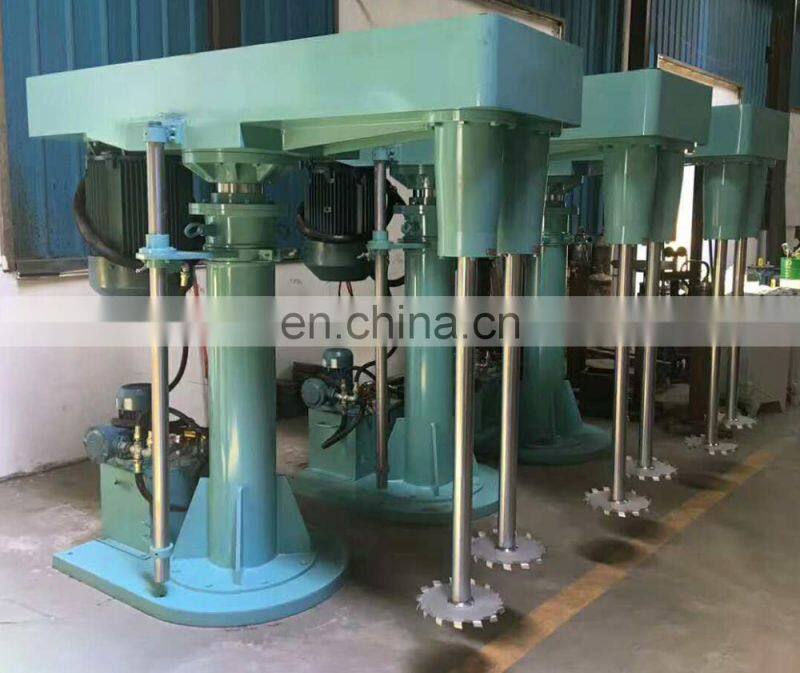

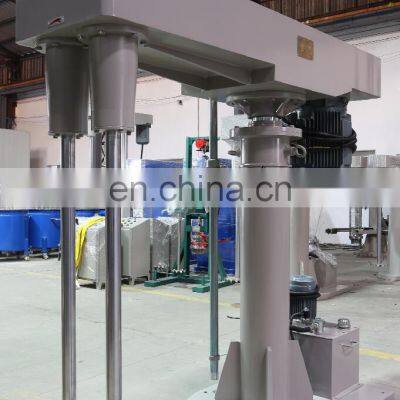

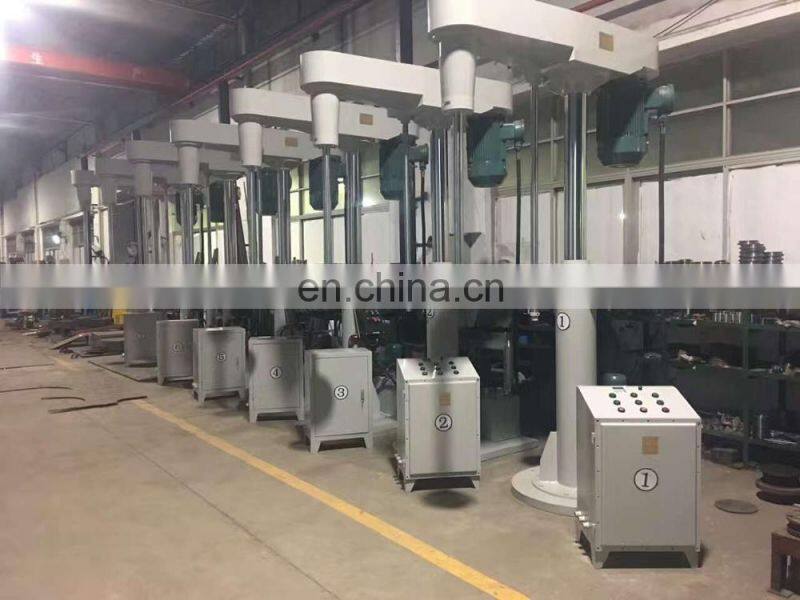

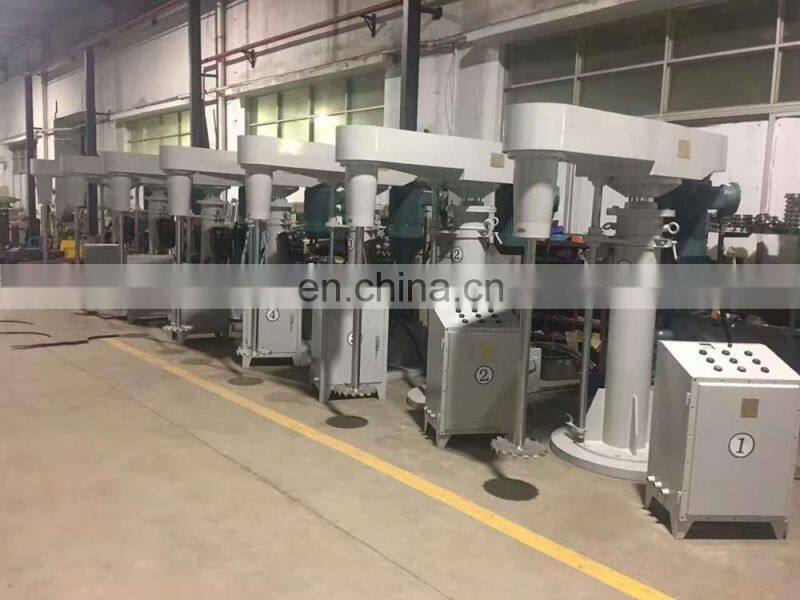

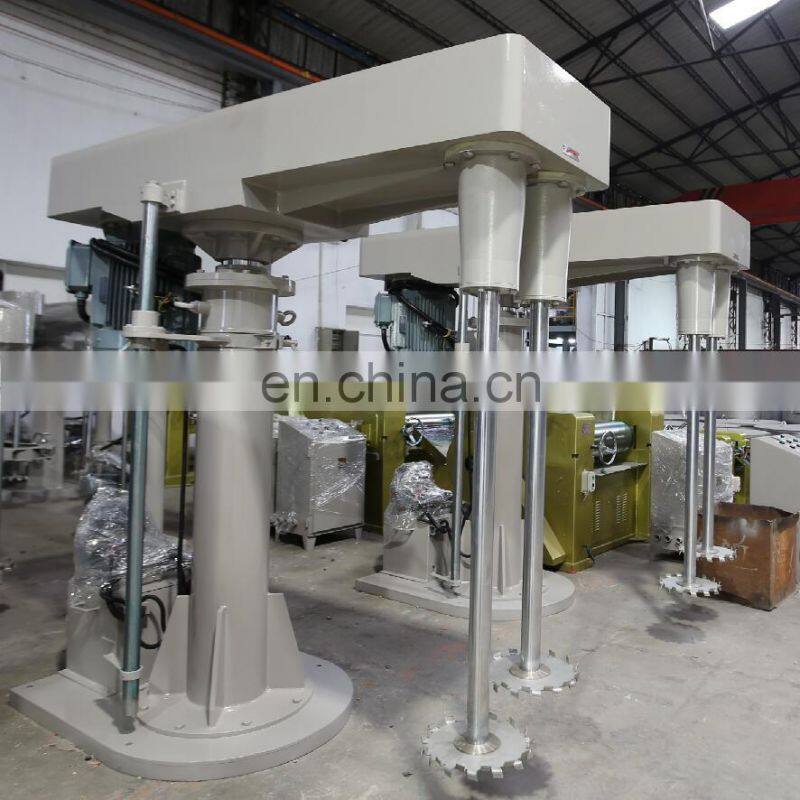

FS-series high speed paint double shaft disperser mixer for paint
1.Descriptions:
| Application | Our double shaft disperser is applied to the dissolution,mixing and dispersion of materials such as paint,ink,dyes,pigment,medical,papermaking and other industires. | ||||||
| Features | 1.Suitable for all kinds of liquid to premix,disperse and color-matching. 2.It can process different kinds of viscosity and capacity of coatings 3.Variable speed control with inverter | ||||||
| Motor and Inverter | 1.Power supply:380V,50Hz,3Phase(can be customized) 2.Brand:Motors and inverters we equipped are made-in-china.But they are also can be others brands such as ABB,Siemens motors and OMRON inverters at customer's request | ||||||
| Dispersing shaft | Can be one,two or multi-shafts;stainless steel material, | ||||||
| Rotational speed | Can be 0-1500 rpm or 0-3000rpm,high speed mixing | ||||||
| Dispersing Discs | Cowles Disc and Fillworth Disc | ||||||
| Lifting way | Hydraulic(oil)lifting | ||||||
| Material | 1.The part contact with the materials is SS304,SS316 or SS316L at your material PH 2.Hydraulic pressure oil cylinder:By chrome-plated on the surface of carbon steel | ||||||
| Electric control cabinet | Can be ordinary or on-spot explosion-proof models according to the material is water-base or oil-based | ||||||
| Anti-explosion devices | Motors,electromagnetic valves;electric control box and all outside electrical wires are in explosion-proof tubes | ||||||
| Tank arm/clamp device | Equipped for making the mixing tank unmovable when mixing | ||||||
2.Main technical parameters:
| model | disc dia. | Main motor power | rotational speed | pump power | lifting stroke | ||
| FS22S | 300mm | 22kw | 0-1470rpm | 1.1kw | 1200mm | ||
| FS30S | 350mm | 30kw | 0-1480rpm | 1.1kw | 1200mm | ||
| FS45S | 400mm | 45kw | 0-1480rpm | 1.5kw | 1200mm | ||
