200L Double Planetary Mixer With Jacket Cooling Tank
- T/T Credit Card
You May Like
-
S65 Lab Scale 3 Roll Mill Machine for Printing Ink Used in Laboratory
-
ST65 Lab Ceramic 3 Roll Mill With Zirconia Rollers for Plant Beverage
-
ST65 Ceramic Lab Thriple Roll Mill With Zirconia Rollers for Lipstick
-
S150 Ink Triple Roll Mill With Hard Alloy Chilled Rollers
-
S260 Three Roll Mill for Soap Use
-
China Hot Sale 3 Roller Mill Machine for Paints and Inks
Product Description

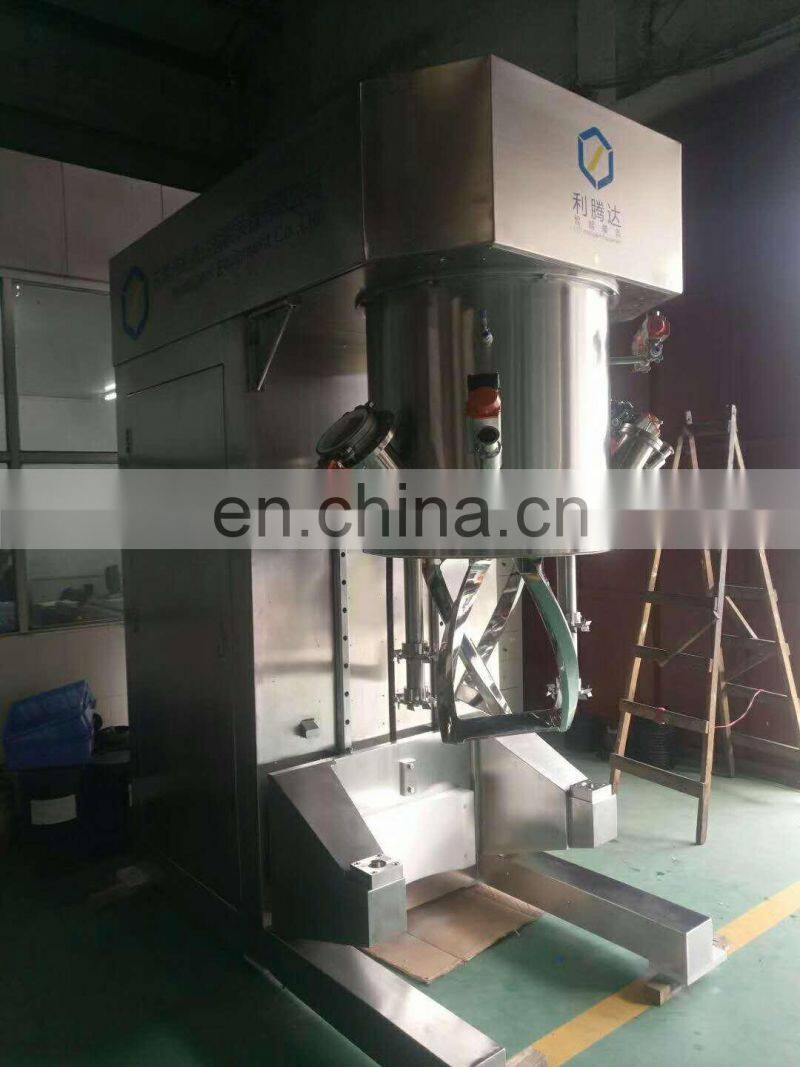

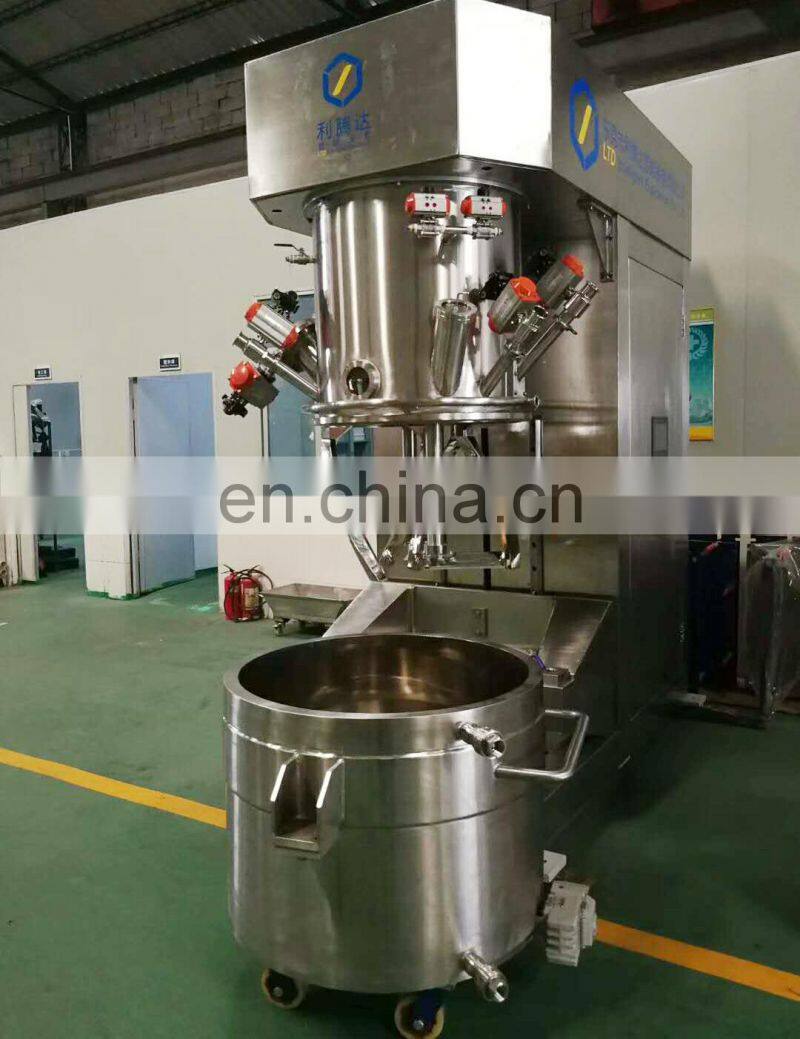

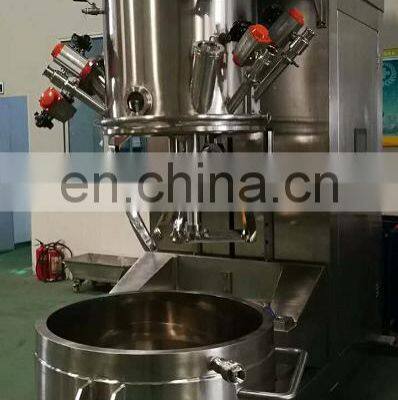

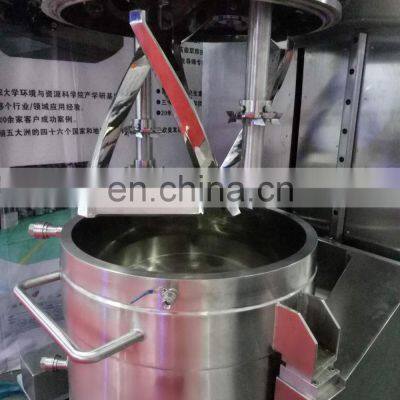

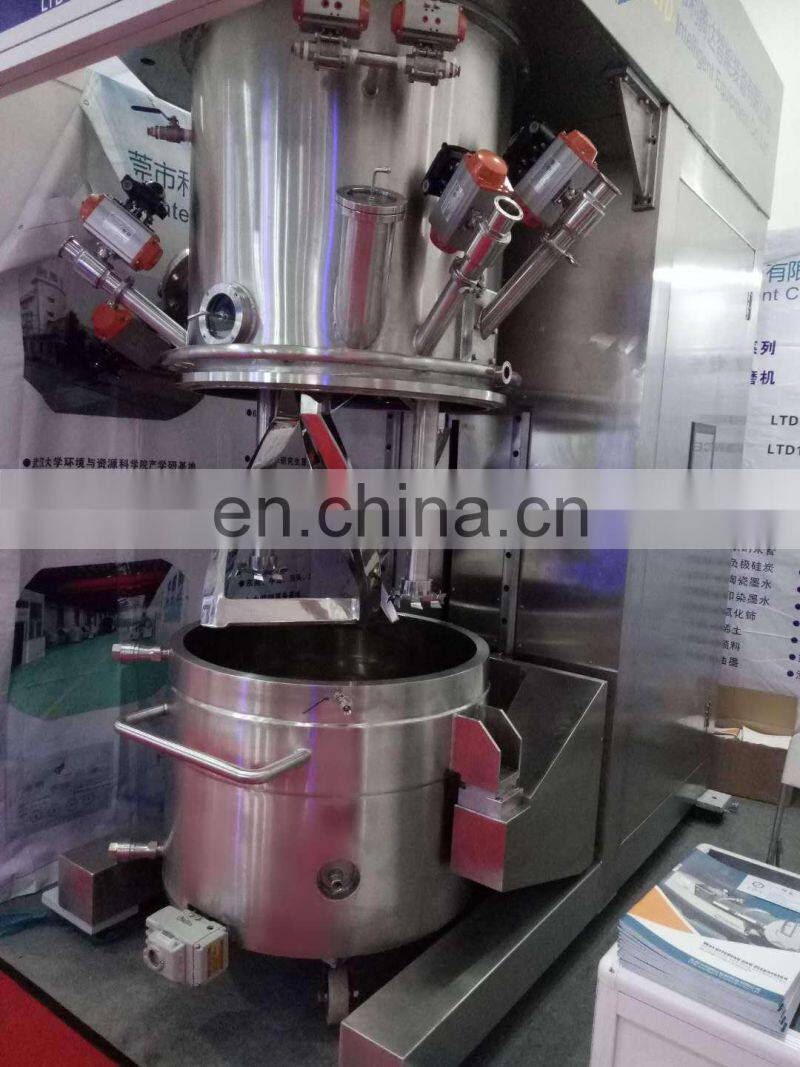

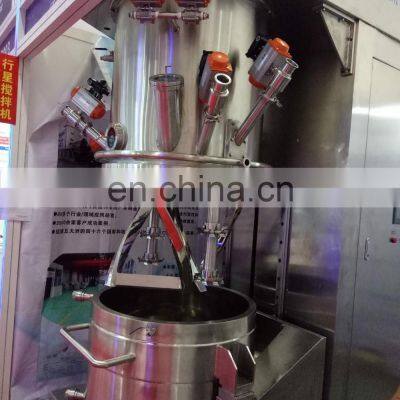

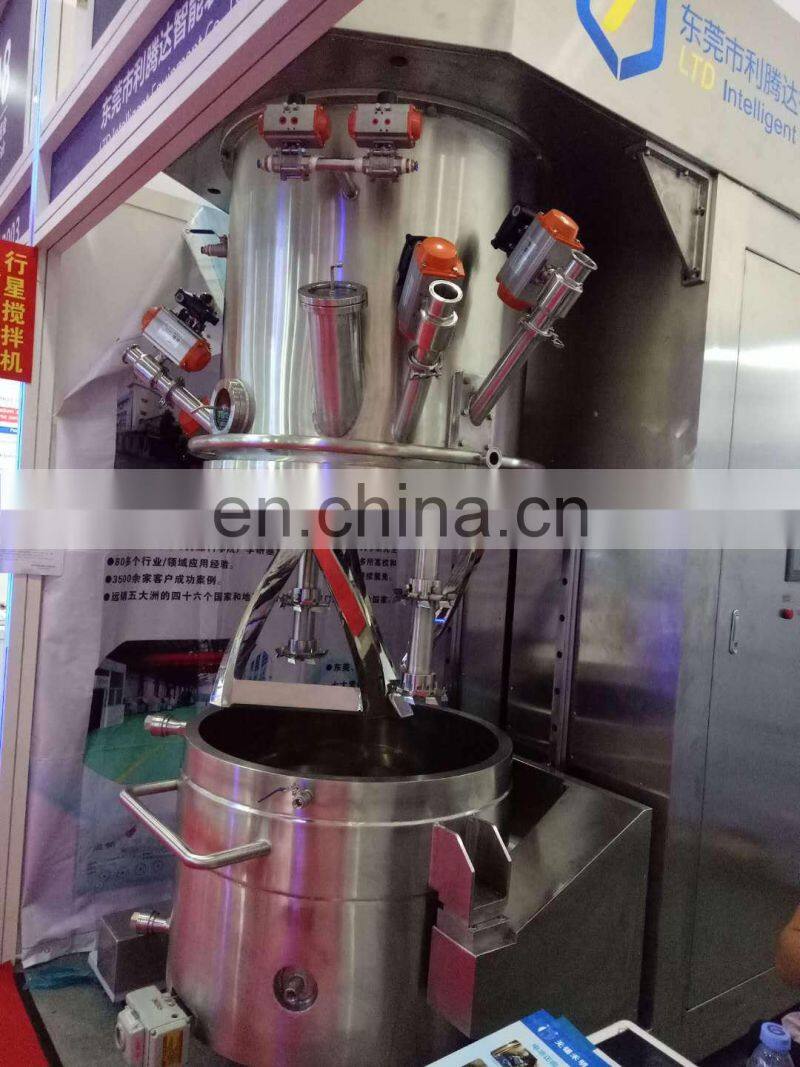

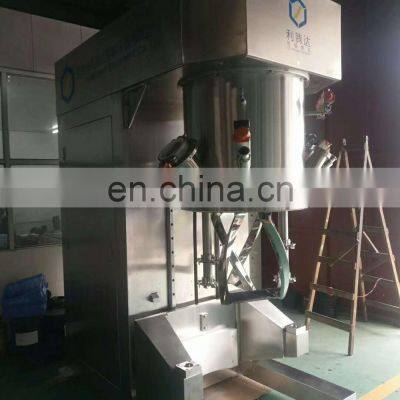

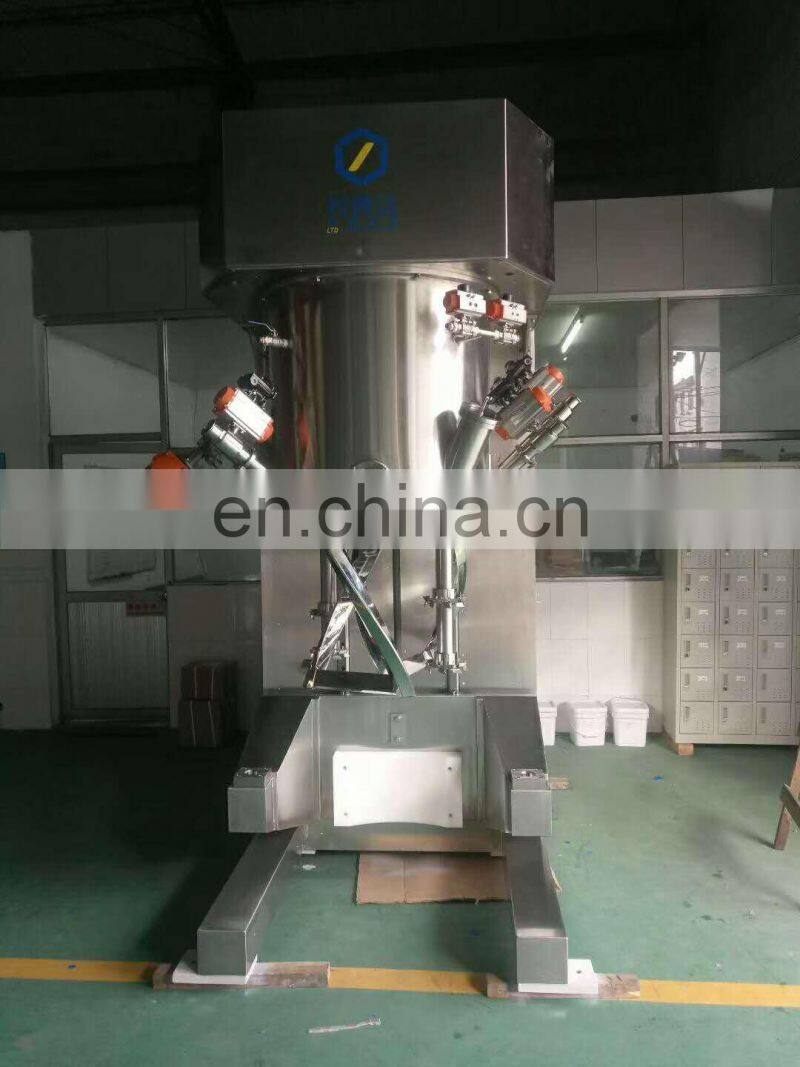

200L double planetary mixer with jacket cooling tank
1.Decription:
LTD Double Planetary Mixer is a new hybrid decentralized equipment introduced by our company. This equipment integrates the functions of a planetary machine and a powerful disperser. It uses a unique stirring mechanism to disperse shafts and agitating paddles to make revolution and planetary motions. It can be variable frequency speed control to make the material for complex movements, and it is subjected to strong shearing, kneading and dispersion. The cylinder barrel has automatic scraping and scraping device to scrape the material adhered to the cylinder wall to achieve no dead point. It is an ideal equipment for chemical, food, new energy, viscose, electronic and electrical appliances, fluorosilicone, pharmaceuticals, cosmetics, daily chemical and other industries. The machine consists of base, beam, column, cylinder head, cylinder, cylinder , transmission, electronic control, and hydraulic system components.
2.Technical Parameters:
| Model | LTD-GND200L | LTD-GND300L | LTD-GND650L |
| Design Volume | 301L | 368L | 867L |
| Mixing Power | 18.5kw | 22Kw | 45kw |
| Dispersing Power | 22kw | 30kw | 55kw |
| Revolution Speed | 0-29RPM | 0-29RPM | 0-29RPM |
| Mixing Speed | 0-36RPM | 0-36RPM | 0-32RPM |
| Dispersing Speed | 2370RPM | 2370RPM | 1500RPM |
| Overall Dimension | 2200*1520*2900mm | 2800*1860*3200mm | 3374*2030*3617mm |





01 Warranty
We ensure one year warranty,life-long service and provides technical support free of charge within warranty.We provide repair service for free(Excluding force majeure damage and artificial damage).
02 Pre-Sale Servic
Our enginner team could provide you with design of complete machine production line.We have our own laboratory in factory and could help clients to do test run of your material,generate lab report and guide your actual production.
03 On-Sale Service
Our factory will manufacture the good quality machines and equipment and test all machines well before dispatch.
04 After-Sale Service
Our engineers will be standby for 24 hours to provide you with prompt solution.We could send technicians to factory to help you install the machines,train your workers to operate and help with the debugging.
05 Spare Parts Service
All wear and easy-broken parts of all machines are available at any time you need.Our enginner will provide you with spare parts scheme before sending the machines to help you know when it is required to change the parts so that to avoid any delay of production.
