Product Description

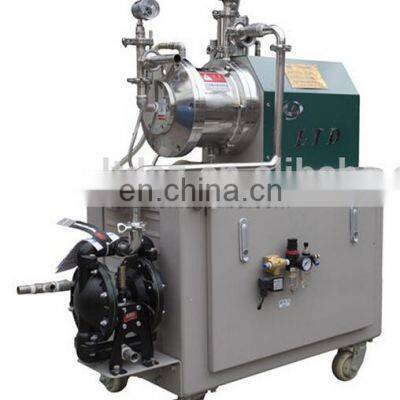

6 L bead mill machine with nanometer final grinding series
The series Mill apply to grind wetting material with low to high viscosity, widely use in paint production and ink production. Nanoscale grinding, environmental protection, no pollution
Parameters
Model : LTD0615BW
Capacity :6L
Drive motor :15KW
Grinding media 0.1-1.0
Product capacity :280 Liter/hr
Dimension (mm) :1300*710*1600
Weight : 500Kg
| Model | Capacity(L) | Drive motor(KW) | Grinding media (mm) | Product capacity(L/hr) | Dimension(mm) | Weight (kg) |
| LTD0.5-2.2BW | 0.5 | 2.2 | 0.05-1.0 | 0.5-2 | 475*460*550 | 90 |
| LTD0104BW | 1 | 3.7 | 0.1-1.0 | 0.5-4 | 520*460*620 | 100 |
| LTD0615BW | 6 | 15 | 0.1-1.0 | 280 | 1300*710*1600 | 500 |
| LTD1022BW | 10 | 22 | 0.05-1.0 | 480 | 1430*860*1780 | 1300 |
| LTD2022BW | 20 | 22 | 0.05-1.0 | 1800 | 1800*950*1800 | 1600 |
| LTD3045BW | 30 | 45 | 0.1-1.0 | 2000 | 1830*950*1850 | 1800 |
| LTD6075BW | 60 | 75 | 0.2-2.0 | ≥2500 | 2230*1050*2200 | 3500 |
| LTD150160BW | 150 | 160 | 0.2-2.0 | ≥4000 | 2900*1400*2600 | 6500 |
Application
Coating & Paint, Printing Ink, Dye & Pigment, Flavors, Food, Medicine. Cosmetics, Resin,Adhesive, Construction Material, Pesticides, Papermaking Chemical, Lubricant, Lithium Battery Mate, Surfactant, Hard Materials & Cer, Agricultural Chemicals, Electronic Chemical, Oil-field Chemical and other Products.
Features
Horizontal Mill is the kind of wet milling machine which apply to continuous production.
Transportation pump: Diaphragm Pump,
Germany Burgamann mechanical seal, which could completely avoid leakage.
Adapt dymanmic trapezoidal fence of discharge method to avoid stuck the grinding media.
Grinding chamber adopts high chorme steel, thinkness 10mm,the hardness can reach HRC62, wearing resistance is harder than nitration case.
Adapt spiral cooling system, efficiently cool down the temperature of the grinding chamber.
L/C,T/T,Escrow
45 working days upon deposit
Dongguan China
1 set
Fumigation wooden cases
own laboratory
The guarantee period of machine except spare parts will be one year.The problem caused by wrong operation of workers shall not be responsible by our company
