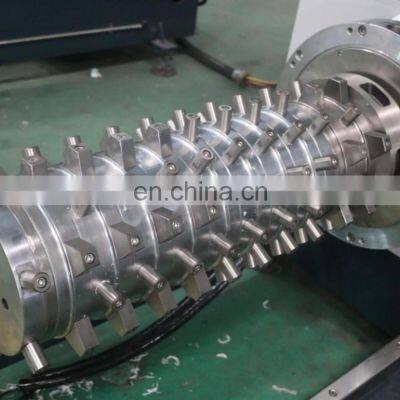

LTD30B fast production 30L capacity pigment pin type horizontal sand mill
- T/T Credit Card
You May Like
-
China large capacity 50L pin type bead mill horizontal attritor mill
-
LTD30E Disc Type Horizontal Bead Mill with 30L Grinding Capacity
-
LTD30N Horizontal Pin Type Nanoscale Bead Mill with PU Rotor
-
LTD30BB 30L cylinder capacity super fine grinding pin type horizontal sand mill machine
-
LTD5030E china hot sale common disk mill machine with 50L grinding capacity
-
Super fine grinding 5L capacity pin type lab nano bead mill
Product Description
LTD30B fast production 30L capacity pigment pin type horizontal sand mill
1.What application industry this pin type bead mill can be used?
Printing inks Flexible pringing inks
Screen Printing ink Automobile finish
Woodenware Paint Varnish
Coil paint Industrial metallic paint
Industrial anti-corrosion coatings Waterborne color paste
2.What's the electrical parameters of this bead mill is?
Modle | LTD-2022BX | LTD-3030BX | LTD-5045BX | |||
Main motor(KW) | 22-30 | 30-37 | 45 | |||
Adjustadle speed motor for feed | KW | Range | KW | Range | KW | Range |
1.1 | 200~40 | 1.1 | 300~60 | 1.1 | 300~60 | |
Diaphragmpump (IMPORTED) | 1" | 1" |
| |||
Hydraulic oil motor | KW | Pressure | KW | Pressure | KW | Pressure |
0.7 | 20 bar | 0.7 | 20 bar | 0.7 | 20 bar | |
Chamber volume(L) | 20 | 30 | 50 | |||
Adjustable capacity(L) | 5 | 8 | 10 | |||
Cooling motor(KW) | 0.18 | 0.18 | 0.18 | |||
Total length(A) | 1420 | 1876 |
| |||
Total width(B) | 866 | 942 |
| |||
Total height(C) | 1510 | 1640 |
| |||
Weight(KG) | 1100 | 1320 | 1500 | |||
Operation data | Material pressure:0-0.6MPa,Temp.0-100°C Curuent intensity:0-500A,Time summary counter(option) | |||||
Operation elements | Main motor&pump(on,off) feed pump(on,off) Oil pump(on,off) emergency,signal light | |||||
