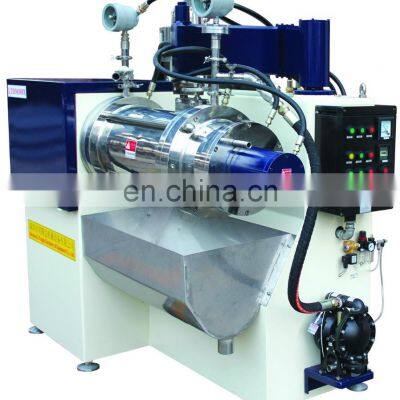

LTD30B fast production 30L capacity pigment horizontal pin bead mill
- 1000 per Month
- T/T Credit Card
You May Like
-
China good quality 5-60L capacity disc type horizontal bead mill
-
color pigment printing ink make machine/conical superfine sand mill
-
China good supplier disc type horizontal ink ball mill grinding machine
-
High effciency sanding grinder industry German tech Micro grinding mill
-
16 Liters capacity attritor mill UV offset ink sand mill high viscosity bead mill
-
30L capacity high efficiency large flow disc turbo type horizontal grinder mill with big production
Product Description
LTD30B fast production 30L capacity pigment horizontal pin bead mill
1.What application industry this pin type bead mill can be used?
Printing inks Flexible pringing inks
Screen Printing ink Automobile finish
Woodenware Paint Varnish
Coil paint Industrial metallic paint
Industrial anti-corrosion coatings Waterborne color paste
2.What's the electrical parameters of this bead mill is?
Modle | LTD-2022BX | LTD-3030BX | LTD-5045BX | |||
Main motor(KW) | 22-30 | 30-37 | 45 | |||
Adjustadle speed motor for feed | KW | Range | KW | Range | KW | Range |
1.1 | 200~40 | 1.1 | 300~60 | 1.1 | 300~60 | |
Diaphragmpump (IMPORTED) | 1" | 1" |
| |||
Hydraulic oil motor | KW | Pressure | KW | Pressure | KW | Pressure |
0.7 | 20 bar | 0.7 | 20 bar | 0.7 | 20 bar | |
Chamber volume(L) | 20 | 30 | 50 | |||
Adjustable capacity(L) | 5 | 8 | 10 | |||
Cooling motor(KW) | 0.18 | 0.18 | 0.18 | |||
Total length(A) | 1420 | 1876 |
| |||
Total width(B) | 866 | 942 |
| |||
Total height(C) | 1510 | 1640 |
| |||
Weight(KG) | 1100 | 1320 | 1500 | |||
Operation data | Material pressure:0-0.6MPa,Temp.0-100°C Curuent intensity:0-500A,Time summary counter(option) | |||||
Operation elements | Main motor&pump(on,off) feed pump(on,off) Oil pump(on,off) emergency,signal light | |||||
