Product Description

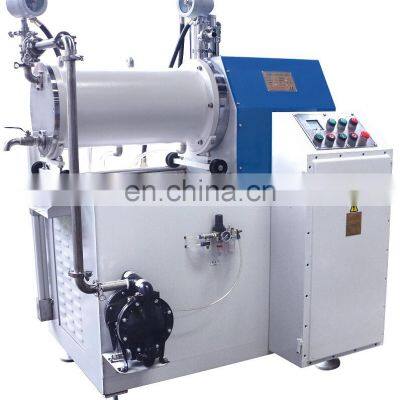

China good supplier 30L capacity ink grinding machine disc type horizontal sand mill factory
Technical parameters of this horiontal sand mill:
Motor:22kw,Explosion proof,380V,50Hz,3Phase
Chamber capacity:30L
Hard alloy steel discs
1” ARO pneumatic diaphragm pump
Double-end mechanical seal
Material feeding inlet & outlet:1”
Working pressure:less than 0.6Mpa
Discharge gap:0.5mm
Standard Configuration(Same as NETZSCH company)
Outer cylinder:carton steel with hard chorme plated
Inner tube:forgings integrated wear - resistant hard alloy steel
Grinding discs:forged wear-resistant hard alloy steel
Discharge:dynamic&static blade(WC Tungsten carbide)
Mechanical seal:Integrated mechanical seal(easy to maintain)Burgmann brand
Spare parts:inlet&outlet feeding pipe-3meters
Application:
Suitble for most common low and medium viscosity materials such as paint,coatings,ink,leather paste,nonmetallic mine etc.
Grining fineness :around 2-20um.
