Product Description

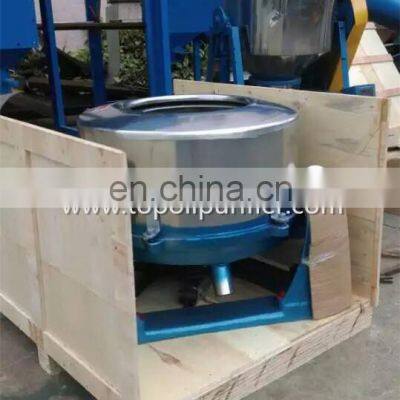

Sludge Dewatering Machine/Coconut Dewatering Machine/Centrifuge Separator
(CTM Series)
Introduction
CTM series centrifugal dewatering machine is based on the former State Textile Industry unified design standards, with the actual use of different materials from research and development; the series centrifugal dewatering machine has reasonable design, simple structure, high efficiency, low wear, low noise, safe and reliable etc., can be widely used in: food, vegetables, fruits, crops, plastic, metal components, textiles and other materials to clean dehydration.
Structure and features

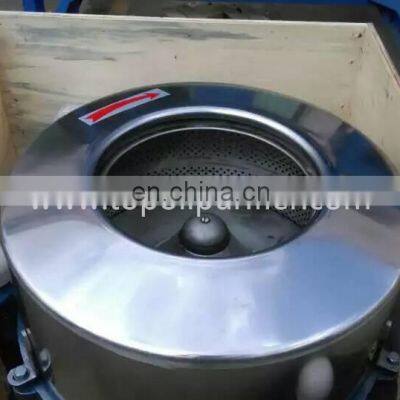

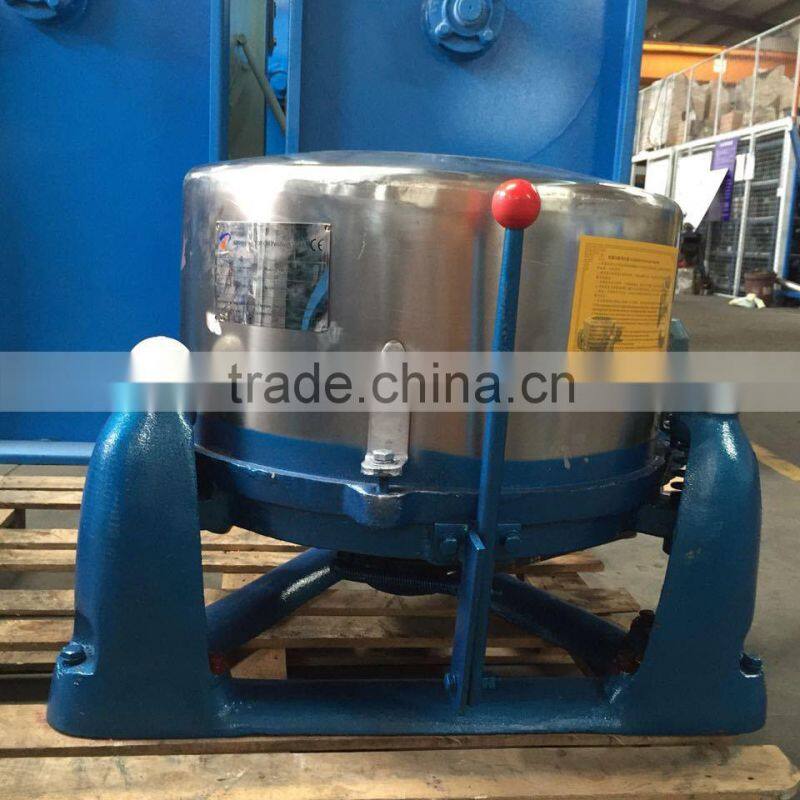

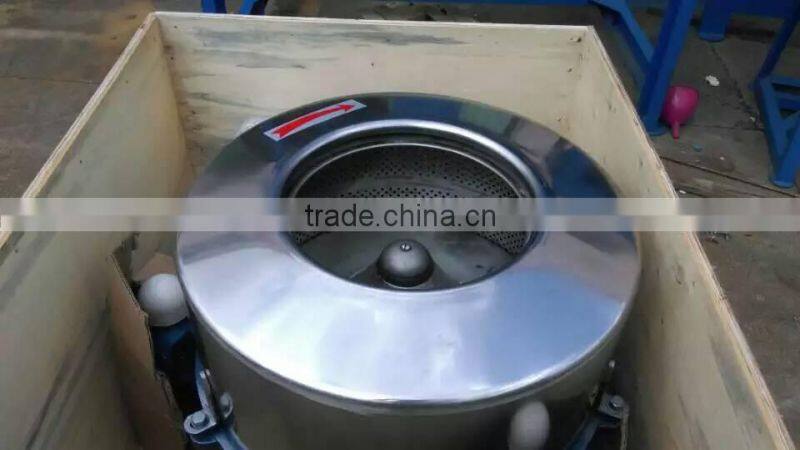

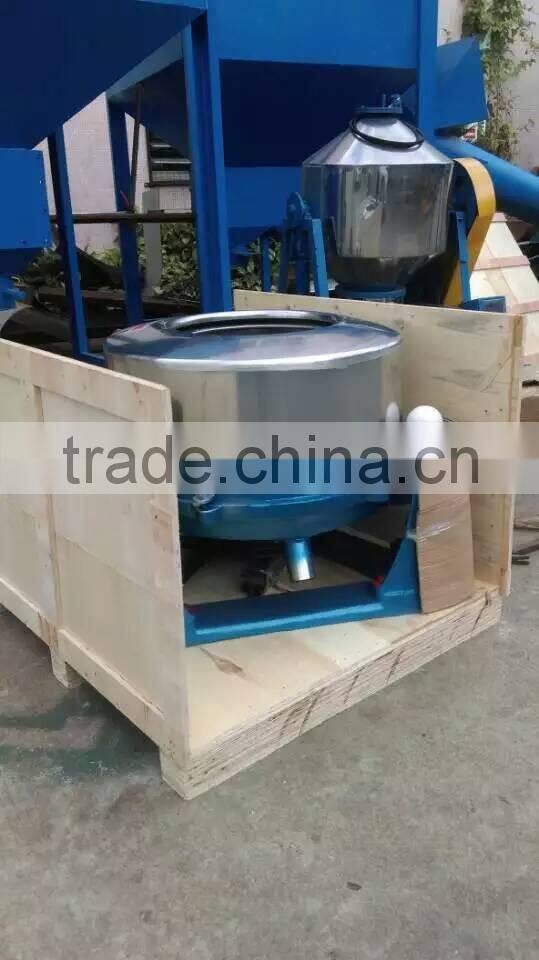

1.CTM series dewatering machine is composed of three-legged stand, 201/304 stainless steel barrel, motors, centrifugal clutches, brakes and other components;
2.Housing, interior are made of stainless steel rolling 201/304 GB, hard and smooth inner surface, with wear and corrosion resistance, easy to clean until the advantage;
3.High-quality solid steel shaft, dual bearing assembly, the bearing is located in the dewatering bin taper to ensure smooth operation, to reduce wear, save power;
4.With a separate motor, triangular tape drive, it is equipped with centrifugal start flange, mechanical slow start, braking efficiency is high, manual drum brakes make quick stops can be avoided because the spindle brake and by the torque;
5.Tilting three-foot overhang base can avoid load imbalance within the drum vibrations generated feet; outlet pipe at the bottom of the base, butt joint pipes, gutters and drainage
Technical Parameters
Model | Inner | Power | Voltage | Load | RPM | Dimensions(mm) |
CTM-500 | 500mm | 1.5KW | 380V | 25Kg | 1000R/MIN | Diameter 950* H650 |
CTM -600 | 600mm | 2.2KW | 380V | 45Kg | 1000R/MIN | Diameter 1000* H750 |
CTM -800 | 800mm | 4KW | 380V | 80Kg | 910R/MIN | Diameter 1000* H750 |
CTM -1000 | 1000mm | 5.5KW | 380V | 150Kg | 910R/MIN | Diameter 100* H750 |
CTM -1200 | 1200mm | 7.5KW | 380V | 220Kg | 750R/MIN | Diameter 1000* H750 |
Trustable technical and after sale service
1. Long-term warranty of 2 years.
2. Provide best necessary spare parts at low price (some for free).
3. Provide timely reply and technical support within 24 hours.
4. OEM is available for TOP Products.
5. Protect your sales area, ideas of design and all your private information.
About us:
Chongqing TOP Group, located at Chongqing city-a southwest electromechanical manufacturing center as well as national municipality,owns Chongqing TOP Oil Purifier Co.,LTD and Chongqing TOP Tester Co.,LTD. TOP is a professional leading manufacturer and supplier of oil purifiers and various testers for petrochemical products and power equipment.
TOP Oil Purifiers provide you with reliable insulting oil purifier, turbine oil purification machine, hydraulic oil purifier, lubricating oil filtration machine, transformer oil filtering machine, fuel oil restoration, steam-turbine oil reconditioner,dielectric fluid regeneration system, circuit-breaker oil recovering system, compressor oil recovering machine, gear oil renewal machine, coolant oil treatment, quenching oil reclaiming machine, oil and water separator, steel-rolling oil regeneration equipment, waste automobile oil recycling equipment etc.

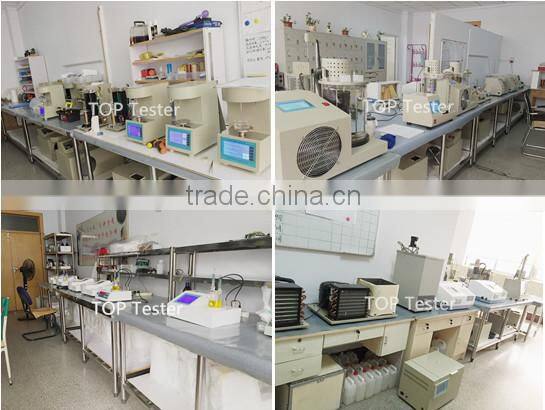

TOP Testers works on the development, production, market, technical and after-sale service for petrochemical analyzers,transformer substation electrical testing equipment and circuit detecting equipment. Main products are trace water content testers, fully auto surface/interfacial tension testers, open/closed cup flash point testers, kinematic viscosity testers, oil acidity testers, air release value testers, multifunctional degassing oscillation instruments, dielectric loss testers, insulation oil dielectric strength testers, transformer characteristics comprehensive testers, relay protection testers, cable testers, high voltage testing equipment etc.
Honest Team - TOP always honestly treat you and keep faith to make you satisfied with every cooperation with us.
Sincere Communication - TOP sincerely communicate with you to guarantee the provided products to be your ideal ones.
Reliable Quality -TOP own high quality and high performance for every TOP product is under strict quality control and testing.
Service Commitment - TOP bring you prompt, considerate and professional aftersale service and technical support, and explore technology future together.

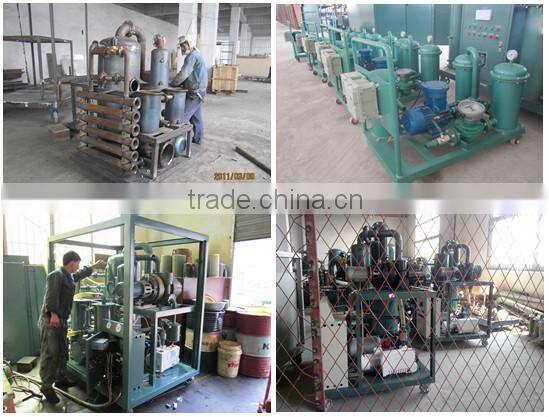

Production and onstock
Oil purifiers:
Testers:

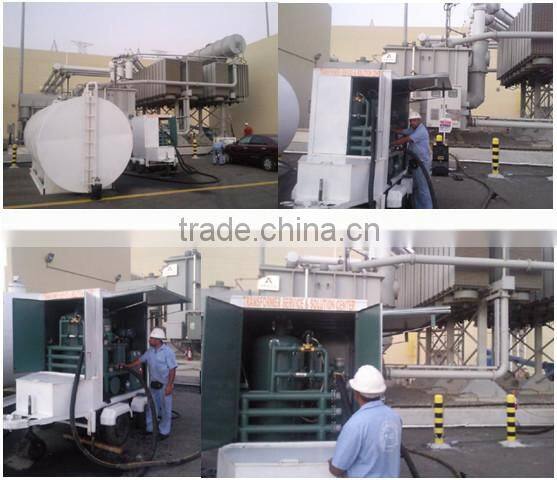

Our customers
You can contact me online or send offline message.
Also you can directly contact me at the following address:
