Cheap Price GYTS 24 Core Single Mode Outdoor Duct Armored Fiber Optic Cable
- T/T Credit Card
You May Like
-
Factory Price Single Mode 6 12 24 48 96 144 Core Outdoor Fiber Optical Cable
-
Factory Price 1 2 4 Cores Core 1km Steel Wire Outdoor G652D G657A1 FTTH Fiber Optic Flat Drop Cable
-
GYTS Outdoor Direct Buried 12 24 48 96 144 288 Core Anti-rodent Single Mode Fiber Optic Cable
-
Outdoor GYTS-6B1.3 6 48 Core Single Mode Armoured GYTS Fiber Optical Cable For Underground Directly Buried
-
4/6/8/12 Core Outdoor GYXTW Armoured Fiber Cable 1000 Meters SM Armoured Cable
-
GYXTW 2 4 6 8 12 20 24 Core FO OFC G652D Fibre Optic Cable for Telecommunications Price per Meter
Product Description

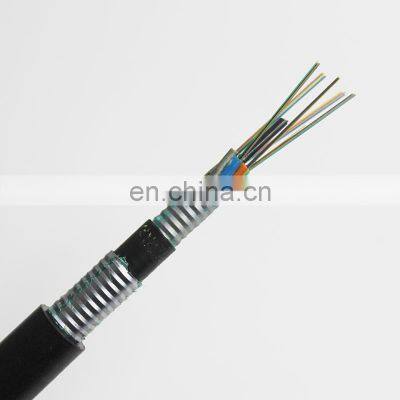

Oudtoor GYXTW Fiber Optic Cable 4 Core 8 Core 12 Core Center Tube Armored Use for Overhead ,Pipe,Buried

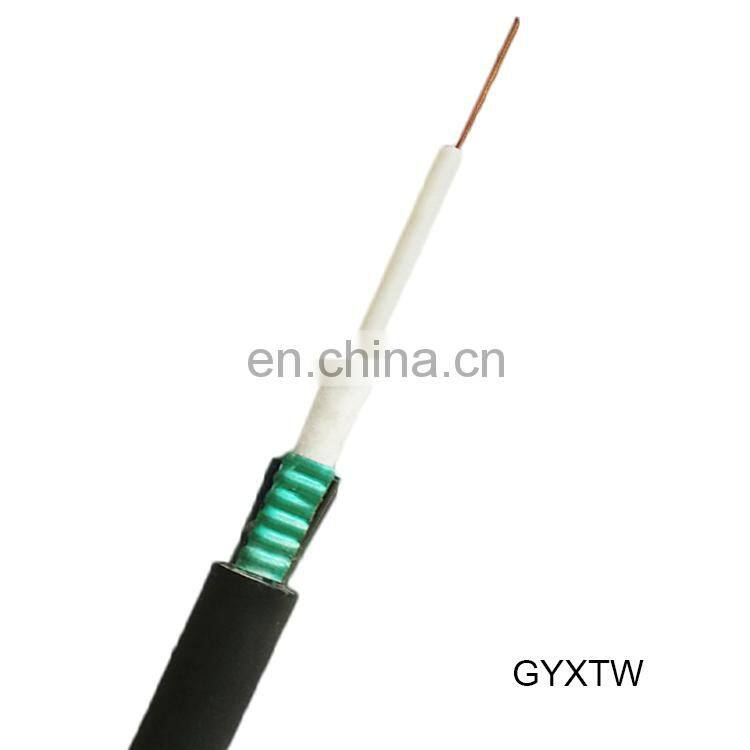

Central loose tube light armored fiber optical cable(GYXTW)

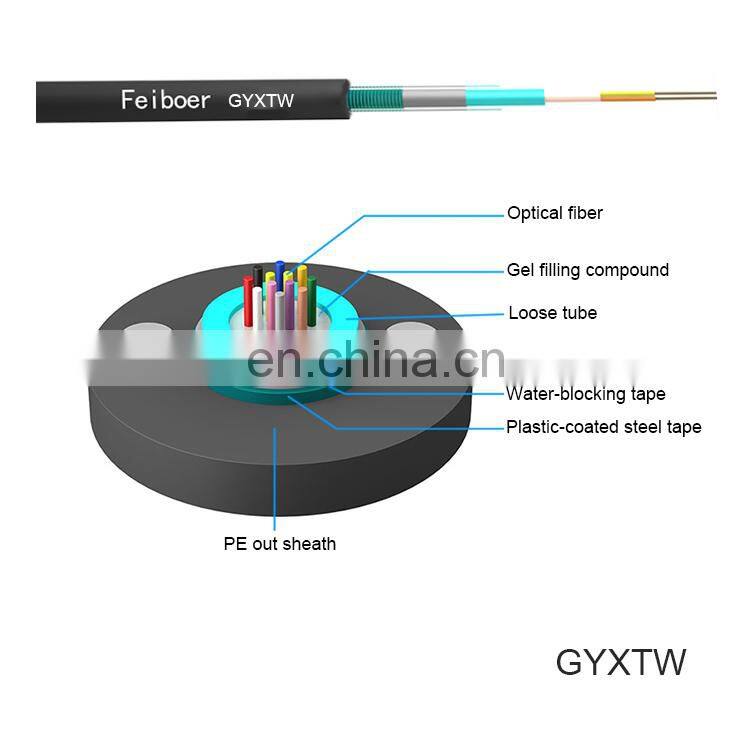

The structure of GYXTW cable is 250µm optical fiber ribbon is inserted into a loose tube of high modulus material. The loose tube is filled with gel filling compound. The loose tube is covered by a PSP longitudinal.Water-blocking material is added between the metallic strength member and loose tube to ensure the compactness of optical cable and longitudinal water seepage of optical cable.Two parallel steel wires are placed on both sides,and then the cable is completed with PE outer sheath.
• Material of loose tube has good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The tube is filled with special filler to provide critical protection for the fiber
• Good lateral pressure resistance and softness
• Double chrome plating plastic-coated steel tape (PSP) improves the moisture resistance of optical cables
• The two parallel steel wires provides enough tensile strength
• Small diameter, light weight, easy for laying
Applications
• Pipeline, overhead
|
Model |
Fiber count |
Tube count |
Filling rope count |
Weight |
Tension Long/Short term |
|
GYXS/GYXTW-2~12Xn |
2~12 |
82 |
600/1500 |
300/1000 |
10D/20D |
|
GYXS/GYXTW-14~24Xn |
14~24 |
127 |
|||
|
GYXS/GYXTW-2~12Xn |
2~12 |
124 |
1000/3000 |
||
|
GYXS/GYXTW-14~24Xn |
14~24 |
147 |
|
Fiber Type |
Fiber attenuation(+20℃) |
Bandwidth |
Numerical aperture |
Cut-off wavelength of optic fiber cable |
||||
|
@850nm |
@1300nm |
@1310nm |
@1550nm |
@850nm |
@1300nm |
|||
|
G.652 |
--- |
--- |
≤0.36dB/km |
≤0.22dB/km |
--- |
--- |
--- |
≤1260nm |
|
G.655 |
--- |
--- |
≤0.40dB/km |
≤0.23dB/km |
--- |
--- |
--- |
≤1450nm |
|
50/125µm |
≤3.3dB/km |
≤1.2dB/km |
--- |
--- |
≥500MHz·km |
≥500MHz·km |
0.200±0.015 NA |
--- |
|
62.5/125µm |
≤3.5dB/km |
≤1.2dB/km |
--- |
--- |
≥200MHz·km |
≥500MHz·km |
0.275±0.015 NA |
--- |
Transport / Storage / Use Temperature: -40 °C ~ +70 °
