Product Description
Product Description

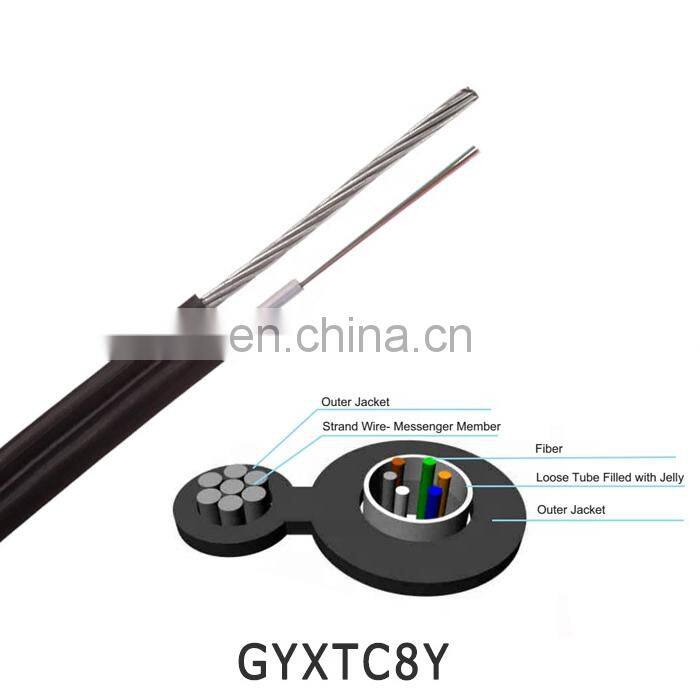

Self-supported figure 8 optical cable with fibers placed in jelly filled loose buffer tube stranded around dielectric central member. The cable core is protected with jelly or waterblocking material to prevent water intrusion and migration. This set unit and galvanized steel messenger are covered with polyethylene outer jacket.
Product Characteristics
• Steel wire strands have extremely high tensile strength, which is convenient for self-supporting overhead laying and reduces installation costs
• With good mechanical properties and temperature characteristics
• Material of loose tube has good hydrolysis resistance and high strength
• The loose tube is filled with special gel, which protect the optical fiber
• Take the following measures to ensure the waterproof performance of the optical cable
-Single metallic wire center reinforced core
-Filled with special Water-blocking material in loose tube
-Complete cable core filling
Technical Performance
|
Model |
Fiber count |
Tube count |
Filling rope count |
Weight (kg/km) |
Tension (N) |
Crush (N/100mm) |
Bending Radius Static / dynamic (mm) |
|
GYXTC8Y-2~6Xn |
2~6 |
1 |
4 |
158 |
According to the diameter of suspension wire |
300/1000 |
10D/20D |
|
GYXTC8Y-8~12Xn |
8~12 |
2 |
3 |
158 |
Environmental Characteristics
• Transport/storage temperature: -40℃ to +70℃
