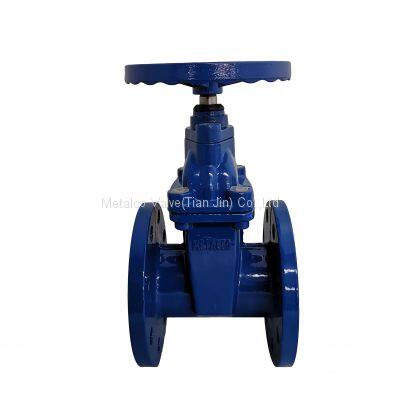

DIN non-rising stem resilient seated gate valve
Negotiable
/ Set
10 Sets(Min.Order)
- 1000 Set / Sets per Month
- TIANJIN
- T/T L/C PayPal
You May Like
Product Details
| Brand Name | METALCO | Place of Origin | China | |
| Model Number | Z45X | Application | General | |
| Structure | Gate | Standard or Nonstandard | Standard | |
| Pressure | Medium Pressure | Power | Manual | |
| Media | Water | Temperature of Media | Medium Temperature |
Product Description
DIN non-rising stem resilient seated gate valve
| Design and Manufacture | Face to Face | Flange End | ||||||||
| DIN3352 | DIN3202 F4 | DIN3252 | ||||||||
Main parts and materials
| No. | Parts Name | Material | ||||||||
| 1 | Valve Body | Ductile Iron | ||||||||
| 2 | Seat | EPDM | ||||||||
| 3 | Disc | Ductile Iron | ||||||||
| 4 | Stem Nut | Brass | ||||||||
| 5 | Stem | SS420 | ||||||||
| 6 | Bonnet | Ductile Iron | ||||||||
| 7 | Bushing | Brass | ||||||||
| 8 | Handwheel | Ductile Iron | ||||||||
| 9 | Bolt | SS410 | ||||||||
| 10 | Nut | SS410 | ||||||||
| 11 | O Ring | EPDM | ||||||||
| 12 | O Ring | EPDM | ||||||||
| 13 | Holding Ring | Brass | ||||||||
| 14 | Sealing Ring | F-4 | ||||||||
| 15 | Gasket | EPDM | ||||||||
| 16 | Bolt | Carbon steel | ||||||||
| 17 | Gasket | EPDM | ||||||||
