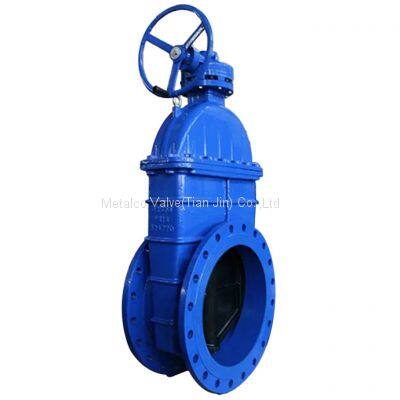

BS Big Size Resilient Seated Gate Valve
Negotiable
/ Set
1 Set(Min. Order)
- TIANJIN
- T/T L/C PayPal
You May Like
Product Details
| Brand Name | METALCO | Place of Origin | China | |
| Model Number | Z45X | Material | Casting | |
| Application | General | Structure | Gate | |
| Standard or Nonstandard | Standard | Pressure | Medium Pressure | |
| Power | Manual | Media | Water | |
| Temperature of Media | Medium Temperature |
Product Description
BS big size resilient seated gate valve
| Design and Manufacture | Face to Face | Flange End | ||||||
| BS5163 | BS5163 | BS4504/EN1092 |
Main parts and materials
| No | Part Name | Material | ||||||
| 1 | Body | Ductile Iron | ||||||
| 2 | Disc | Ductile Iron+EPDM | ||||||
| 3 | Stem Nut | Brass | ||||||
| 4 | Stem | SS420 | ||||||
| 5 | Bolts | Carbon Steel | ||||||
| 6 | Gasket | EPDM | ||||||
| 7 | Gland | Dutile Iron | ||||||
| 8 | Locating | Brass | ||||||
| 9 | O Ring | EPDM | ||||||
| 10 | Gland | Dutile Iron | ||||||
| 11 | O Ring | EPDM | ||||||
| 12 | Bolts | Carbon Steel | ||||||
Outline and connecting measurement
| D | L | D | C | B | n-?d | |||
| PN10 | PN16 | PN10 | PN16 | PN10 | PN16 | |||
| DN700 | 430 | 895 | 910 | 840 | 841 | 794 | 24-?31 | 24-?37 |
| DN800 | 470 | 1015 | 1025 | 950 | 901 | 24-?34 | 24-?40 | |
| DN900 | 510 | 1115 | 1125 | 1050 | 1001 | 28-?34 | 28-?40 | |
| DN1000 | 550 | 1230 | 1255 | 1160 | 1170 | 1112 | 28-?37 | 28-?43 |
| DN1200 | 630 | 1455 | 1485 | 1380 | 1390 | 1328 | 32-?40 | 32-?49 |
