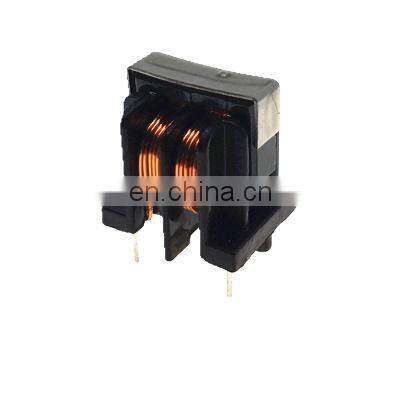

Copper Wire UU10.5-453Y -45mH 0.5A Through-Hole Common Mode Choke Used In Automotive System
- T/T Credit Card
You May Like
-
High Current Rod core Choke Coil Inductor LRC0520-2R5M 2.5uH inductance
-
Rod Choke Coil Inductor LRC0520-7R0M 7.0uH Low Frequency Air Core Chock Inductor
-
New Product Filter Coil Electrical Choke uu9.8 With Competitive Price
-
Common Mode Choke Coil Toroid Filter PFC Inductor
-
UU10.5 2.0mH UU Line Filter Transformer Power Line Noise Filter
-
Good Quality 12V 8.5A UU 9.8 20mH ET Liner Filter for inverter noise filter
Product Description
Through-hole Common mode chokes
TECHNICAL INFORMATION:
- Max Opetating voltage:250V at 40℃
- IDC Max:rating AC/DC current A @40℃
- Hi-Pot 2500V AC winding to winding 3S
- Insulation resistance 100MΩ Min DC 500V
- Temperature Rise Max:40℃
- Inductace Testing:10KHz 0.1V HP4284A
- RDC:QuadTech 1880 Milliohmmeter
- Surge current Max 10ms:20X IDC
- Operating temperature:-40℃ to+105℃
- Storage Tempeature:-40℃ to+105℃
- Resistance to soldering heat:260℃ for 10 seconds
- Marking:Part number and data code
Note: All specifications subject to change without notice.
|
ELECTRICAL SPECIFICATIONS |
||||
|
Part Number |
Nominal Inductance (mH)Min. |
leakage Inductance (uH)Max. |
D.C.R(Ω)Max. |
Rated Current(A) Max. |
|
FET2430-683Y |
68 |
700 |
2.3 |
0.4 |
|
FET2430-453Y |
45 |
600 |
1.65 |
0.5 |
|
FET2430-333Y |
33 |
500 |
1.2 |
0.6 |
|
FET2430-253Y |
25 |
400 |
0.88 |
0.8 |
|
FET2430-203Y |
20 |
350 |
0.64 |
1 |
|
FET2430-103Y |
10 |
250 |
0.38 |
1.2 |
|
FET2430-452Y |
4.5 |
150 |
0.19 |
1.5 |
|
FET2430-392Y |
3.9 |
150 |
0.15 |
1.8 |
|
FET2430-332Y |
3.3 |
100 |
0.11 |
2 |
|
FET2430-242Y |
2.4 |
95 |
0.09 |
2.5 |
Packing Details : The normal packing is use carton (size: L * W * H),according to the special requirements of the customer.
Delivery Details : 5-20 days
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: How do you control the quality?
A:We control product quality by IQC, and 100% quality testing before packing and delivery. We had passed ISO9001 certificate repot.
