UU9.8 UU10.5 Common Mode Choke Coil Filter Inductor
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
1 Henry 10 Henry Inductance Drum Core Inductor Chock Coil Radial For Converter
-
Drum Core 1 Henry Inductor 2 Pin Dip Radial Leaded Power Chock Filter Inductor
-
0.8A Common Mode Chokes Filter Inductor FCM2327-602Y 6mH Dual Chokes Inductor
-
10A 20A Toroidal High Current Choke Inductor
-
1.5uH 1R5 SMT Integrated Power Inductor for Terminals Portable Servers Workstation.
-
4.7uH 4R7 High Current SMT Integrated Molding Power Choke for Thin Type On-board Power Supply Module for Exchanger.
Product Description
Product Description

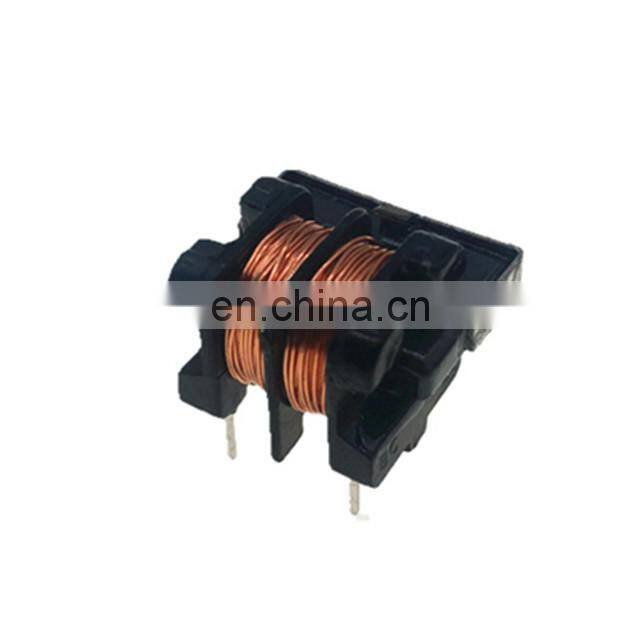

UU9.8 UU10.5 Common Mode Choke Coil Filter Inductor
choke coil is an inductor used to block higher-frequency while passing direct current (DC) and lower-frequencies of alternating current (AC) in an electrical circuit. A choke usually consists of a coil of insulated wire often wound on a magnetic core, although some consist of a doughnut-shaped "bead" of ferrite material strung on a wire. The choke's impedance increases with frequency. Its low electrical resistance passes both AC and DC with little power loss, but its reactance limits the amount of AC passed.
Product name | UU9.8 UU10.5 Common Mode Choke Coil Filter Inductor | ||||
Brand name | Fullstar | ||||
Material | Ferrite core, Copper wire; Basing;Shielding case | ||||
Usage | High Frequency | ||||
Coil Structure | Toroidal | ||||
Sample Time | 3-5 working days | ||||
Mounting type | Depends on the customer's request | ||||
Certification | ISO9001:2015 | ||||
Shape Types | Vertical;Horizontal;with/without base;shielded/unshielded ;SMD | ||||
MOQ | 1000pcs | ||||
Product features | 1 High frequency 2 Low magnetic leakage 3 Useful various power conversion and line filter application 4 Low radiation noise based on toroidal construction 5 Various material available to meet different frequency requirements 6 Special specifications available upon request 7 Primary competitive advantage: Country of region; small order accepted 8 Experienced technical staff ; Pass ISO ,RoHs,UL;Standard Packing | ||||
Detailed Image
Our Company
Our operating policy is "Quality comes first, customer foremost".We know customer's satisfaction is the only benchmark to verify our works.Engaging,learning and mastering advanced technology,Fullstar excellent team provide high quality products,quick delivery,strong technical support&best service and would help our customers achieve the maximum value.
Packing & Delivery
Packing
1. Neutral Packing
2.As customer requirement
Delivery
The delivery time is strarting from we confirm the payment.
