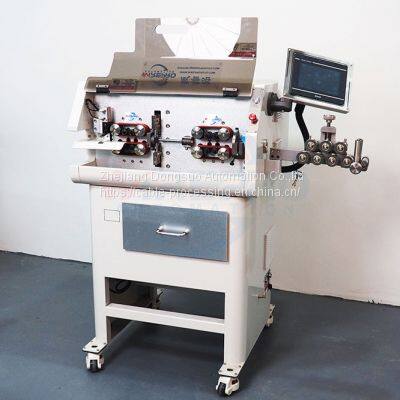

Wejion963 Automatic Copper Wire Cable Cutting and Peeling Machine Automatic Computerized Wire Stripping Machine
US$ 100 - 5000
/ Piece
1 Piece(Min. Order)
- Qingdao/Shanghai
- T/T
- 10 days
You May Like
-
Automatic Wire Stripping Machine SWT508E Cable Stripping Cutting Machine for 0-8MM2
-
Automatic Flat Sheathed Wire Strip and Twist Machine
-
Thick Wire Stripper Cutter Shield Cable Stripping Machine Alarm Cable Cutting Machines for Power Cable
-
SU-030 30mm2 Electric Automatic Cable and Wire Stripping Machine Cutter and Stripper Machine
-
EW-05F Automatic Wire Cutter and Stripper Cable Stripping Machine
-
Max 120mm2 High Speed Automatic Serve Motor Driven Cutting and Stripping Machine
Product Details
| Brand Name | DONGSUO | Place of Origin | China | |
| Model Number | WJ-S41 |
Product Description
Overview
Quick Details
Place of Origin:
- Jiangsu, China
Brand Name:
- Wejion
Model Number:
- WJ-S41
Usage:
- Stripping
Model:
- WJ-S41
Conduit diameter:
- 1.5-2.5mm
Capacity:
- 3000-8000pcs/h
Wire range:
- 0.1-2.5sqmm
Weight:
- 25kg
Dimension:
- 400*300*330mm
Stripping length:
- front10mm/rear10mm
Blade material:
- Tungsten steel
Drive mode:
- four wheels driving
Power supply:
- AC175V-260V 50/60Hz
Supply Ability
Supply Ability
500 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Wooden case
Port
Shanghai
Picture Example:
Lead Time:
Quantity(Sets) 1 - 10 >10 Est. Time(days) 5 To be negotiated
Parameters
WJ-S41 Features：
1. LCD display, support Chinese and English, all buttons and processing program desiged based on automatic computer programming,easy to operate.
2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.

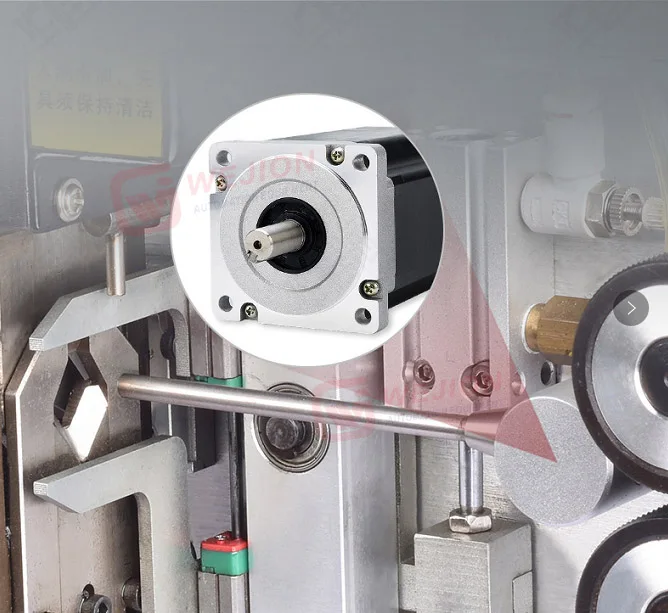

5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.
8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
2. Four driving wheel work for wire feeding, adjustable wire pressing force, high wire feeding accuracy, no damage on wire and no press marks.
3. High-quality blades made by raw materials imported from Japan, the cut edges are burr-free, wear-resistant and can be used for longer time.
4. The pressing force of four wire feeding wheels can adjusted which can help to process various sizes of wires better.
5. Equiped with copper core stepper motor which is high precision, low noise, precise current control, low motor heating, longerservice life.
6. Intelligent control system, using 32-bit CORTEX-M3 core processor, the running speed up to 72M. It can store hundreds of parameter setting.
7. Multiple processing modes are suitable for electronic wire, silicone wire, PTFE wire, glass fiber cotton, isolation wire, etc.,complete material processing at one time, fully automatic cutting, half stripping, full stripping, and multi-section stripping processing can be completed at one time.
8. Configurable twisting parts for flexible wires, thin wires, multiple copper wires and other wires that are easy to loosen.Twisting can avoid wires loose or bending, easy to penetrate into the terminal or get better tinning effect.
