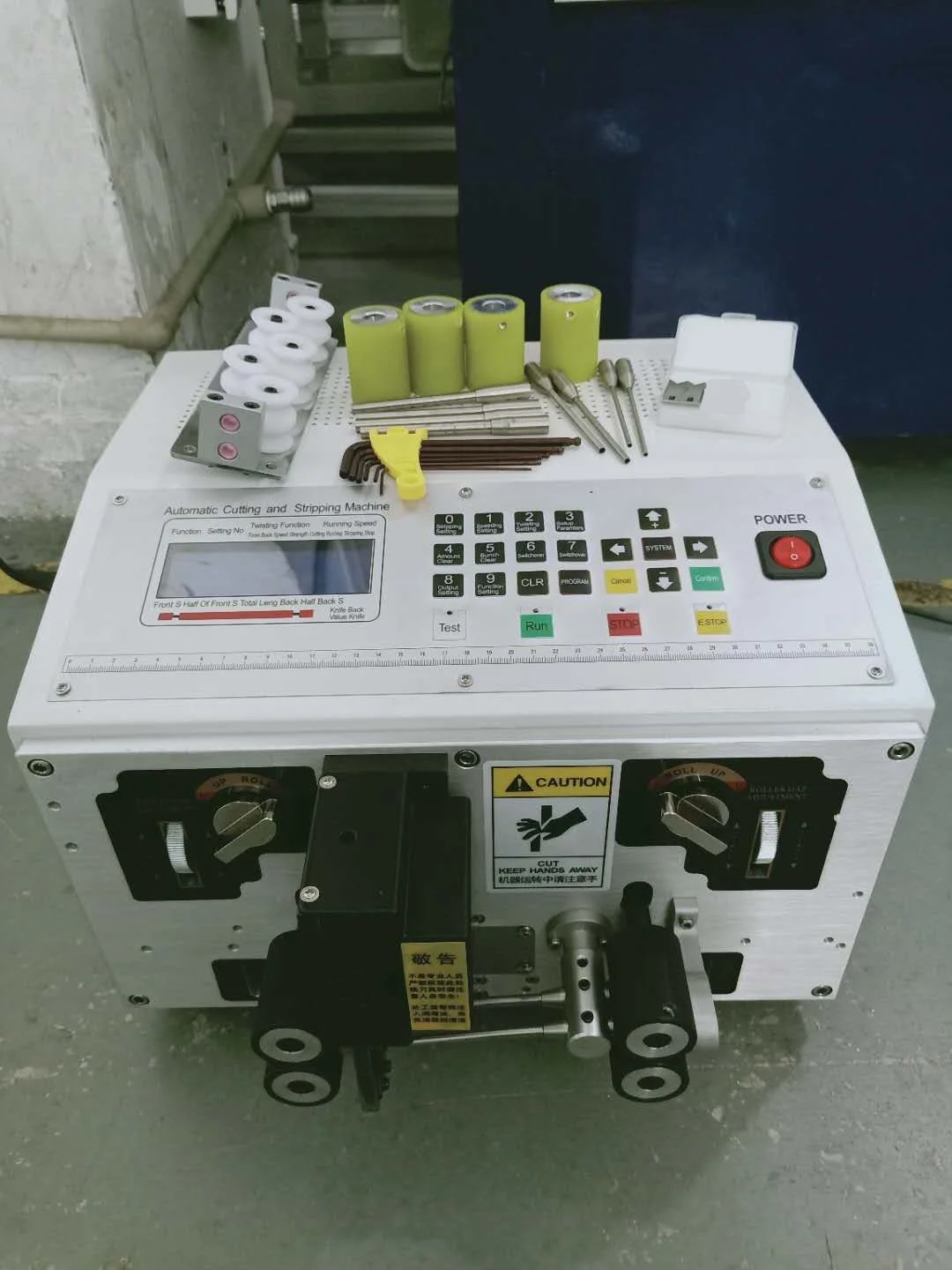

6sqmm Automatic Computer Wire Cutting And Stripping Machine
US$ 100 - 5000
/ Piece
1 Piece(Min. Order)
- Qingdao/Shanghai
- T/T
- 10 days
You May Like
-
Electric Wire Cutter Automatic Cable Scrap Copper Wire Cutting and Stripping Machine
-
HMC-S04 Automatic Enameled Wire Magnet Copper Wire Cutting and Stripping Machine
-
Thick Wire Stripper Cutter Shield Cable Stripping Machine Alarm Cable Cutting Machines for Power Cable Social Security Wire
-
High-capacity Cable Stripping Machine Automatic Wire Cutting and Stripping Machine
-
15AWG to 4/0 AWG Automatic Computer Wire Stripping Machine WKS-670 1.5 to 100mm Wire Cutting Stripping Machine
-
Automatic Electric 1.5mm2 Wire Cutting and Stripping Machine Manufacture
Product Details
| Brand Name | DONGSUO | Place of Origin | China | |
| Model Number | SR-320 |
Product Description
Overview
Quick Details
Place of Origin:
- Guangdong, China
Brand Name:
- Sinrad
Model Number:
- SR-320
Usage:
- cutting and stripping wire , wire harness equipment
Model:
- SR-320
Warranty:
- 1 Year
Voltage:
- AC110V/220V 50/60HZ
Applicable wires:
- 14-32AWG (Total 6 sqmm max)
Wire diameter range:
- 0.1-5.0mm
Cutting length:
- 0.1mm - 99999.9mm
Stripping length:
- 0.1mm - 99mm
Weight:
- 36kg
Size:
- 450*450*360mm
Blades material:
- Tungsten steel
Supply Ability
Supply Ability
100 Set/Sets per Month
Packaging & Delivery
Packaging Details
cartoon
Port
shenzhen
Lead Time:
Quantity(Sets) 1 - 10 >10 Est. Time(days) 7 To be negotiated
Specification
Features:

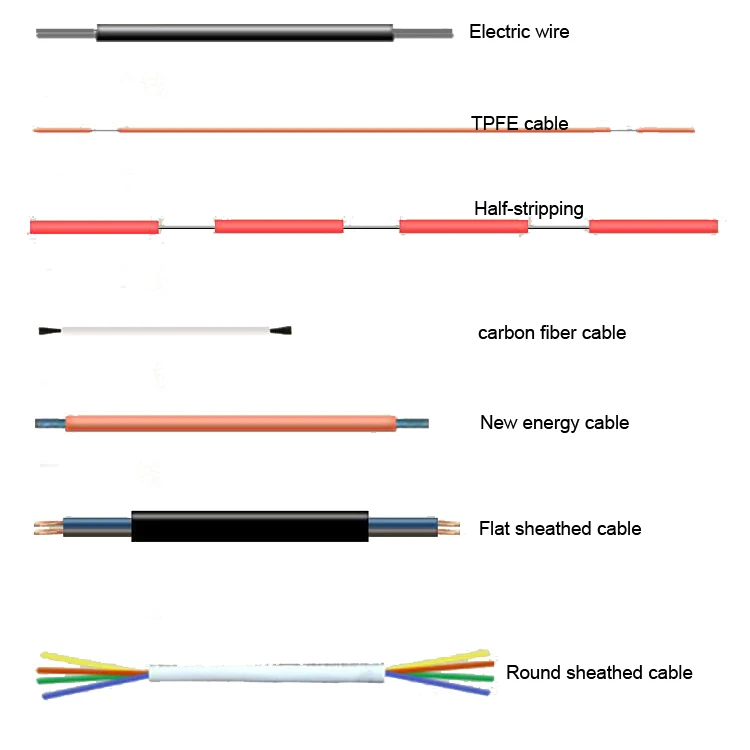

(1)Automatic stripper for electronic wire, silicon wire, ptfe wire, glass fiber wire, isolation wire, etc.
(2)Automatic cutting,stripping, half stripping, middle stripping, Front and rear stripping,Tri-section stripping.
(3)At the same time processing two wires, greatly improve the output, can instantly transform the size and size of wire, easy operation.
(4)Equipped with different diameter of guide tube to accurately processing different OD wires.
(1)Automatic stripper for electronic wire, silicon wire, ptfe wire, glass fiber wire, isolation wire, etc.
(2)Automatic cutting,stripping, half stripping, middle stripping, Front and rear stripping,Tri-section stripping.
(3)At the same time processing two wires, greatly improve the output, can instantly transform the size and size of wire, easy operation.
(4)Equipped with different diameter of guide tube to accurately processing different OD wires.
(1) SR-320: Small wire double 0.1-2.5sqmm(total max 6sqmm), max OD 5mm.
(2) SR-360: Wire 0.1-10sqmm, max OD 8mm.
(3) SR-380: Wire 0.1-16sqmm, max OD 11mm.
(4) SR-50: Wire 4-50sqmm.
(5) SR-70: Wire 6-70sqmm.
(6) SR-150: Big wire 6-150sqmm.
(7) SR-240: Big wire 6-240sqmm.
(8) SR-FY905: Cutting 2-5 core cable stripping outer and inner skin, 0.1-6sqmm, OD 1-8mm.
(9) SR-8300: Cutting Multi-core cable stripping outer and inner skin, 4-30sqmm, max OD 16mm.
(10) SR-8070H: Cutting Multi-core cable stripping outer and inner skin, 4-70sqmm, max OD 25mm.
(11) SR-330A: Flat Ribbon cable cutting splitting stripping.
(2) SR-360: Wire 0.1-10sqmm, max OD 8mm.
(3) SR-380: Wire 0.1-16sqmm, max OD 11mm.
(4) SR-50: Wire 4-50sqmm.
(5) SR-70: Wire 6-70sqmm.
(6) SR-150: Big wire 6-150sqmm.
(7) SR-240: Big wire 6-240sqmm.
(8) SR-FY905: Cutting 2-5 core cable stripping outer and inner skin, 0.1-6sqmm, OD 1-8mm.
(9) SR-8300: Cutting Multi-core cable stripping outer and inner skin, 4-30sqmm, max OD 16mm.
(10) SR-8070H: Cutting Multi-core cable stripping outer and inner skin, 4-70sqmm, max OD 25mm.
(11) SR-330A: Flat Ribbon cable cutting splitting stripping.
