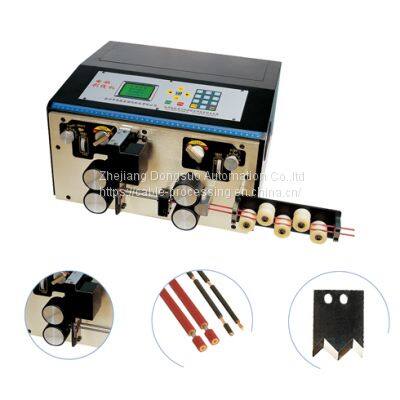

Automatic electric 1.5mm2 wire cutting and stripping machine manufacture
- 1000 Piece / Pieces per Month
- Qingdao/Shanghai
- T/T
- 10 days
You May Like
-
0.1-2.5mm2 High Quality Wire Stripping Machine Automatic Wire Stripper Cutting Machine
-
Marchant Pereira #150 Of. 1102, providencia, Santiago de Chile Zip code 7500523 Contact Hernán Sánchez R.
-
0.8-3.5 mm automatic double thin wire striping cutting machine
-
fully automatic 28AWG cable wire stripper machine single cable wire cutting and stripping machine
-
JCW-CS03 High Speed JCWELEC 6mm2 Automatic Electronic Wire Cutting and Stripping Machine
-
Factory Sale Wire Stripping Machine Price Automatic Cable Stripper Wire Cutting and Stripping Machine
Product Details
| Brand Name | DONGSUO | Place of Origin | China | |
| Model Number | B-02A |
Product Description
Place of Origin:
- Zhejiang, China
Brand Name:
- zhaozhuang
Model Number:
- B-02A
Usage:
- Stripping
Wire core area:
- 0.1mm2-1.5mm2
Weight:
- 21KG
Size:
- L340mm*W387mm*H230mm
Cutting length:
- 5mm-40mm-10m
Cutting tolerance:
- +-(0.2+0.0002*L)mm (L= cutting length)
Stripping length:
- Top: 0-25mm, end: 0-15mm
Stripping pattern:
- Full-stripper, semi-stripper, short-stripper,mid-stripper 10 parts.
Wire material:
- PVC wire, glass fibres etc.
Hourly output:
- 8000-3000 pieces(about 6200 pieces/hour as 100mm)
Drive method:
- The two wheels is driving at one time
Supply Ability
100 Set/Sets per Month
Packaging Details
STANDARD WOODEN CASE
Port
Ningbo port/Shanghai port
Picture Example:
Lead Time:
Quantity(Sets) 1 - 1 >1 Est. Time(days) 5 To be negotiated
Model | B-02AS | B-02BS | B-02CS |
Power | Rated 150W | 180W | 200W |
Applied core area | 0.1mm2-1.5mm2 | 0.1mm2-2.5mm2 | 0.1mm2-4.0mm2 |
Weight | 21KG | ||
Dimension | L340mm×W387mm×H230mm | ||
Cutting length | 5mm-40mm-10m | ||
Cutting tolerance | +— (0.2+0.0002×L)mm (L= cutting length) | ||
Stripping length | Top: 0-25mm, end: 0-15mm | ||
Stripping pattern | Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts. | ||
Wire type | PVC teflon wire, glass fibres | ||
Hourly output | 8000-3000 pieces(about 6200 pieces/hour as 100mm) | ||
Speed adjustment | 1-6 grade | ||
Drive method | The two wheels is driving at one time | ||
Note | The stretcher is selective | ||
Type | B-02AS | ||
Display mode | LCD | ||
Power | Rated 150W | ||
Applied core area | 0.1mm2-1.5mm2 | B-02BS | B-02CS |
Cutting length | 5mm-40mm-10m | ||
Stripping length | Top: 0-25mm, end: 0-15mm | 0.1mm2-2.5mm2 | 0.1mm2-4.0mm2 |
Stripping pattern | Full-stripping, semi-stripping, short-stripping, mid-stripping 10 parts. | ||
Drive method | The two wheels is driving at one time | ||
Note | The stretcher is selective | ||
