High Quality Epoxy Resin Bushing Mould APG Clamping Transformer Bushing Mold

FOB Price

US$ 1000 - 3000 / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Description

High Quality Epoxy Resin Bushing Mould APG Clamping Transformer Bushing Mold

Mold feature and application:

Item No.	Description
Mould materials	45#,50#,P20,H13,2311,8407,NAK80,S136,SKD61, etc.
Applied fields	Epoxy resin Spout, Insulator, Bushing, Post Insulator, SF6 Air Proof Insulator, Electric Gradient Insulator, Outdoor Insulator, current transformer,voltage transformer monoblock , embedded poles to be used for APG Clamping Machine etc.
Cavity	Single
Runner	Hot/Cold
Design software	UG,CAD,PORE, etc.
Mould life	300,000-500,000 shots
Lead time	25 -50 days
Main Workshop Equipment	Grinder, Lather, drill, CNC Machine Center, Numerical Control Machine Tool, Milling Machine, Electric Pulse, Planer Type Mining Machine, Electric Dischange Machine.
Testing Service	We have APG machine and special test room for tesing and debugging mould.
After-sales service	Engineers available to service overseas.

2.Application: used for casting epoxy resin bushing from 11-36Kv

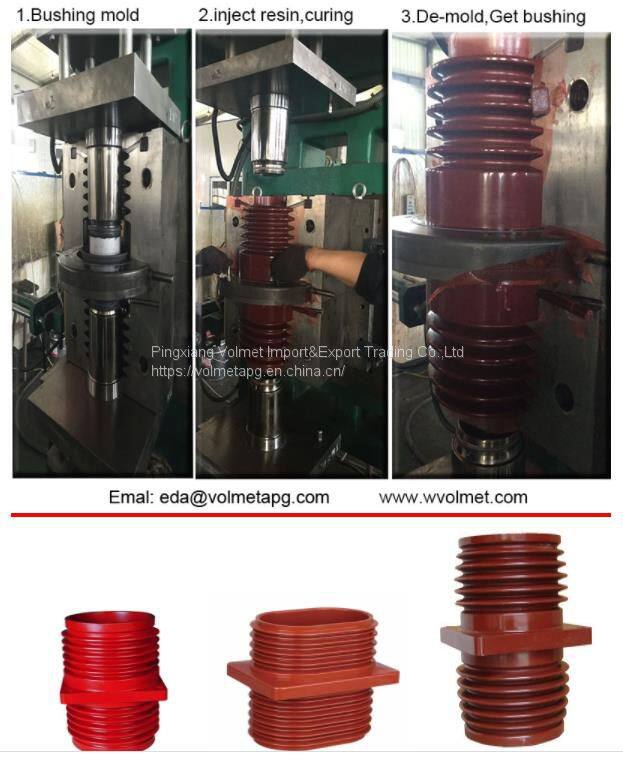

1.Step 1: install bushing APG Mold on APG clamping machine

2.Step 2: install accessories,inserts into APG mold.

3.Step 3:Clamping apg machine,injection epoxy resin into mold.

4.Step 4:Epoxy resin curing inside mold,open clamping plate,take out product.
