High rigidity CK6152E CK6165E heavy duty horizontal cnc lathe machine
- 1000 per Month
- T/T Credit Card
You May Like
-
Automatic cnc control horizontal lathe machine auto torno GSK Siemens control metal turning shandong CAK6150 price for sale
-
horizontal CAK6161 machinery siemens control cnc turn lathe machine
-
CAK6180 horizontal flat bed GSK siemens 808D control cnc lathe machine turning center price for sale supplier
-
Horizontal cnc lathe machine high quality CAK6140
-
CAK6150 fully automatic wholesale cnc lathe turning machine
-
High precision horizontal cnc lathe auto machine turning center GSK Siemens FANUC control torno flat bed price CAK6161 supplier
Product Description

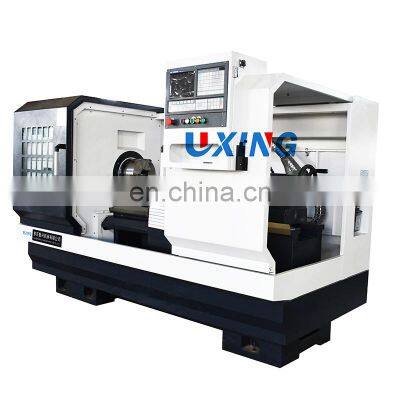

High rigidity CK6152E CK6165E heavy duty horizontal cnc lathe machine
The machine through the numerical control system,this machine could process different inner bore,ex-circle,circular conical surface and screw thread,especially suitable for the small and middle-sized shaft and plate work piece from rough processing in batch.It has advantages like higher automaticity,simpler programming and higher accuracy.
Product features:
Higher stability one-piece machine bed;
3-gear spindle speed,step-less in gear;
Higher rigidity pedestal;
Wider layer board;
Integrated automatic lubrication system.
Standard accessories:
Eletric 4 position ,3-jaw manual, manual tailstock, automatic lubrication, coolant pump, semi-shield
Optional accessories:
Fanuc or other brand CNC controller, hydraulic or power turret, hydraulic tailstock, full-shield
Machine main specifications:
|
Specifications |
Unit |
CK6152E |
CK6165E |
|
Max.swing over bed |
mm |
Φ530 |
Φ650 |
|
Max.swing over cross slide |
mm |
Φ280 |
Φ375 |
|
cessing length |
mm |
825/1325 |
1000/1500/2000/3000 |
|
X/Z axis travel |
mm |
X:330 Z:1000/1500 |
X:400 Z:1200/1650/2200/3100 |
|
Spindle transmission type |
|
3 steps variable speed |
3 steps variable speed |
|
Spindle speed steep |
|
stepless |
stepless |
|
Spindle speed |
rpm |
30-150,90-450,315-1600 |
10-85,40-350,110-850 |
|
Spindle nose |
|
A8 |
C11 |
|
Spindle bore |
mm |
Φ90 |
Φ105 |
|
Spindle taper |
|
Metric 100-1:20 |
Metric 120-1:20 |
|
Spindle motor |
kW |
7.5 |
11 |
|
Chuck size |
mm |
Φ250 |
Φ320 |
|
Ball screw dia.and pitch |
|
2506/4210 |
3205/5010 |
|
X/Z axis feed motor torque |
N.m |
X:7.5 Z:10 |
X:10 Z:15(30) |
|
X/Z axis rapid traverse |
m/min |
6/10 |
4/5 |
|
X/Z axis repeatability |
mm |
±0.005 |
±0.005 |
|
Processing accuracy |
|
IT6-IT7 |
IT6-IT7 |
|
Workpiece surface roughness |
|
Ra1.6 |
Ra1.6 |
|
Tailstock sleeve dia. |
mm |
Φ75 |
Φ100 |
|
Tailstock sleeve travel |
mm |
150 |
250 |
|
Tailstock sleeve taper |
# |
MT5 |
MT6 |
|
Tool post type |
|
4 station electric tool post (optional:6 station turret) |
4 station electric tool post (optional:6 station turret) |
|
Cutting tool shape size |
mm |
25x25 |
32x32 |
|
Guide form |
|
Flat bed |
Flat bed |
|
Total power capacity |
KVA |
12.5 |
15 |
|
Machine dimension(LxWxH) |
mm |
2570/3070x1550x1710 |
3200/3700/4200/5200x1800x1900 |
|
Net weight |
kg |
3150/3400 |
3900/4500/5400 |
Details:
1:How can I choose the most suitable machines?
A: Please tell me your specifications (or send your workpiece drawing to us) ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .
2: What's your main products of your company?
A: We specialized in CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Band Saw Machine ,Shaper machine and so on .
3: How long is the delivery time?
For standard machines,it would be around 30 days;For non-standard machines and customized machine according to client’s specifications requirements,it wouble be a little longer.
4.Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277599 China.
You are warmly welcomed to visit us.
5. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
6: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
