Compact Type CNC VMM
Negotiable
1 (Min. Order)
- T/T Credit Card
You May Like
-
Factory Direct Selling Quality Inspection Equipment 2D 3D CMM Video Measuring Equipment With Renishaw
-
Economic Fully Automatic 2.5d Measurement Systems Optical Lens Machine for PCB
-
Manual Image Measuring Instrument Video Measuring Optical Instruments for PBC
-
One-touch Fast Visual Inspection Machine
-
CNC Optical Vision Measuring Machine
-
Compact Type CNC Optical Video Measurement Machine
Product Description

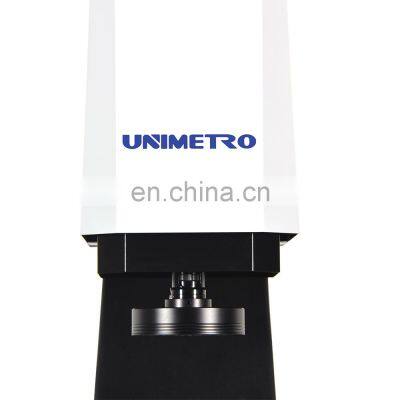

Compact Type CNC Vision Measurement Machine
Main features:
Compact automatic image measuring instrument; Economical general vision measurement scheme
High adaptability to a variety of measurement sensors; Flexible application scenarios
Excellent imaging and optical systems; Powerful software

Simple and steady
In the design process of PEAK series, we always implement the design concept of simple and stable.We reduce unnecessary mechanical
components, integrate all electronic components into the mechanical structure, optimize wiring, and ensure the stability and
maintainability of the machine.
components, integrate all electronic components into the mechanical structure, optimize wiring, and ensure the stability and
maintainability of the machine.
Economical visual measurement solution
The simple and holistic design allows us to manufacture the machine at a low cost while maintaining high measurement accuracy and optimum performance.Users can enjoy the high efficiency and low cost advantages of full CNC vision measurement technology.
The simple and holistic design allows us to manufacture the machine at a low cost while maintaining high measurement accuracy and optimum performance.Users can enjoy the high efficiency and low cost advantages of full CNC vision measurement technology.
High adaptability to a variety of measurement sensors
The PEAK family supports multiple measurement sensor solutions.Contact probe, laser sensor and white light sensor are compatible. Provides a wider range of applications for different measurement requirements
The PEAK family supports multiple measurement sensor solutions.Contact probe, laser sensor and white light sensor are compatible. Provides a wider range of applications for different measurement requirements
Excellent imaging system
The PEAK series offers a superior imaging system compared to similar products on the market, allowing users to obtain clearer and
sharper edges.On the basis of a lot of basic theoretical research, we selected a high pixel industrial digital camera, to ensure
high imaging quality, high frame rate, measurement stability.
The PEAK series offers a superior imaging system compared to similar products on the market, allowing users to obtain clearer and
sharper edges.On the basis of a lot of basic theoretical research, we selected a high pixel industrial digital camera, to ensure
high imaging quality, high frame rate, measurement stability.

Powerful software
The PEAK series is equipped with powerful UNIMETRO Inspect measurement software.
Simple and easy to use interface; Complete measurement function; Weak edge detection
Autofocus and focus measurement function;Support for multi-sensor programming
Simple and easy to use interface; Complete measurement function; Weak edge detection
Autofocus and focus measurement function;Support for multi-sensor programming

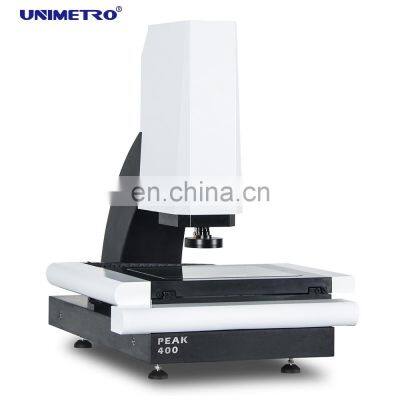

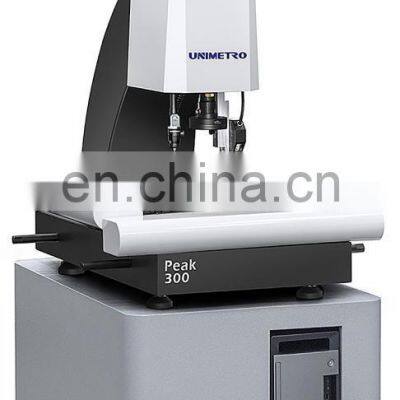

Item | PEAK300 | PEAK400 | PEAK500 | ||||
Dimension(mm) | 650 x 550 x 935 | 800 x 700 x 1000 | 1100 x 800 x 1030 | ||||
Measuring range | X | 300 | 400 | 500 | |||
Y | 200 | 300 | 400 | ||||
Z | 200 | 200 | 200 | ||||
Working stage | Stage size | 460 x 360 | 560 x 460 | 660 x 560 | |||
Glass size | 340 x 240 | 440 x 340 | 540 x 440 | ||||
Max. loading | 25kg | 25kg | 25kg | ||||
Image and measuring system | CCD | Industrial color CCD camera; 2 megapixel hd GIGA digital camera. | |||||
Lens | Manual dented zoom lens 0.7 - 4.5X (Full-automatic zoom lens 1-10x) | ||||||
Magnification | 18-195X | ||||||
Field of view(mm) | 8.1-1.3mm | ||||||
Working distance | 108mm | ||||||
Display resolution | 0.001mm | ||||||
Measuring Accuracy(um) | Optical | E1x, E1y=3+L/200 | |||||
E1z=3.9+L/200 | |||||||
E2xy=3.0+L/150 | |||||||
Probe | E3=3.5+L/100 | ||||||
Resolution | 1um, 0.5um for option | ||||||
Operation mode | Integrated intelligent control(joystick, mouse, keyboard) | ||||||
Illumination | Programmable LED surface ring light, 8 sections, parallel contour light | ||||||
Power supply | 220V±10% AC 50Hz, resistance<=4 ohm ground should be required | ||||||
Working environment | Temperature 18-24 °C, humidity 30 - 75%, avoiding vibration | ||||||
