Sanitary Mini Pressure Overflow Safety Valve With TC End
US$ 60 - 75
/ Piece
1 Piece(Min. Order)
- shanghai/ningbo
- T/T Credit Card
You May Like
-
Sanitary SS304 Arm Valve With Racking Arm for Red Wine Tank
-
Stainless Steel Sanitary DN50/2inch Threaded 3 Way Ball Valve L Type T Type
-
Sanitary Stainless Steel Safety L Type Exhaust Valve With or Without Pressure Gauge for Beer Fermentation Tank
-
Hygienic SS316 W9 Aspetic Sample Cork Valve for Extracting Sample and Sterilization
-
Hot Selling Food Grade Beer Sample Valve Sanitary Sampling Valve With Tri Clamp Fittings
-
Sanitary SS304/SS316 Sample Cock Valve Beer Sampling Valve
Product Details
| Brand Name | SUNTHAI | Place of Origin | Zhejiang, China | |
| Model Number | SFV02 | |||
| Structure | Plug | Power | Manual | |
| Port Size | 1/2" | |||
| Temperature of Media | Medium Temperature |
Product Description
Product Details

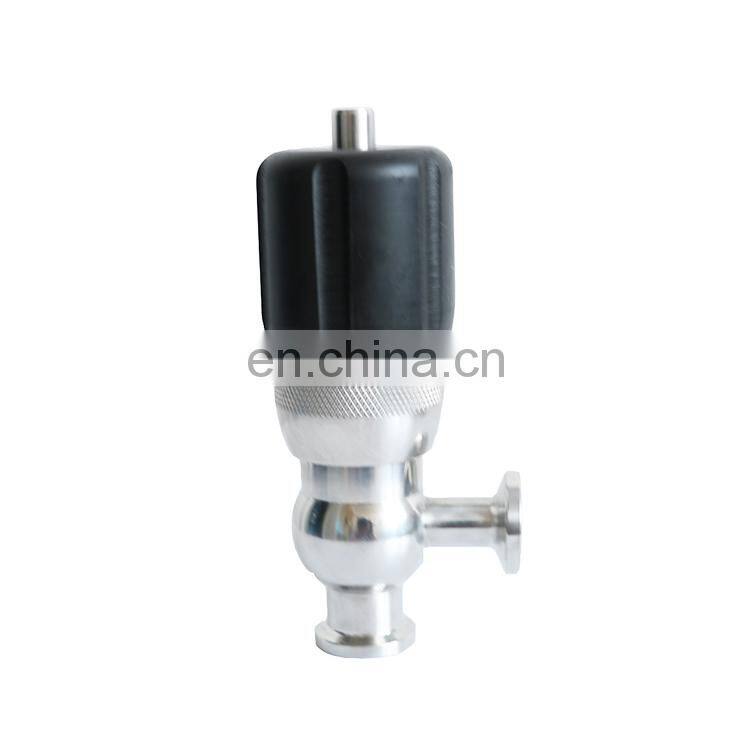

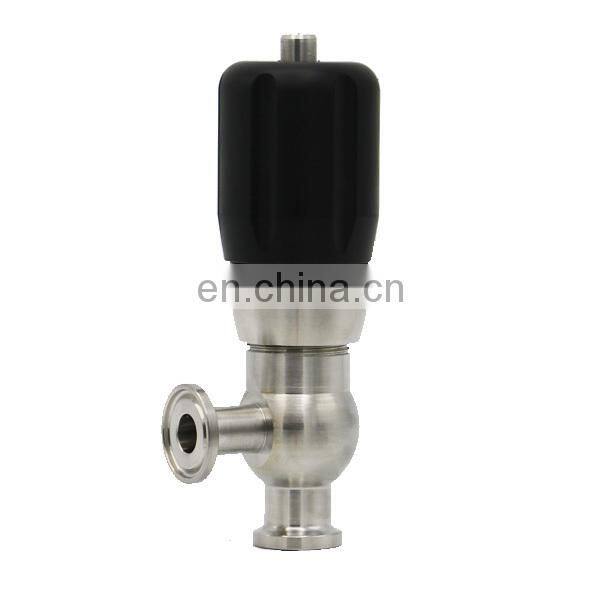

Sanitary Mini Pressure Overflow Safety Valve with TC end

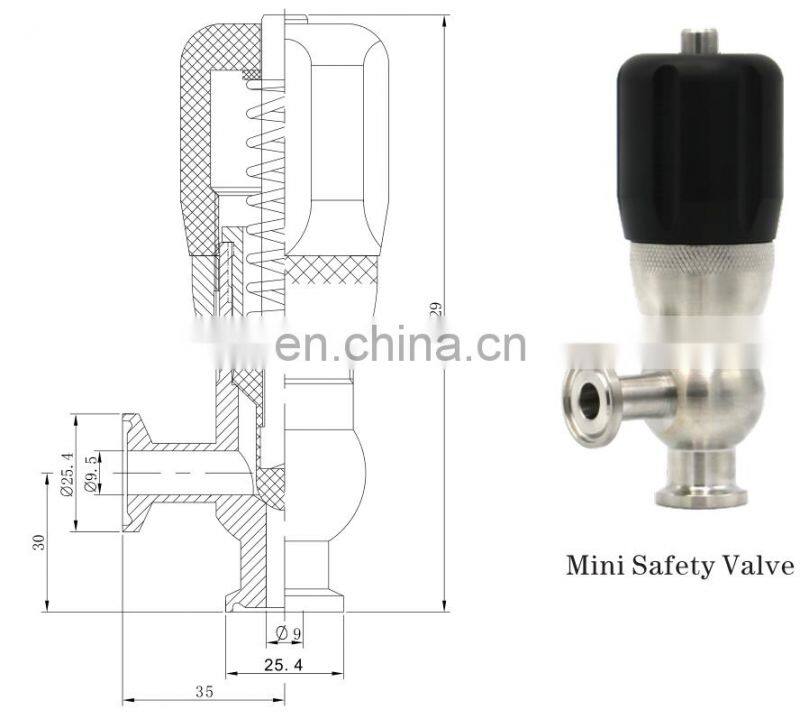

- Operating principle:
Normally the valve is closed.The specific pressure is setted by adjusting the spring pressure nut.When pressure in the pipelines is higher than the setting value,the valve will open automatically for liquid flowing out,in this way,pressure in the pipeline is released.
- With sanitary and safe design, Sanitary Pressure Relief Overflow valve with Tri-clamp End can avoid operation danger and equipment failure caused by exceed pressure.
Sanitary Pressure Relief Overflow valve with Tri-clamp End is the best choice for protection of equipments in diary, food, beverage, pharmaceutical and fine chemical industries.
| Key words: | Safety Valve,Relief Valve |
| Valve Body Material: | SS304 or SS316L |
| Seal Material: | PTFE,Silicone,EPDM |
| Max. Working Pressure: | 8 Bar |
| Max. Working Temperature: | 120 degree C |
| Norminal tube size: | 1/2" |
| connection: | clamp |
| Norm: | 3A |
| Operated: | Manual/Automatic |
| Handle Type: | round wheel,ellipse wheel |
