Home > Products > Sanitary Valves > New Style Sanitary Pneumatic Double Seat Mix Proof Valve With Control Head for Dairy Pipeline System
New Style Sanitary Pneumatic Double Seat Mix Proof Valve With Control Head for Dairy Pipeline System
US$ 100 - 500
/ Piece
2 Pieces(Min. Order)
- SHANGHAI/NINGBO
- T/T Credit Card
You May Like
-
Factory Price Sanitary Pneumatic Divert Reversing Stop Valve With Welding or Clamped Ends
-
Hygienic Stainless Steel Butterfly Valve With Flanged Ends
-
Trade Assurance SS304 Hygienic 3A/SMS/DIN Butt Welded Butterfly Valve With Handle for Brewery
-
SUNTHAI Food Grade SS304 3A 1" Tri-clover Butterfly Valve With 3 Position Pulling Handle for Milk Industry
-
SUNTHAI Top Quality Stainless Steel Manual Hygienic Butterfly Valve 3A/SMS/DIN/RJT
-
Hygienic Manual SS304 DN50 Threaded Butterfly Valve With Pulling Handle EPDM Seat
Product Details
| Brand Name | SUNTHAI | Place of Origin | Zhejiang, China | |
| Model Number | sunthai | |||
| Structure | Control | Standard or Nonstandard | Standard | |
| Power | Pneumatic | Port Size | 1"-4'/DN25-DN100 | |
| Temperature of Media | Medium Temperature |
Product Description
Product Details

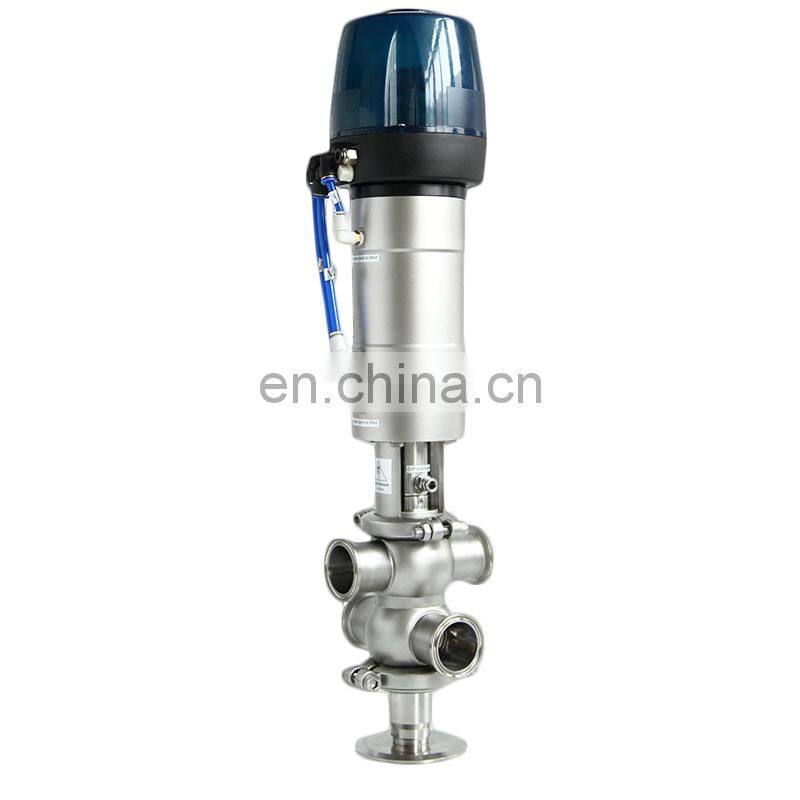

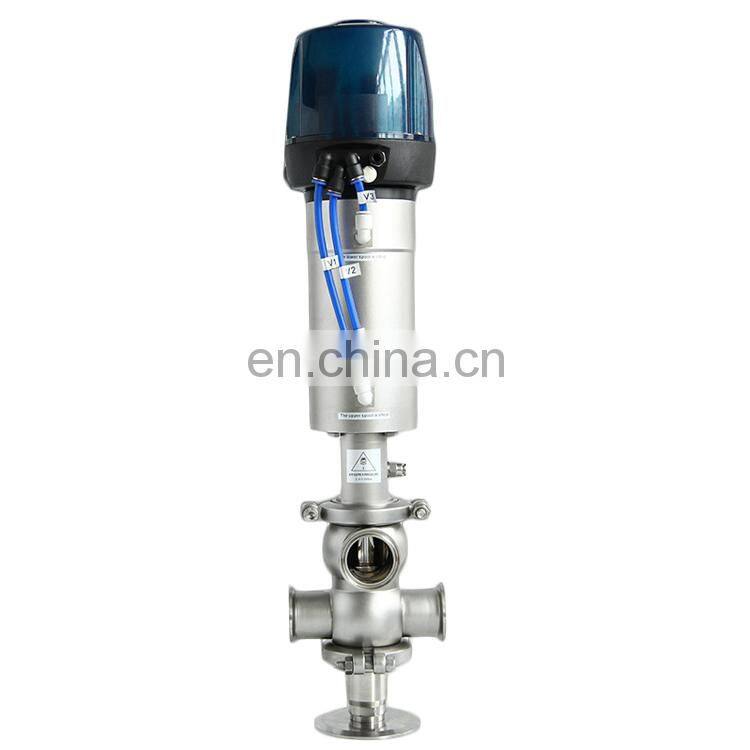

New Style sanitary pneumatic double seat mix proof valve with control head for dairy pipeline system
Sanitary flow diversion Seat valves are used to change the flow direction of pipeline.There are lots of different valve body combinations to meet different applications
| Connection | Clamped/Welded/Threaded |
| Surface treatment | mirror polish,sand blasted,matt finished |
| Operation | manual,pneumatic,intelligent control head,ASI-bus |
| Product Keywords | sanitary diverter valve,pneumatic divert valve,pneumatic divert seat valve |
Features:
Size:1″-4″/DN25-DN100
Pneumatic Diversing Seat Valve body &plug are made from precision casting
Stainless steel parts: AISI304/SS316L
FDA approved gaskets in silicone, EPDM, FKM, PTFE
Norms:DIN,SMS,3A,ISO
End ports: butt welded,Tri clamped,threaded
Inner surface finish is Ra≤0.6μm to meet the requirement of food industries
Max. Pressure:8bar
Switches position sensors are optional
C top control unit is also optional
Standard series:24V/DC,110-220V/AC
Actuator span life:more than 500 thousands times
Seal span life:more than 100 thousands times
Normally closed valve is the default version.Normally closed and normally open are interchangeable by rotating the pneumatic cylinder 180°.
Advantages:
Simple to change the structure and low maintenance cost
Cost-efficient leakage protection
Flexible valve body combinations
Ultimate in easy cleaning, low maintenance design
Low spare part cost
The valve is compact, durable and easy to operate
