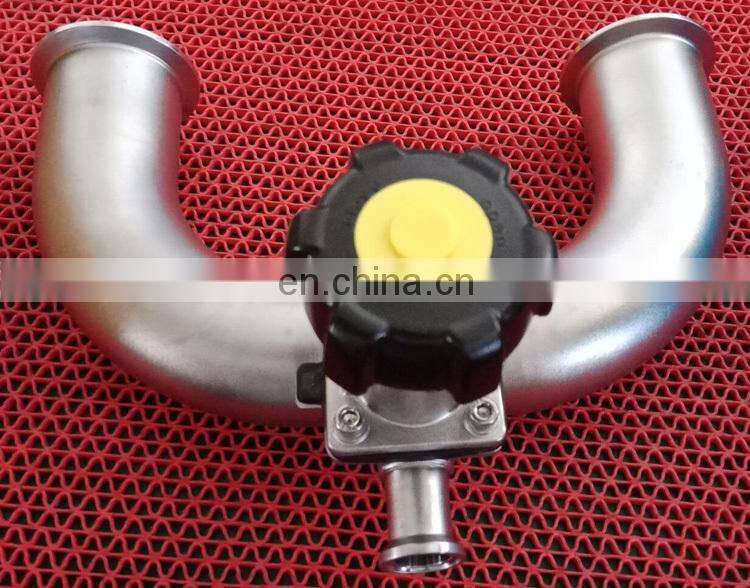

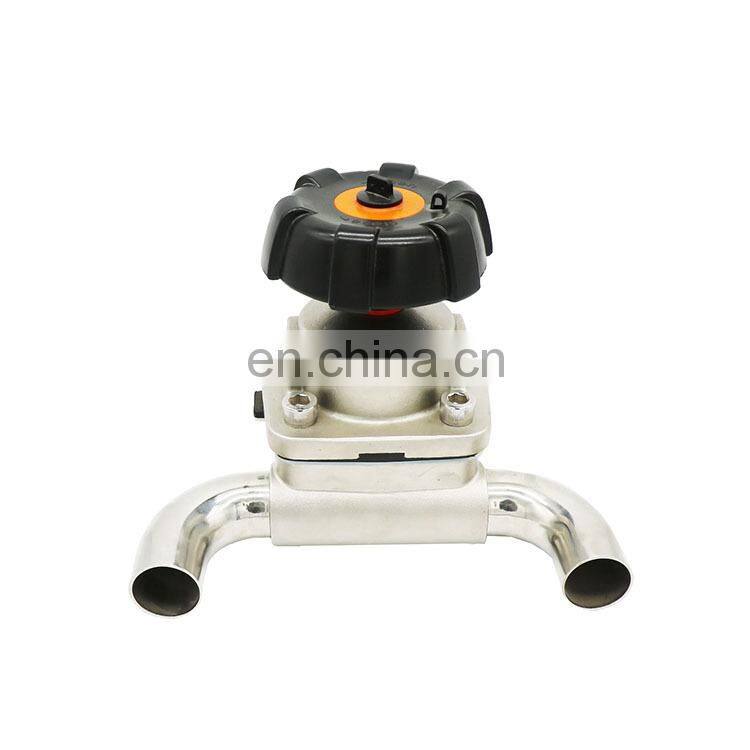

Sanitary SS316 U Type 3 Way Diaphragm Valve With TC/welded Ends EPDM+PTFE Membrane
- SHANGHAI/NINGBO
- T/T Credit Card
You May Like
-
Wholesale Sanitary SS304 Manual 1.5" Welded Butterfly Valve With Pulling Handle EPDM or Silicone Seal
-
Sanitary Manual Tank Bottom Ball Valves for Discharge Port at Tank Bottom
-
Stainless Steel DIN SMS 3A Food Grade Check Valve With Union Connections
-
SS316 Hygienic 3 Way T Type Diaphragm Valve With Membrane
-
Free Sample Sanitary Manual SMS 25.4 Male Butterfly Valve for Brewery,dairy,food Processing Equipments
-
Sanitary Electric Actuated Butterfly Valve Stainless Steel Butterfly Valves With Electric Actuator
Product Details
| Brand Name | SUNTHAI | Place of Origin | Zhejiang, China | |
| Model Number | DIV04 | |||
| Structure | Diaphragm | Power | Manual | |
| Port Size | 1/2"-2" | Media | Acid | |
| Temperature of Media | Medium Temperature |
Product Description

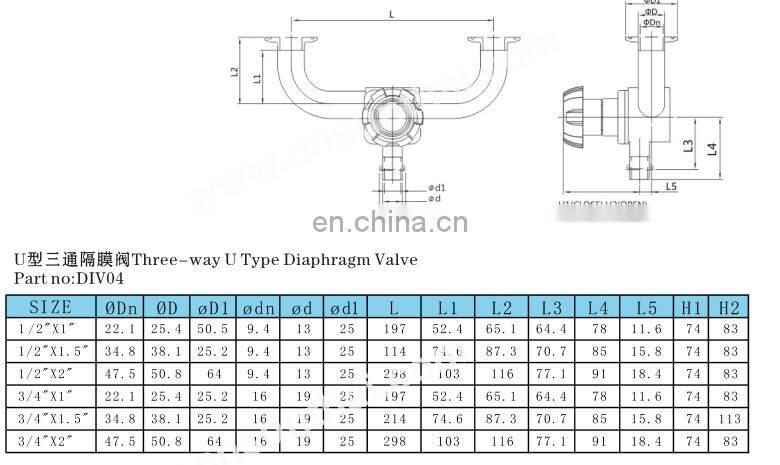

Product Name: | Sanitary SS316 U Type 3 Way Diaphragm Valve with TC/welded ends EPDM+PTFE membrane For Pharmaceutical Industry |
Body Material: | AISI316L investment casting/forged is also available |
Size: | 1/2"-2"&DN10-DN50 |
Surface treatment | Mirror polished inside/acid pickling, electric polished or sandblasted outside |
Connection Mode: | Welded,Clamp,Threaded,flange |
diaphragm: | EPDM,SILICONE,EPDM+PTFE |
Working Principal: | Manual handle wheel or pneumatic actuator |
Pressure: | 0bar -1.0Mpa(10bar) |
Working Temperature | -20°C ~ +135°C (EPDM, Silicone) |
Norm: | SMS,DIN,3A,ISO,IDF |
t
Q: Why would I choose you?
Wenzhou Sunthai Valve Co., Ltd can supply and stock wide range of stainless steel products.We have active managment,experienced technical people,labor workers.High effective sales team.Mass production capacity ensures on-time delivery and quick response to any quote and complaint.
Q: May I have free samples before ordering?
Yes, for small amount,free samples can be provided.Freight is collected on customer
Q: What’s the MOQ?
No MOQ for standard products.Custom parts can be discussed
Q: What is the lead time?
Common items are stocked--3-5 days
Big volume order usually takes about 20-30 days
Q: What’s the payment term?
Paypal, Western Union, T/T and Credit Card.T/T and L/C.
Q: Do you have product warranty?
Yes,12 months warranty.100% inspection on finished products before dispatch.Inferior products can be returned or replaced without excuse.
Repair parts could be supplied for replacement
Q:Do you have mill test certificate?
Yes,each order is traceable by Inspection certificate EN10204 3.1
OEM is welcomed,and we can sign on Non-disclosure Agreement of Commercial Secrets.
Custom facbrication is acceptable.
Any customer wants to be our distributor and partner.Please discuss with us.You will get favorbale support.
