Home > Products > Multi Stage Type > TEC2-199 Series (Cold 40x40mm + Hot 40x40mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
TEC2-199 Series (Cold 40x40mm + Hot 40x40mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
Negotiable
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- T/T PayPal
You May Like
-
TEC2-223 Series (Cold 30x70mm + Hot 30x70mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC2-254 Series (Cold 40x40mm + Hot 40x40mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC3-071 Series (Cold 7x14mm + Hot 36x36mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC3-106 Series (Cold 8.61x12.98mm + Hot 21.72x28,27mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC3-120 Series (Cold 15x15mm + Hot 30x30mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC3-208 Series (Cold 15x15mm + Hot 30x30mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
Product Details
| Brand Name | KJLP | Place of Origin | China | |
| Model Number | TEC2-199xx4040 |
Product Description
Specification/Feature:
Voltage: 16V(MAX)
Electronic Current: 4~6A
Refrigeration Power: 23~43W
Temperature Difference: ΔT 80°C
Thermopile: 199 P&N
Dimension: 2 Satge Stack, 40x40mm+40x40mm
Part NO:
TEC2-199044040
TEC2-199064040
TEC2-199084040

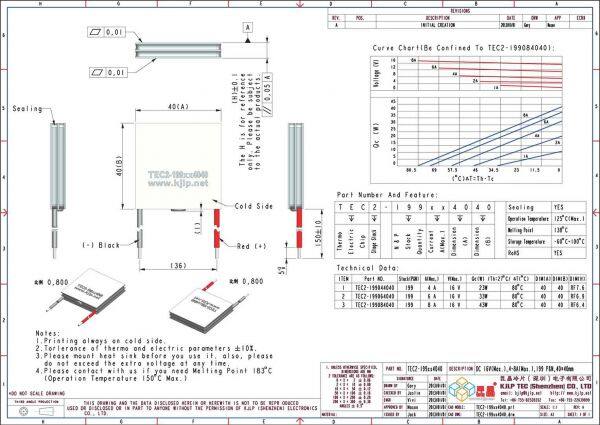

The detailed description of TEC2-199xx4040 refer to The official web site
If you need to inquiry the price, please send the inquiry to our email: kjlp@kjlp.net
