Home > Products > Multi Stage Type > TEC5-247 Series (Cold 15x15mm + Hot 50x50mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
TEC5-247 Series (Cold 15x15mm + Hot 50x50mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
Negotiable
/ Piece
10 Pieces(Min. Order)
- Shenzhen
- T/T PayPal
You May Like
-
TEC5-254 Series (Cold 10.8x10.8mm + Hot 40x40mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TEC6-606 Series (Cold 20x20mm + Hot 62x62mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TES1-004 Series (1.8x5.1mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TES1-004 Series (2.2x6.3mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TES1-007 Series (3.4x3.4mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
-
TES1-007 Series (4.2x4.2mm) Peltier Chip/Peltier Module/Thermoelectric Chip/TEC/Cooler
Product Details
| Brand Name | KJLP | Place of Origin | China | |

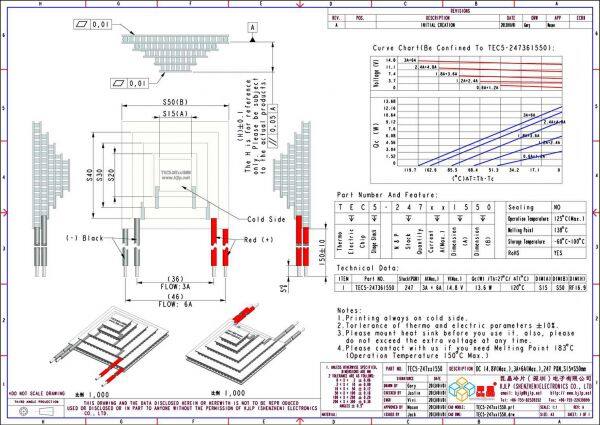

| Model Number | TEC5-247xx1550 |
Product Description
Specification/Feature:
Voltage: 14.8V(MAX)
Electronic Current: 3A+6A
Refrigeration Power: 13.6W
Temperature Difference: ΔT 120°C
Thermopile: 247 P&N
Dimension: 5 Satge Stack, 15x15mm+20x20mm+30x30mm+40x40mm+50x50mm
Part NO:
TEC5-247361550
The detailed description of TEC5-247xx1550 refer to The official web site
If you need to inquiry the price, please send the inquiry to our email: kjlp@kjlp.net
