Home > Products > brushed dc motors > 90zyt02 series, dc electric motor 24v 500w 3000rpm, option for 12v
90zyt02 series, dc electric motor 24v 500w 3000rpm, option for 12v
- SHANGHAI
- T/T Credit Card
You May Like
-
Dia. 63mm massage chair motor, DC 24 volt, 12 volt 4000rpm
-
76mm dc gear motor 12v 150w, 24v option with planet reducer
-
12v 24v electric dc motor for golf cart 8Nm 150rpm LOW NOISE
-
52mm Brushed Dc Motor replaceable brushes 12v 24v
-
80ZYT01C rated 6000rpm to 7000rpm electric motor dc 12 volt or 24 volt
-
OD63mm 30v dc motor, used for automobile
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 90zyt02 | Type | Servo Motor | |
| Certification | CE, ROHS | Torque | 1.8Nm | |
| Usage | Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v 24v | Output Power | 500w | |
| Continuous Current(A) | customed | Speed(RPM) | 3000rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NSK ball bearing
Protection class IP 50 Hard ferrite magnet, 4- poles
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
LONG LIFE, HEAVY DUTY

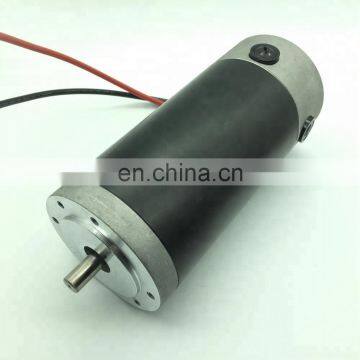

MOTOR PICTURES:
MOTOR MODELS:
90ZYT01 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.1 | 155 | 461 |
24V 3000RPM | 1.1 | 155 | 346 |
24V 2000RPM | 1.1 | 155 | 230 |
24V 1500RPM | 1.1 | 155 | 173 |
12V 4000RPM | 1.1 | 155 | 461 |
12V 3000RPM | 1.1 | 155 | 346 |
12V 2000RPM | 1.1 | 155 | 230 |
12V 1500RPM | 1.1 | 155 | 173 |
90ZYT02 SERIES
Rated Voltage/Speed | Rated Torque(N.m) | motor length(mm) | Output(W) |
24V 4000RPM | 1.5 | 199 | 628 |
24V 3000RPM | 1.5 | 199 | 471 |
24V 2000RPM | 1.5 | 199 | 314 |
24V 1500RPM | 1.5 | 199 | 236 |
12V 4000RPM | 1.5 | 199 | 628 |
12V 3000RPM | 1.5 | 199 | 471 |
12V 2000RPM | 1.5 | 199 | 314 |
12V 1500RPM | 1.5 | 199 | 236 |
GEARED VERSION:
OPTIONS FOR BRAKES
WE SUPPLY CUSTOMED VOLTAGE, SPECIFICATION, SHAFT, MOUNTING AND MOTOR ADDERS.
