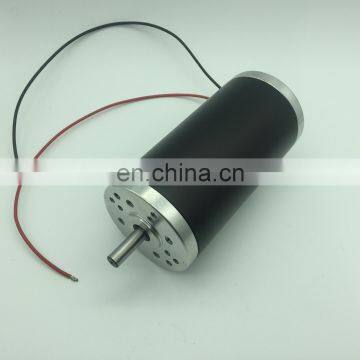

OD 2" 12 volt 24 volt dc motor 150w 200w output power
USD $8 - $30
/ Piece
5 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
2'' 63mm brushed 12 v 24 v dc motor 50w 100w upon 3000rpm Changzhou Smart Automation Manufacturing
-
4'' 90mm big power high torque 12 volt 24 volt dc motor 300w 400w 500w Chinese Manufacturer
-
Customized Specification DC pump Motors,
-
63mm IP67 IP68 water proof Dc Motor 12v 24v
-
O.D 54mm permanent magnet brushed dc engine rated 12 volt 24 volt POWER 50w 100w 150w
-
42mm 52mm 63mm 80mm brushed dc motor equivalent to dunker motor
Product Details
| Brand Name | Smart Automation | Place of Origin | China | |
| Model Number | 63ZYT | Type | Micro Motor | |
| Certification | CE, ROHS | Torque | 0.31N.m 0.4Nm 0.5Nm | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v 24v | Output Power | 150w 200w | |
| Continuous Current(A) | customed | Speed(RPM) | 3000rpm | |
| Commutation | Brush |
Product Description
Motor technical parameter:
Shaft HRC 36~40 ; NMB ball bearing
Hard ferrit magnet, 2- poles
Protection class IP 50 54
Insulation class: F, operating temperature range:-40°C~+140°C
CE and ROHS certified
Options:
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection
High temperature Class H insulation
Model | 63ZYT02A | |||
Rated voltage | V dc | 12 | 24 | 40 |
Continuous rated speed | rpm | 3000 | 3000 | 3000 |
Continuous rated torque | mN.m | 310 | 310 | 310 |
Continuous current | A | 11.5 | 5.8 | 3.5 |
Starting torque | mN.m | 2000 | 2000 | 2000 |
Starting current | A | 59 | 29.5 | 17.5 |
No load speed | rpm | 3500 | 3500 | 3500 |
No load current | A | 2.0 | 1.2 | 0.8 |
Demagnetization current | A | 110 | 55 | 33 |
Rotor inertia | Gcm2 | 600 | 600 | 600 |
Weight of motor | g | 1200 | 1200 | 1200 |
Motor length | mm | 110 | 110 | 110 |
Motor adders: gearbox, encoder, brakes
