63mm Chinese dc gear motor manufacturer 12v 24v 36v
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
42mm dc brushed motor compatible motor with Transtecno motor EC 020 24E
-
42mm Brush Dc Motor Catalogue to Replace Gr42
-
high power gear reducing dc motor to replace transtecno motor EC250
-
12v 24v dc 75 watt 100 watt motor brushed OPTION 12volt 24volt 40volt
-
12v 300 watt dc motor brushed permanent magnet
-
24v 300 watt dc motor brushed permanent magnet
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 56jx300k.63ZYT | Type | Gear Motor | |
| Certification | CE, ROHS | Torque | 1N.m~30N.m | |
| Usage | Boat, Car, Fan, Home Appliance | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12V~48v | Output Power | 50w~300w | |
| Continuous Current(A) | customed | Speed(RPM) | 5rpm~1000rpm | |
| Commutation | Brush |
Product Description
56JX300K.63ZYT SERIES PM DC PLANETARY GEAR MOTOR (with max. rated torque 30N.m)
56JX300K.63ZYT SERIES Gear Motor Drawing:
63ZYT Series Motor Specification:
Ball bearing Hard ferrite magnet, 2- poles Protection class IP 50 Insulation class: B CE and ROHS certified
Model | Rated voltage V | No load speed rpm | No load current A | Rated speed rpm | Rated torque N.m | Output power W | Rated current A | Stall torque N.m | Stall current A | Motor Length mm |
63ZYT01A-12V | 12 | 3600 | 0.6 | 3100 | 0.137 | 45 | 5.2 | 0.82 | 27 | 95 |
63ZYT01B-12V | 12 | 4500 | 0.8 | 4000 | 0.2 | 85 | 10 | 1.55 | 57 | 95 |
63ZYT01A-24V | 24 | 3600 | 0.35 | 3300 | 0.14 | 50 | 2.7 | 1.08 | 18 | 95 |
63ZYT01B-24V | 24 | 4500 | 0.5 | 4000 | 0.2 | 85 | 5.0 | 1.5 | 30 | 95 |
63ZYT02A-12V | 12 | 3500 | 0.8 | 3000 | 0.31 | 98 | 11.5 | 2.0 | 59 | 110 |
63ZYT02B-12V | 12 | 4500 | 1.0 | 4000 | 0.35 | 147 | 18.0 | 2.2 | 104.2 | 110 |
63ZYT02A-24V | 24 | 3500 | 0.55 | 3000 | 0.35 | 98 | 5.8 | 2.0 | 29 | 110 |
63ZYT02B-24V | 24 | 4500 | 0.6 | 4000 | 0.35 | 147 | 8.5 | 2.2 | 48.6 | 110 |
63ZYT03A-12V | 12 | 3500 | 1.0 | 3000 | 0.4 | 125 | 14.5 | 2.7 | 83.5 | 125 |
63ZYT03B-12V | 12 | 3700 | 1.0 | 3500 | 0.32 | 117 | 5.8 | 3.4 | 5.8 | 125 |
63ZYT03A-24V | 24 | 3500 | 0.8 | 3000 | 0.4 | 125 | 14.5 | 2.7 | 83.5 | 125 |
63ZYT03B-24V | 24 | 3700 | 0.8 | 3500 | 0.32 | 117 | 5.8 | 3.4 | 5.8 | 125 |
We provide customized voltage, winding, shaft, mounting, and lead configurations
Options for EMI/RFI suppression circuit; Thermal protection, Electrical brake, Optical encoder
56JX300K Planetary Gearbox Specification:
Reduction ratio | 1/3.6 | 1/4.25 | 1/13 | 1/15 | 1/18 | 1/47 | 1/55 | 1/65 | 1/77 | 1/168 | 1/198 | 1/234 | 1/276 | 1/326 |
Number of gear trains | 1 | 1 | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | 4 |
Gearbox Length (L) (mm) | 40.5 | 40.5 | 51.8 | 51.8 | 51.8 | 63.1 | 63.1 | 63.1 | 63.1 | 82.6 | 82.6 | 82.6 | 82.6 | 82.6 |
Transmission efficiency | 90% | 90% | 81% | 81% | 81% | 73% | 73% | 73% | 73% | 66% | 66% | 66% | 66% | 66% |
Max. rated transmission torque (N.m) | 2 | 2 | 8 | 8 | 8 | 16 | 16 | 16 | 16 | 30 | 30 | 30 | 30 | 30 |
Max. permissible load in short time (N.m) | 6 | 6 | 25 | 25 | 25 | 50 | 50 | 50 | 50 | 90 | 90 | 90 | 90 | 90 |

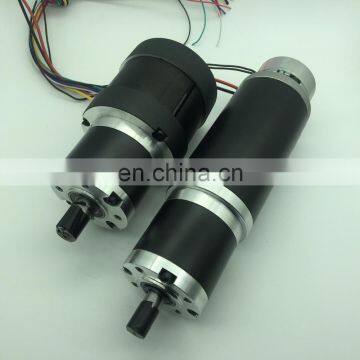

Motor picture:
