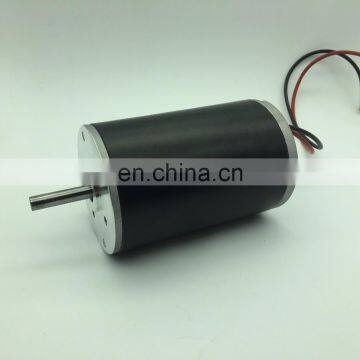

76ZYT electric dc motor rated 19v no load 7000rpm
USD $10 - $30
/ Piece
5 Pieces(Min.Order)
- 100000 Piece / Pieces per Month
- SHANGHAI
- T/T Credit Card
You May Like
-
54mm electric 24v dc motor for textile machine 0.2Nm 2400rpm replaceable brushes, long life time
-
24v 12v dc motor 2500rpm
-
12V 24V 10Nm 20Nm 30Nm Geared Dc Motor, with brushless or brushed Option
-
38mm High torque Dc Motor, OPTION with Magnet Encoder and Planetary Gearhead
-
38zyn small size big torque Brushed 12vdc dc motor 35w 40w 24vdc option
-
Customized Special Worm Shaft Dc Motor Brushed with Replaceable Brushes
Product Details
| Brand Name | Smart Automation | Place of Origin | Jiangsu, China | |
| Model Number | 76ZYT | |||
| Certification | CE, ROHS | Torque | 0.35N.m | |
| Usage | Car, Electric Bicycle, Fan, Home Appliance, Other | Construction | Permanent Magnet | |
| Efficiency | IE 1 | Protect Feature | Drip-proof | |
| Voltage(V) | 12v, 19v 24v | Output Power | 300w | |
| Continuous Current(A) | customed | Speed(RPM) | no load 7000rpm | |
| Commutation | Brush |
Product Description
Permanent Magnet Brush DC Motor
Motor Specifications
Shaft materials 3Cr13, HRC 36~40
High quality ball bearing
Hard ferrite magnet, 2- poles
Protection class IP 54
Insulation class: F, operating temperature range:-40℃~+140℃
CE and ROHS certified
Options
Customized voltage, winding, shaft, mounting, and lead configurations
EMI/RFI suppression circuit; Thermal protection, high temperature Class H insulation
