Slocable PPO Plastic Houdings Solid Copper PV Solar T Y Branch Connector
- T/T Credit Card
You May Like
-
Slocable 2 3 4 Strings IP67 Waterproof Solar Branch Connector
-
1000V/1500V New Product CN40 DC Connector Panel Mount
-
1000V 50A High Current CN40 Connector Making Machine Solar Connector
-
High Quality 1000V IP68 3 to 1 CN40 MP4 Solar PV Connector
-
1000V 30A 50A 2 to 1 CN40 T Branch Connector
-
MCX PV Power System Female and Male Solar Connector CN40
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | BC40 Branch Connector | Type | MMCX | |
Product Description
Slocable PPO Plastic Houdings Solid Copper PV Solar T Y Branch Connector
Detail Information and Advantages of Solar Branch
|
Technical Data of Solar Branch
(We also produce 3 to1, 4 to 1, 5 to 1 type Branch Connector,
you can consult me directly if necessary)
Technical Data of Solar Branch | |
Rated Current : 50A (2.5-6.0mm²) | Degree of Protection: IP2*/IP67 |
Rated Voltage: 1000V | Flame Class : UL94-V0 |
Test Voltage: 8000V (50Hz,1min) | Safety Class: II |
Overvoltage Category: CATIII | Temperature Range: -40℃ ~ +85℃ |
Contact Resistance: <0.5mΩ | Insertion Force/Withdrawal Force: ≤50N/≥50N |
Contact Material: Copper, Tin Plated | Insulation Material : PPO |

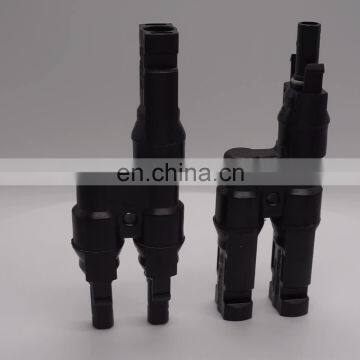

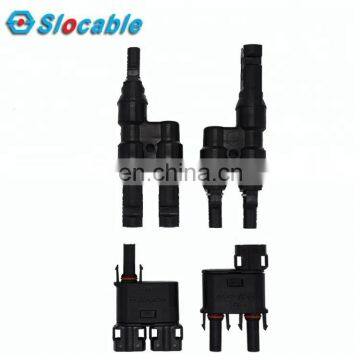

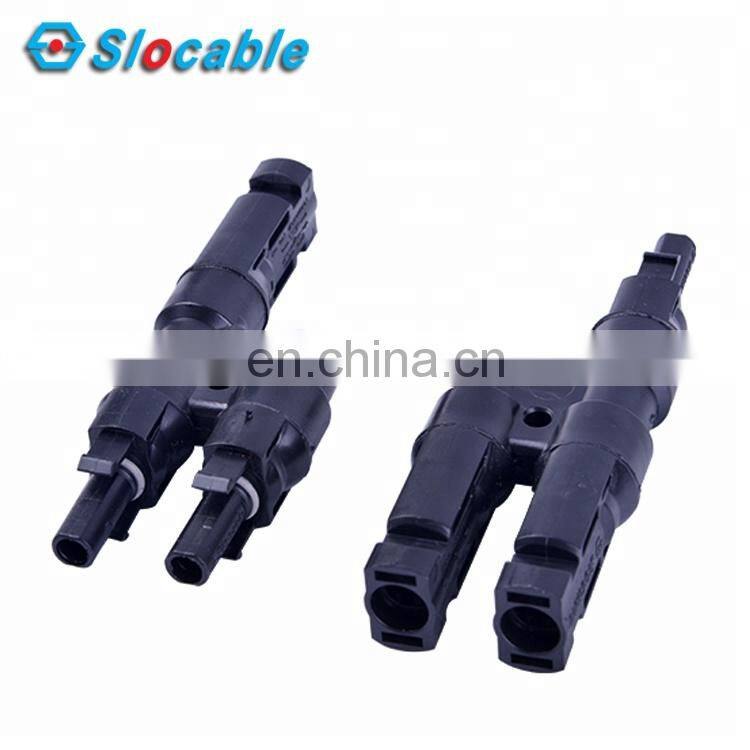

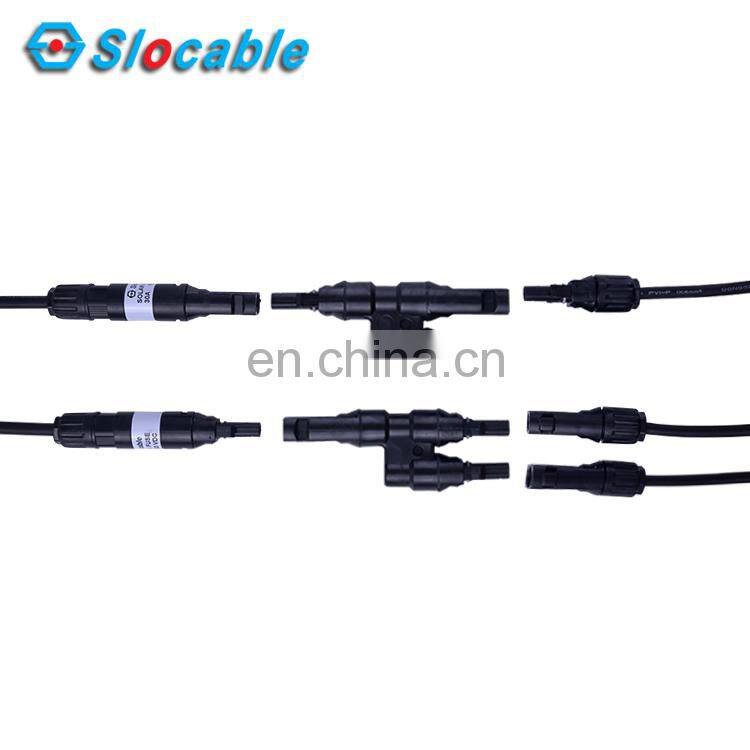

Pictures of Solar Branch

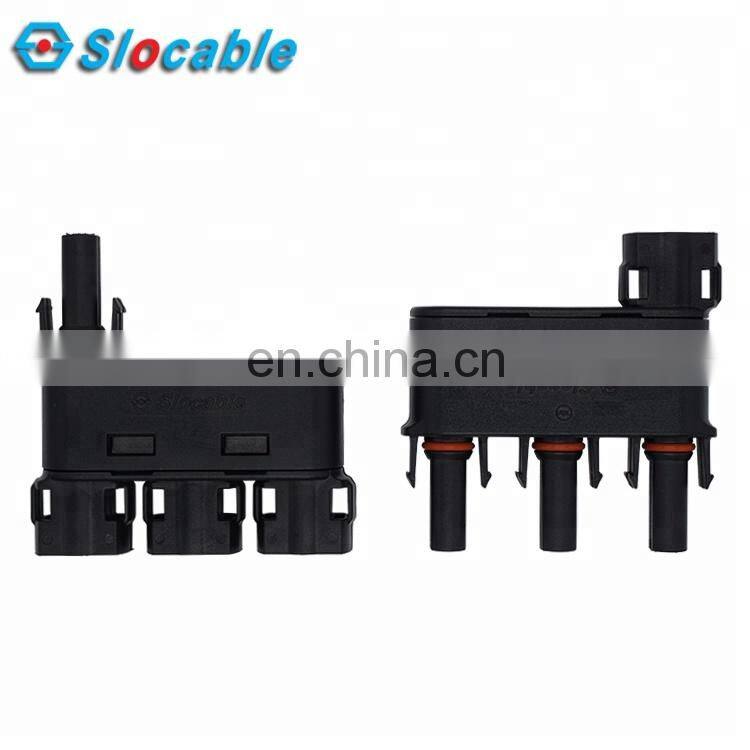

Click the following picture to get 3 in 1 Branch Conenctor
Click the following picture to get more products:
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors, PV Fuse Holder, Circuit breakers and other solar relative products. We're the Manufacturer with more than 12 years experience.
1) All raw materials we selected are the highest quality.
2) Professional and skilful workers care every details in handling the producing.
3) Quality Control Department is specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How could I get the Sample?
We are honored to offer you samples, whihc is free, but you will need to pay the international courier freight.
If you have a courier account or forwarder in China, you can send your courier to collect samples.
Q6: How long is the Delivery Time?
1) For Sample: 1-3 Days ;
2) For small orders: 3-10 Days;
3) For mass orders: 10-18 Days.
It is better to communicate with us if you are interested to place an order.
IF any inquiry, please do not hesitate to contact me!
