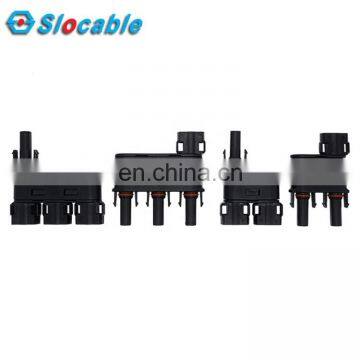

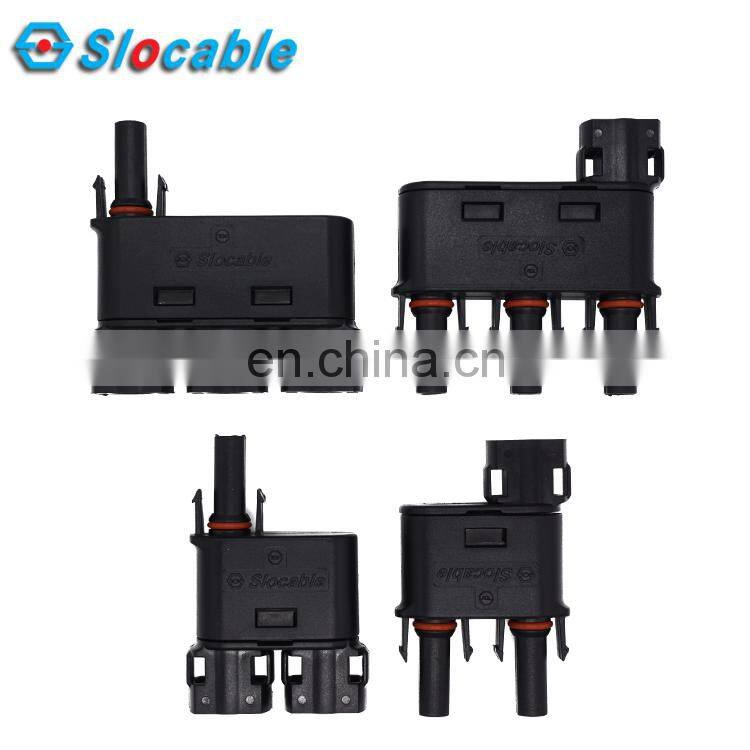

2to1 3to1 4to1 50A PPO Insulation Copper Tinned IP68 Solar Branch PV Connector 2 Way
- T/T Credit Card
You May Like
-
1000V 1500V 1800V Slocable CN40 Solar Wire Connector
-
Slocable Waterproof Power Solar PV Connector c4 Solar Connectors Adaptador
-
Slocable 1000V 1500V Wall Mounted Good Solar Panel Connect
-
Slocable Copper Contact Good Solar Panel Connector
-
Other Solar Energy Related Products 1000V 1500V PPO Solar Inverter Connector
-
Slocable Cheap Price High Quality WaterProof Copper Bar Terminal PV Solar Wire Connector
Product Details
| Brand Name | Slocable | Place of Origin | Guangdong, China | |
| Model Number | BC40/50/60 Branch connector | Type | MCX | |
| Application | Power | Gender | Female |
Product Description
2to1 3to1 4to1 50A PPO Insulation Copper Tinned IP68 Solar Branch PV Connector 2 Way

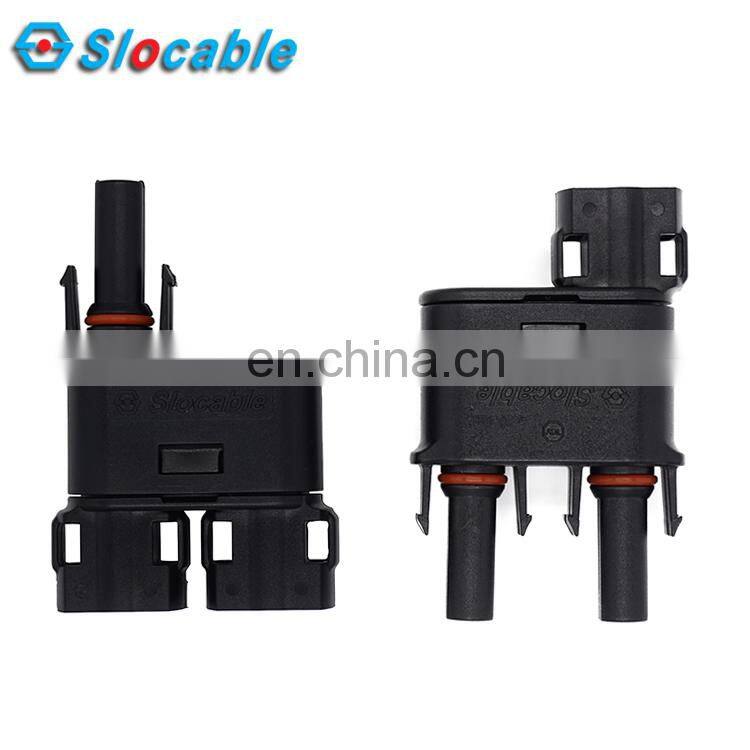

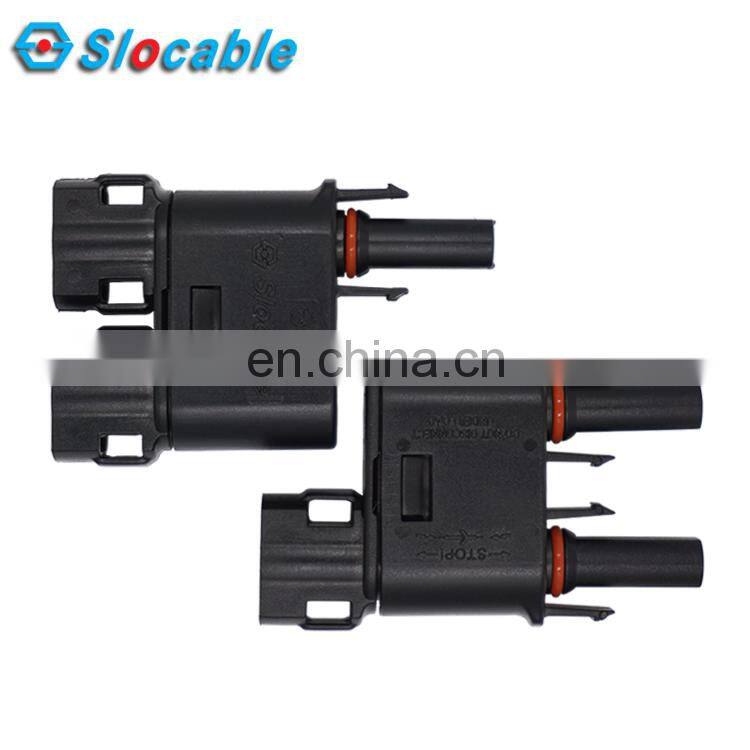

T and Y Solar Branch Connector PV Solar Branch Connector
Description:
·Simple on-site processing
·Mating safety provided by keyed housings
·Mutiple plugging and unplugging cycles
·Accomodates PV cable with deferent insulation diamaters
·High Voltage and Current carrying capacity
·TUV and CE approved
·Competitive price
Technicale Data:
| Insulation Material: | PPO | Contact material: | Copper,Tin plated |
Rated current: | 40A 50A | Insertion force: | Max. 50N |
| Rated Voltage: | 1000V/1500V DC | Withdrawal force: | Min. 50N |
| Test voltage: | 8kV(50Hz,1min) | Ambient temperature range: | -40℃~+90℃ |
| Contact resistance: | <5mΩ | Flame class: | UL94-V0 |
| Waterproof protection: | IP68 | Connecting system: | Crimping connection |
| Overvoltage degree: | CATIII/2 | Suitable cable cross section: | 2.5/4/6/10mm2, 14/12/10/8AWG |
Our Projects :
Q1: What is your company's Main Products ? You are the Manufacturer or the trader ?
Solar Cables, Solar Connectors PV Fuse Holder,Circuit breakers and other solar relative products.We're the Manufacturer with more than 12 years experience.
Q2: How can I get the Quotation of the products ?
1)All raw material we selected the high quality one.
2)Professional & Skilful workers care every details in handling the producing.
3)Quality Control Department specially responsible for quality checking in each process.
Q4: Do you provide OEM Project Service?
OEM & ODM order is warmly welcome and we have fully successful experience in OEM projects.
What's more, our R&D team will give you the professional suggestions.
Q5: How Could I get the Sample?
We are honored to offer you samples,Samples is free provided,but need pay the courier freight.
If you have a courier account, you can send your courier to collect samples.
Q6: How long is the delivery time?
1) For Sample: 1-3 Days ;
2) For small Orders: 3-10 Days;
3) For mass Orders: 10-18 Days.
If any inquiry, feel free to let me know !
